IP67 Momentary Lever Micro Switch Leads Wire Left Side

Waterproof micro switch KW2-1C-202-B1 is a lever micro switch with wires, which can reach IP67 level waterproof and dustproof protection.  The length of the lever is 15.5mm, and the dimension the posts is 2.6*5mm. This switch has a sensitive operation and can control the circuit accurately. There are also a wide range of levers, posts, and wire types for your customization.



Product Series: KW2 Waterproof Micro Switch

Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool

IP67 Momentary Lever Micro Switch Leads Wire Left Side

Waterproof micro switch KW2-1C-202-B1 is a lever micro switch with wires, which can reach IP67 level waterproof and dustproof protection.  The length of the lever is 15.5mm, and the dimension the posts is 2.6*5mm. This switch has a sensitive operation and can control the circuit accurately. There are also a wide range of levers, posts, and wire types for your customization.



Product Series: KW2 Waterproof Micro Switch

Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool

IP67 Momentary Lever Micro Switch Leads Wire Left Side

Waterproof micro switch KW2-1C-202-B1 is a lever micro switch with wires, which can reach IP67 level waterproof and dustproof protection.  The length of the lever is 15.5mm, and the dimension the posts is 2.6*5mm. This switch has a sensitive operation and can control the circuit accurately. There are also a wide range of levers, posts, and wire types for your customization.



Product Series: KW2 Waterproof Micro Switch

Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool

IP67 Momentary Lever Micro Switch Leads Wire Left Side

Waterproof micro switch KW2-1C-202-B1 is a lever micro switch with wires, which can reach IP67 level waterproof and dustproof protection.  The length of the lever is 15.5mm, and the dimension the posts is 2.6*5mm. This switch has a sensitive operation and can control the circuit accurately. There are also a wide range of levers, posts, and wire types for your customization.



Product Series: KW2 Waterproof Micro Switch

Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool

PRODUCT DETAIL

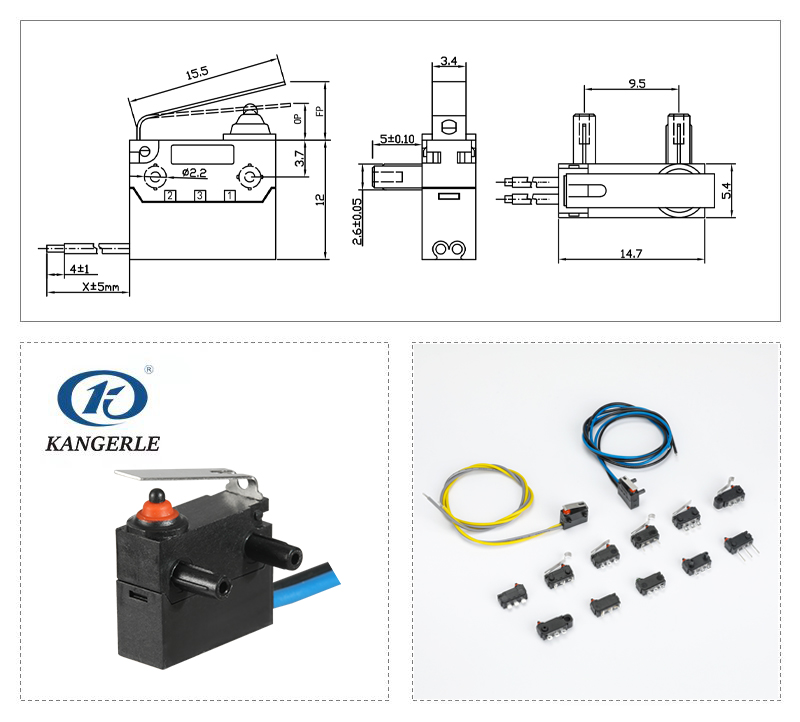

IP67 Momentary Lever Micro Switch Leads Wire Left Side插图

Chinakel KW2 Waterproof Micro Switch Feature

Rated Load 0.1A 125/250V AC; 3A 12V DC
Temperature 40T85
Operating Force ≤150gf(regular)
Circuit SPDT/SPST NO/SPST NC
Contact Resistance  ≤500mΩ
Insulation Resistance ≥100MΩ(DC500V)
Withstand Voltage ≥1500VAC
Protection Level IP67(wiring)
Electrical Life ≥100,000 cycles
Mechanical Life ≥500,000cycles
Certification CQC/CB
