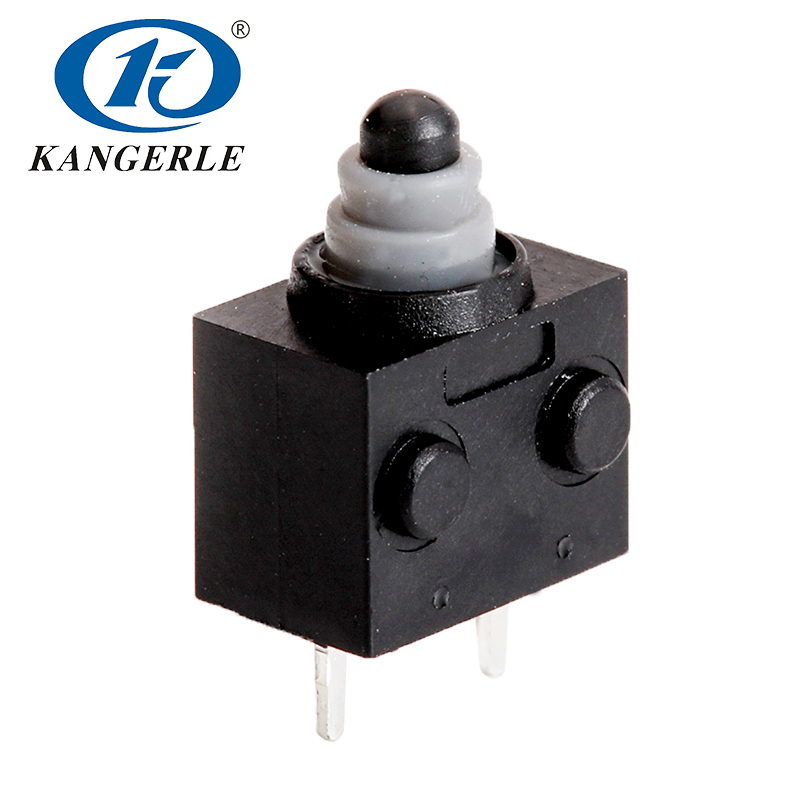

Sealed Subminiature Micro Switch 12 Volt PCB Terminals

KW1-1C-2C is a 2 pin micro switch with waterproof and dustproof function. It can be mounted directly into printed circuit board with its PCB terminals. Moreover, this switch has two contact forms for your selection: SPST-NC and SPST-NO. With its ultra size and high reliability, it can be easily integrated into compact designs without taking up too much space.

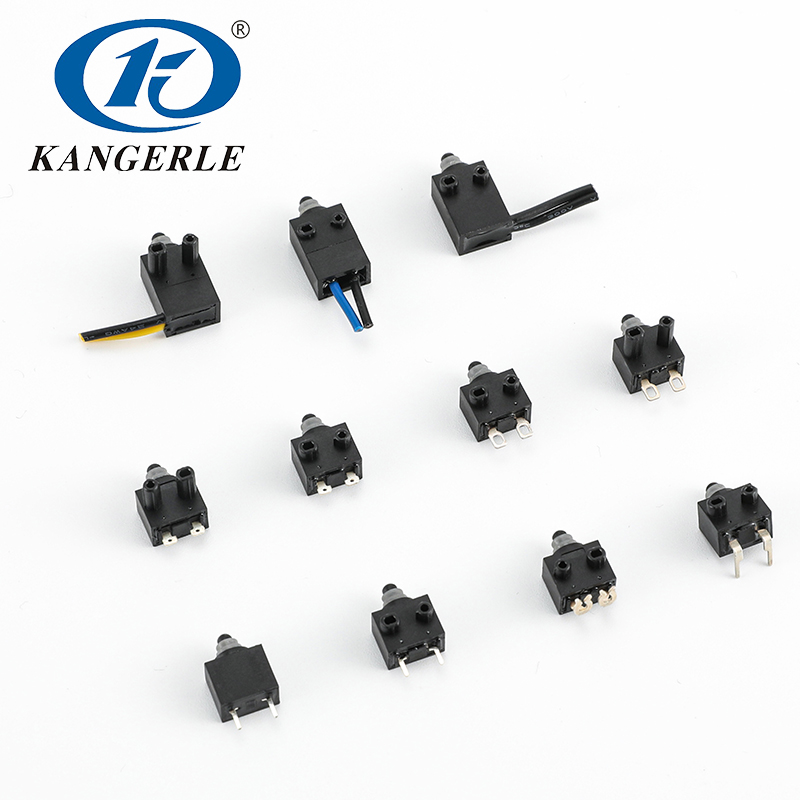

Product Series: KW1 Waterproof Micro Switch
Application: car door lock, parcel locker, E-Bike brake, electric scooter brake, sweeping robot, vacuum cleaner, electric toothbrush, car discharge socket, shared helmets, etc.

Sealed Subminiature Micro Switch 12 Volt PCB Terminals

KW1-1C-2C is a 2 pin micro switch with waterproof and dustproof function. It can be mounted directly into printed circuit board with its PCB terminals. Moreover, this switch has two contact forms for your selection: SPST-NC and SPST-NO. With its ultra size and high reliability, it can be easily integrated into compact designs without taking up too much space.

Product Series: KW1 Waterproof Micro Switch
Application: car door lock, parcel locker, E-Bike brake, electric scooter brake, sweeping robot, vacuum cleaner, electric toothbrush, car discharge socket, shared helmets, etc.

Sealed Subminiature Micro Switch 12 Volt PCB Terminals

KW1-1C-2C is a 2 pin micro switch with waterproof and dustproof function. It can be mounted directly into printed circuit board with its PCB terminals. Moreover, this switch has two contact forms for your selection: SPST-NC and SPST-NO. With its ultra size and high reliability, it can be easily integrated into compact designs without taking up too much space.

Product Series: KW1 Waterproof Micro Switch
Application: car door lock, parcel locker, E-Bike brake, electric scooter brake, sweeping robot, vacuum cleaner, electric toothbrush, car discharge socket, shared helmets, etc.

Sealed Subminiature Micro Switch 12 Volt PCB Terminals

KW1-1C-2C is a 2 pin micro switch with waterproof and dustproof function. It can be mounted directly into printed circuit board with its PCB terminals. Moreover, this switch has two contact forms for your selection: SPST-NC and SPST-NO. With its ultra size and high reliability, it can be easily integrated into compact designs without taking up too much space.

Product Series: KW1 Waterproof Micro Switch
Application: car door lock, parcel locker, E-Bike brake, electric scooter brake, sweeping robot, vacuum cleaner, electric toothbrush, car discharge socket, shared helmets, etc.

PRODUCT DETAIL

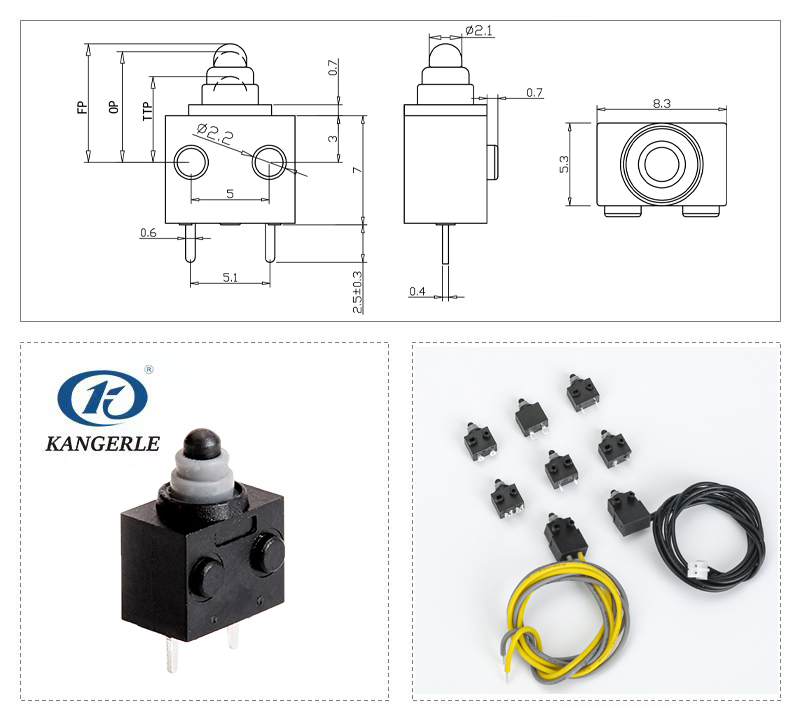

Sealed Subminiature Micro Switch 12 Volt PCB Terminals插图

Rated Load DC12V 0.1A
Temperature -10~60℃
Operating Force 120±30gf (regular)/ 200±30gf
Circuit SPST NO/SPST NC
Contact Resistance ≤500mΩ
Insulation Resistance ≥100MΩ(DC500V)
Withstand Voltage ≥100VAC
Protection Level IP67(wiring)
Electrical Life ≥100,000 cycles
Mechanical Life ≥300,000cycles
Certification RoHS
