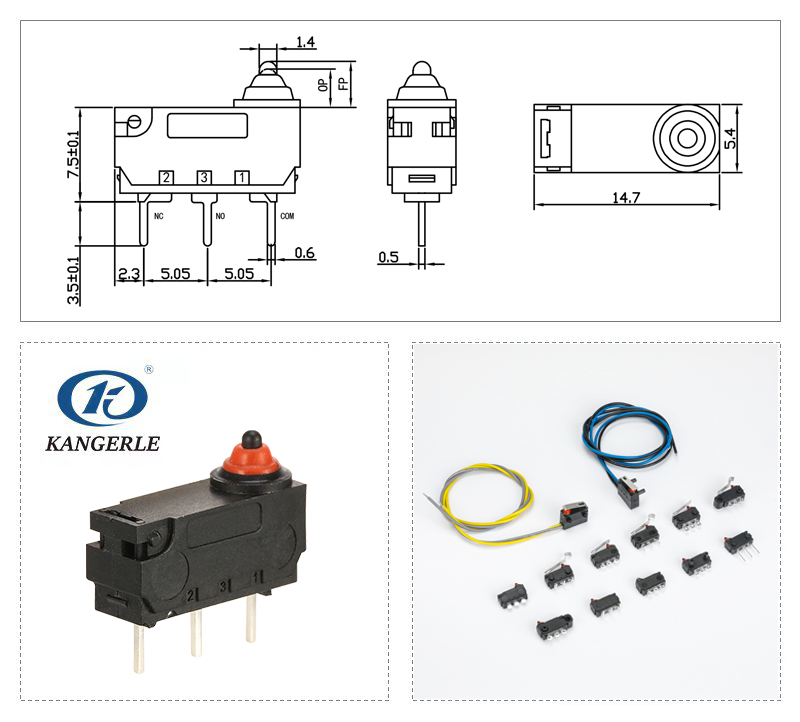

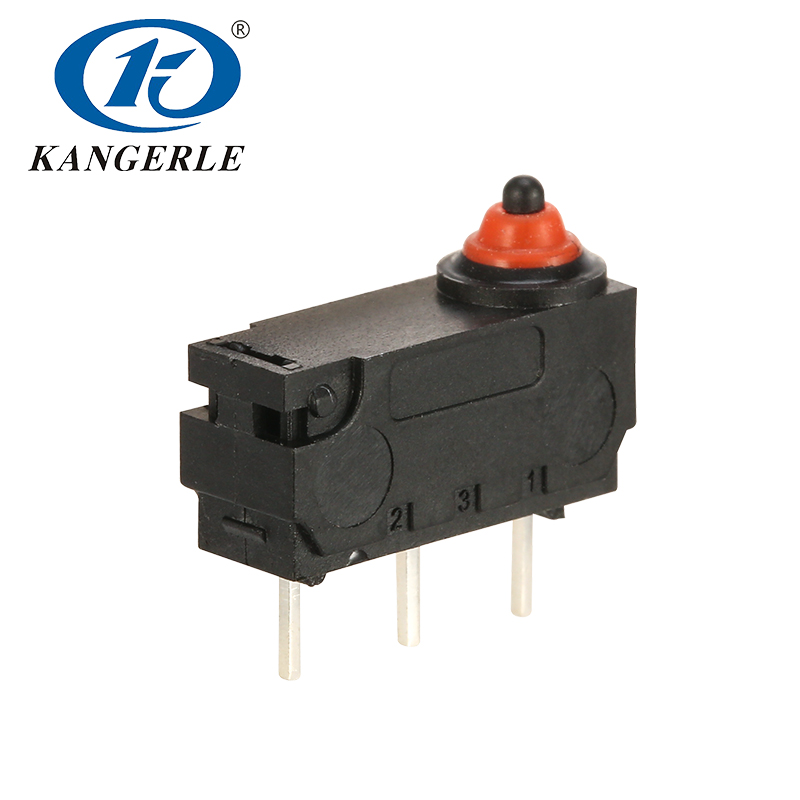

KW2-1A-D-B is a 12 volt waterproof micro switch. With 3 short PCB terminals (0.6×3.5), it can be mounted onto printed circuit boards directly. Inside the switch, there will be a contact mechanism that opens and closes to control the electrical circuit. To be stably sealed by superior rubber ring and epoxy resin, this miniature micro switch can be used in wet or dusty places.
Product Series: KW2 Waterproof Micro Switch
Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool
KW2-1A-D-B is a 12 volt waterproof micro switch. With 3 short PCB terminals (0.6×3.5), it can be mounted onto printed circuit boards directly. Inside the switch, there will be a contact mechanism that opens and closes to control the electrical circuit. To be stably sealed by superior rubber ring and epoxy resin, this miniature micro switch can be used in wet or dusty places.
Product Series: KW2 Waterproof Micro Switch
Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool
KW2-1A-D-B is a 12 volt waterproof micro switch. With 3 short PCB terminals (0.6×3.5), it can be mounted onto printed circuit boards directly. Inside the switch, there will be a contact mechanism that opens and closes to control the electrical circuit. To be stably sealed by superior rubber ring and epoxy resin, this miniature micro switch can be used in wet or dusty places.
Product Series: KW2 Waterproof Micro Switch
Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool
KW2-1A-D-B is a 12 volt waterproof micro switch. With 3 short PCB terminals (0.6×3.5), it can be mounted onto printed circuit boards directly. Inside the switch, there will be a contact mechanism that opens and closes to control the electrical circuit. To be stably sealed by superior rubber ring and epoxy resin, this miniature micro switch can be used in wet or dusty places.
Product Series: KW2 Waterproof Micro Switch
Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool
| Rated Load | 0.1A 125/250V AC; 3A 12V DC |
| Temperature | 40T85 |
| Operating Force | ≤150gf（regular） |
| Circuit | SPDT/SPST NO/SPST NC |
| Contact Resistance | ≤500mΩ |
| Insulation Resistance | ≥100MΩ（DC500V） |
| Withstand Voltage | ≥1500VAC |
| Protection Level | IP67(wiring) |
| Electrical Life | ≥100,000 cycles |
| Mechanical Life | ≥500,000cycles |
| Certification | CQC/CB |
