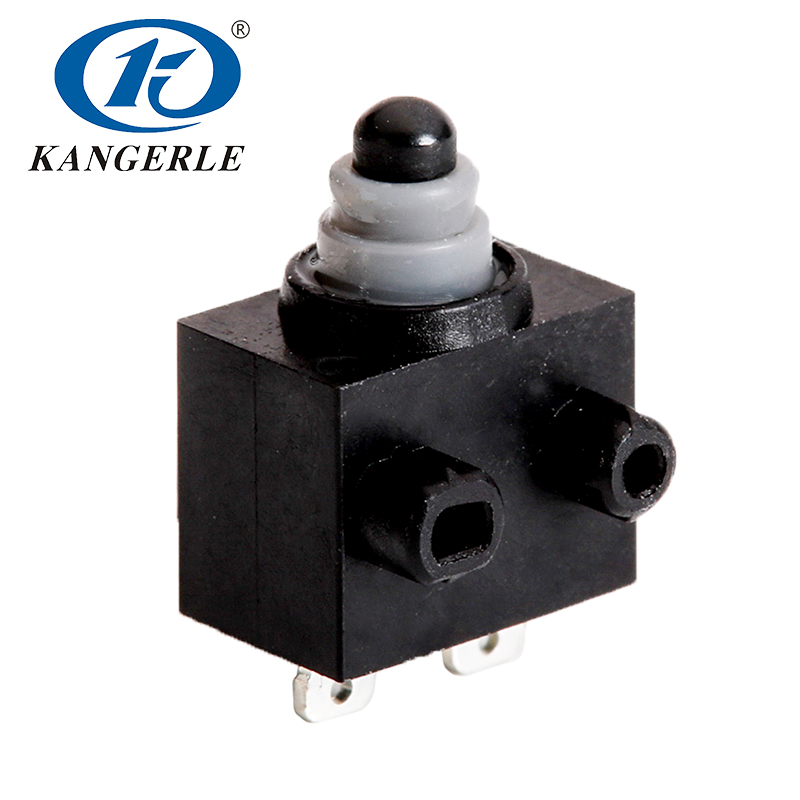

Subminiature Waterproof Mirco Switch Normally Open Type

KW1-1C-5B is a normally open sealed micro switch. When you press the button, it connects the circuit, allowing current to flow through. When release the button, the circuit will be disconnected. With a miniature dimension(5.3×8.3×7.0mm), this switch is very suitable for some compact designs. It is also equipped with different types of terminals, such as solder terminals, press-fit terminals, PCB terminals. Customization is available.

Product Series: KW1 Waterproof Micro Switch
Application: hood latch, parcel locker, coffee machine, electric scooter brake, car door lock, sweeping robot, vacuum cleaner, electric toothbrush, car discharge socket, shared helmets, etc.

Subminiature Waterproof Mirco Switch Normally Open Type

KW1-1C-5B is a normally open sealed micro switch. When you press the button, it connects the circuit, allowing current to flow through. When release the button, the circuit will be disconnected. With a miniature dimension(5.3×8.3×7.0mm), this switch is very suitable for some compact designs. It is also equipped with different types of terminals, such as solder terminals, press-fit terminals, PCB terminals. Customization is available.

Product Series: KW1 Waterproof Micro Switch
Application: hood latch, parcel locker, coffee machine, electric scooter brake, car door lock, sweeping robot, vacuum cleaner, electric toothbrush, car discharge socket, shared helmets, etc.

Subminiature Waterproof Mirco Switch Normally Open Type

KW1-1C-5B is a normally open sealed micro switch. When you press the button, it connects the circuit, allowing current to flow through. When release the button, the circuit will be disconnected. With a miniature dimension(5.3×8.3×7.0mm), this switch is very suitable for some compact designs. It is also equipped with different types of terminals, such as solder terminals, press-fit terminals, PCB terminals. Customization is available.

Product Series: KW1 Waterproof Micro Switch
Application: hood latch, parcel locker, coffee machine, electric scooter brake, car door lock, sweeping robot, vacuum cleaner, electric toothbrush, car discharge socket, shared helmets, etc.

Subminiature Waterproof Mirco Switch Normally Open Type

KW1-1C-5B is a normally open sealed micro switch. When you press the button, it connects the circuit, allowing current to flow through. When release the button, the circuit will be disconnected. With a miniature dimension(5.3×8.3×7.0mm), this switch is very suitable for some compact designs. It is also equipped with different types of terminals, such as solder terminals, press-fit terminals, PCB terminals. Customization is available.

Product Series: KW1 Waterproof Micro Switch
Application: hood latch, parcel locker, coffee machine, electric scooter brake, car door lock, sweeping robot, vacuum cleaner, electric toothbrush, car discharge socket, shared helmets, etc.

PRODUCT DETAIL

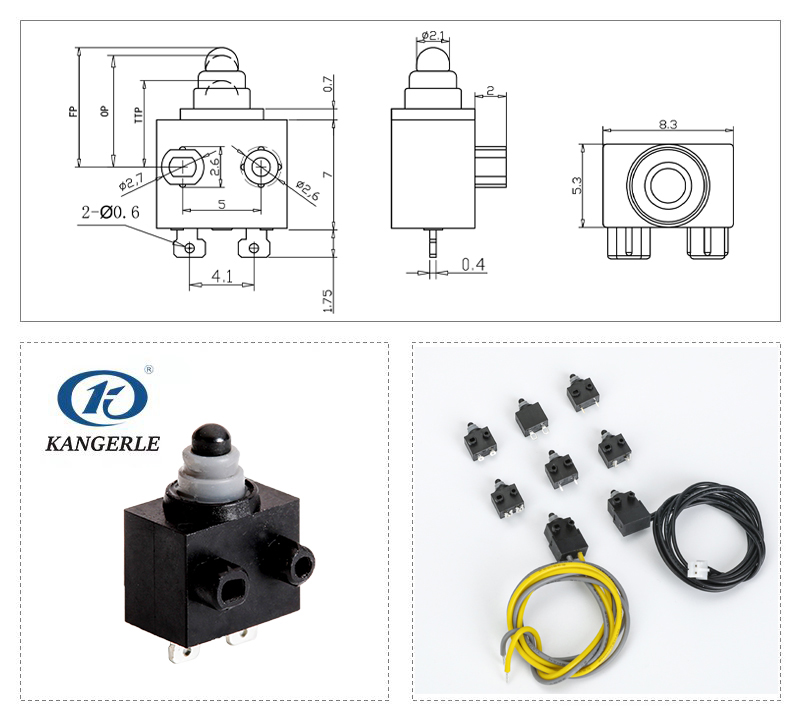

Subminiature Waterproof Mirco Switch Normally Open Type插图

Rated Load DC12V 0.1A
Temperature -10~60℃
Operating Force 120±30gf (regular)/ 200±30gf
Circuit SPST NO/SPST NC
Contact Resistance ≤500mΩ
Insulation Resistance ≥100MΩ(DC500V)
Withstand Voltage ≥100VAC
Protection Level IP67(wiring)
Electrical Life ≥100,000 cycles
Mechanical Life ≥300,000cycles
Certification RoHS
