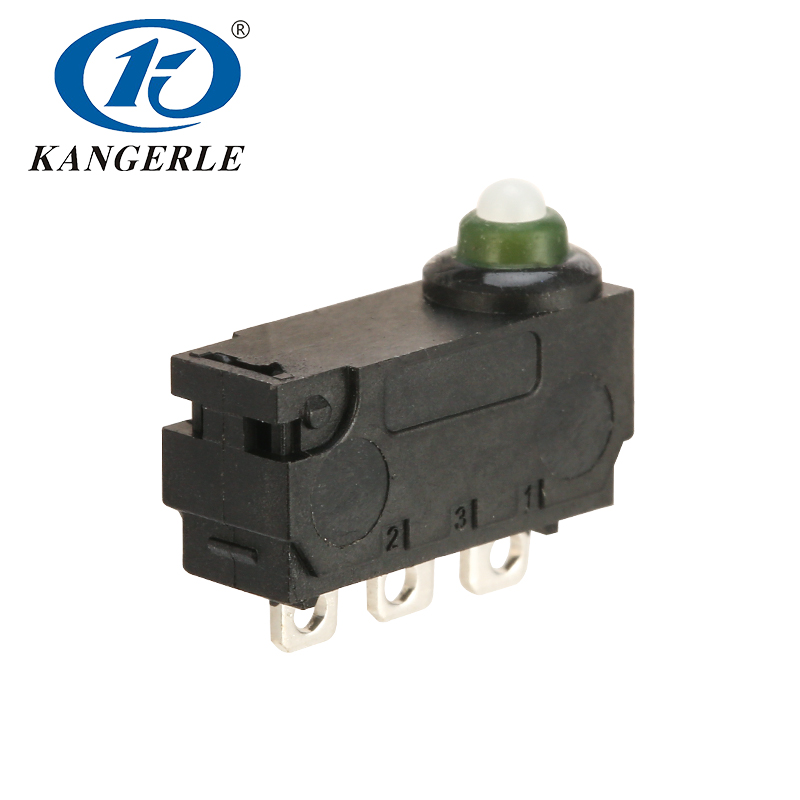

Waterproof Push Button ON OFF Micro Switch No Lever

KW2-1A-B-B-A is a miniature waterproof push button micro switch, which has 3 solder terminals. With superior rubber ring and epoxlde resin, it has strong sealing performance. After wiring, the switch can achieve IP67 level waterproof and dustproof effect. Moreover, this hermetic sealed micro switch is also equipped with different types of terminals and levers for you to choose from.



Product Series: KW2 Waterproof Micro Switch

Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool

Waterproof Push Button ON OFF Micro Switch No Lever

KW2-1A-B-B-A is a miniature waterproof push button micro switch, which has 3 solder terminals. With superior rubber ring and epoxlde resin, it has strong sealing performance. After wiring, the switch can achieve IP67 level waterproof and dustproof effect. Moreover, this hermetic sealed micro switch is also equipped with different types of terminals and levers for you to choose from.



Product Series: KW2 Waterproof Micro Switch

Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool

Waterproof Push Button ON OFF Micro Switch No Lever

KW2-1A-B-B-A is a miniature waterproof push button micro switch, which has 3 solder terminals. With superior rubber ring and epoxlde resin, it has strong sealing performance. After wiring, the switch can achieve IP67 level waterproof and dustproof effect. Moreover, this hermetic sealed micro switch is also equipped with different types of terminals and levers for you to choose from.



Product Series: KW2 Waterproof Micro Switch

Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool

Waterproof Push Button ON OFF Micro Switch No Lever

KW2-1A-B-B-A is a miniature waterproof push button micro switch, which has 3 solder terminals. With superior rubber ring and epoxlde resin, it has strong sealing performance. After wiring, the switch can achieve IP67 level waterproof and dustproof effect. Moreover, this hermetic sealed micro switch is also equipped with different types of terminals and levers for you to choose from.



Product Series: KW2 Waterproof Micro Switch

Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool

PRODUCT DETAIL

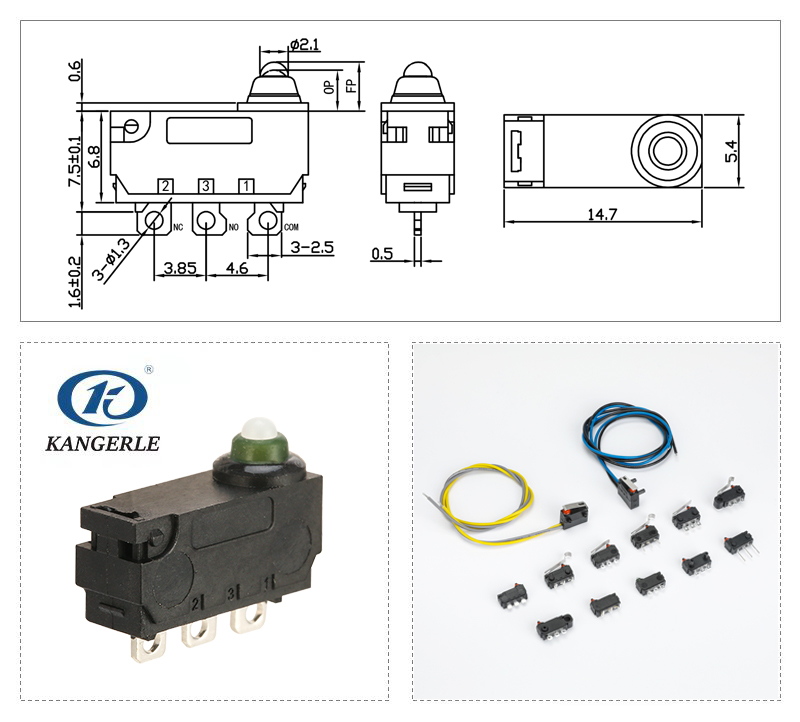

Waterproof Push Button ON OFF Micro Switch No Lever插图

Chinakel KW2 Waterproof Micro Switch Feature

Rated Load 0.1A 125/250V AC; 3A 12V DC
Temperature 40T85
Operating Force ≤150gf(regular)
Circuit SPDT/SPST NO/SPST NC
Contact Resistance ≤50mΩ
Insulation Resistance ≥100MΩ(DC500V)
Withstand Voltage ≥1500VAC
Protection Level IP67(wiring)
Electrical Life ≥100,000 cycles
Mechanical Life ≥500,000cycles
Certification CQC/CB
