SPDT Micro Switch IP67 Waterproof 3A 12V DC

Waterproof micro switch KW2-1A-H-B has 3 straight terminals (without hole), which is a SPDT micro switch. The dimension of this miniature switch is  14.7*6.8*5.4mm, and it is commonly used in various applications where a small, precise switch is needed. With superior waterproof and dustproof maretials, the switch is sealed to protect it from moisture and dust ingress, making it suitable for use in environments where exposure to water is a concern.



Product Series: KW2 Waterproof Micro Switch

Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool

SPDT Micro Switch IP67 Waterproof 3A 12V DC

Waterproof micro switch KW2-1A-H-B has 3 straight terminals (without hole), which is a SPDT micro switch. The dimension of this miniature switch is  14.7*6.8*5.4mm, and it is commonly used in various applications where a small, precise switch is needed. With superior waterproof and dustproof maretials, the switch is sealed to protect it from moisture and dust ingress, making it suitable for use in environments where exposure to water is a concern.



Product Series: KW2 Waterproof Micro Switch

Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool

SPDT Micro Switch IP67 Waterproof 3A 12V DC

Waterproof micro switch KW2-1A-H-B has 3 straight terminals (without hole), which is a SPDT micro switch. The dimension of this miniature switch is  14.7*6.8*5.4mm, and it is commonly used in various applications where a small, precise switch is needed. With superior waterproof and dustproof maretials, the switch is sealed to protect it from moisture and dust ingress, making it suitable for use in environments where exposure to water is a concern.



Product Series: KW2 Waterproof Micro Switch

Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool

SPDT Micro Switch IP67 Waterproof 3A 12V DC

Waterproof micro switch KW2-1A-H-B has 3 straight terminals (without hole), which is a SPDT micro switch. The dimension of this miniature switch is  14.7*6.8*5.4mm, and it is commonly used in various applications where a small, precise switch is needed. With superior waterproof and dustproof maretials, the switch is sealed to protect it from moisture and dust ingress, making it suitable for use in environments where exposure to water is a concern.



Product Series: KW2 Waterproof Micro Switch

Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool

PRODUCT DETAIL

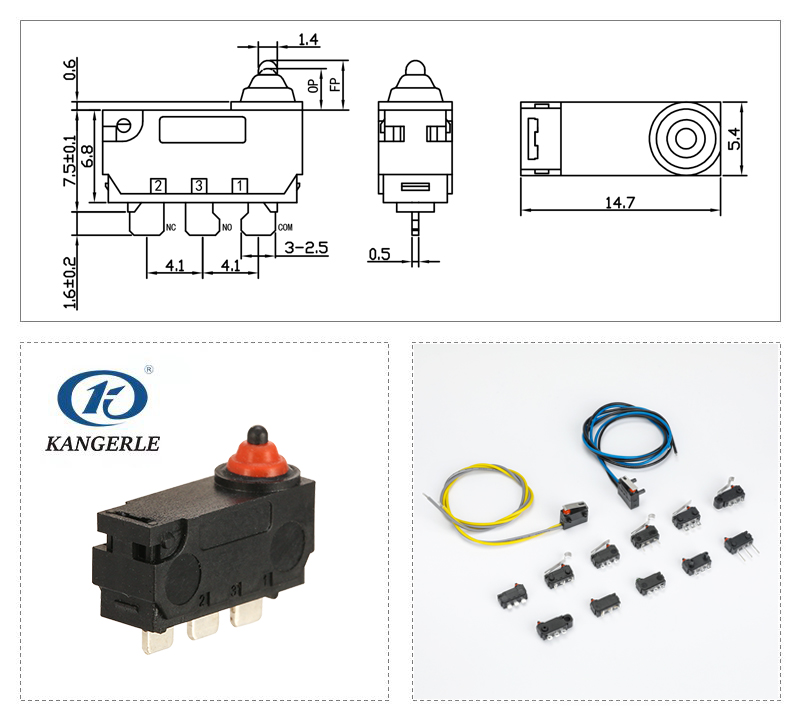

SPDT Micro Switch IP67 Waterproof 3A 12V DC插图

Chinakel KW2 Waterproof Micro Switch Feature

Rated Load 0.1A 125/250V AC; 3A 12V DC
Temperature 40T85
Operating Force ≤150gf(regular)
Circuit SPDT/SPST NO/SPST NC
Contact Resistance  ≤500mΩ
Insulation Resistance ≥100MΩ(DC500V)
Withstand Voltage ≥1500VAC
Protection Level IP67(wiring)
Electrical Life ≥100,000 cycles
Mechanical Life ≥500,000cycles
Certification CQC/CB
