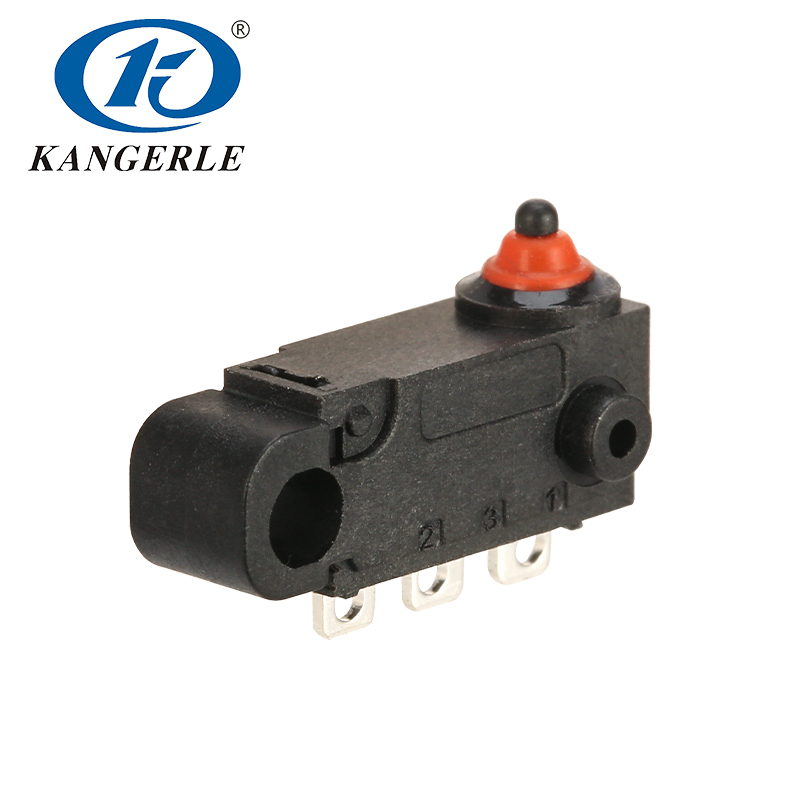

Waterproof Micro Switch 12V Molds with Screw Fixed Hole

KW2-1A-B-M1 is a 12V waterproof micro switch equipped with a screw fixed hole. The force required to actuate the switch is usually low, making it sensitive to even slight pressure or movement. Using screws to install provides a secure and stable attachment to the device. This series of switches also have a wide range of operating travel and also are equipped with different types of wires, posts, terminals, and levers.



Product Series: KW2 Waterproof Micro Switch

Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool

Waterproof Micro Switch 12V Molds with Screw Fixed Hole

KW2-1A-B-M1 is a 12V waterproof micro switch equipped with a screw fixed hole. The force required to actuate the switch is usually low, making it sensitive to even slight pressure or movement. Using screws to install provides a secure and stable attachment to the device. This series of switches also have a wide range of operating travel and also are equipped with different types of wires, posts, terminals, and levers.



Product Series: KW2 Waterproof Micro Switch

Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool

Waterproof Micro Switch 12V Molds with Screw Fixed Hole

KW2-1A-B-M1 is a 12V waterproof micro switch equipped with a screw fixed hole. The force required to actuate the switch is usually low, making it sensitive to even slight pressure or movement. Using screws to install provides a secure and stable attachment to the device. This series of switches also have a wide range of operating travel and also are equipped with different types of wires, posts, terminals, and levers.



Product Series: KW2 Waterproof Micro Switch

Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool

Waterproof Micro Switch 12V Molds with Screw Fixed Hole

KW2-1A-B-M1 is a 12V waterproof micro switch equipped with a screw fixed hole. The force required to actuate the switch is usually low, making it sensitive to even slight pressure or movement. Using screws to install provides a secure and stable attachment to the device. This series of switches also have a wide range of operating travel and also are equipped with different types of wires, posts, terminals, and levers.



Product Series: KW2 Waterproof Micro Switch

Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool

PRODUCT DETAIL

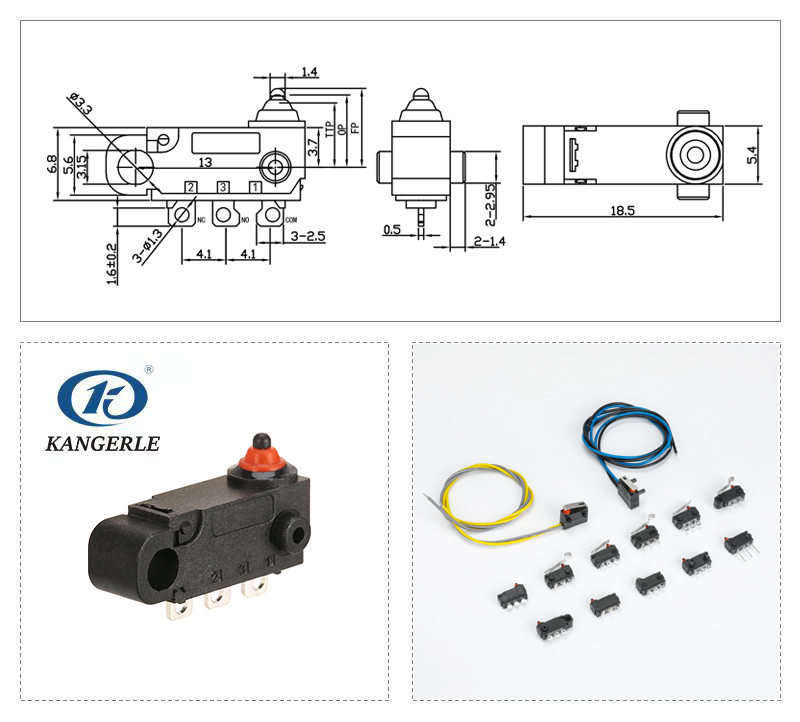

Waterproof Micro Switch 12V Molds with Screw Fixed Hole插图

Chinakel KW2 Waterproof Micro Switch Feature

Rated Load 0.1A 125/250V AC; 3A 12V DC
Temperature 40T85
Operating Force ≤150gf(regular)
Circuit SPDT/SPST NO/SPST NC
Contact Resistance ≤500mΩ
Insulation Resistance ≥100MΩ(DC500V)
Withstand Voltage ≥1500VAC
Protection Level IP67(wiring)
Electrical Life ≥100,000 cycles
Mechanical Life ≥500,000cycles
Certification CQC/CB
