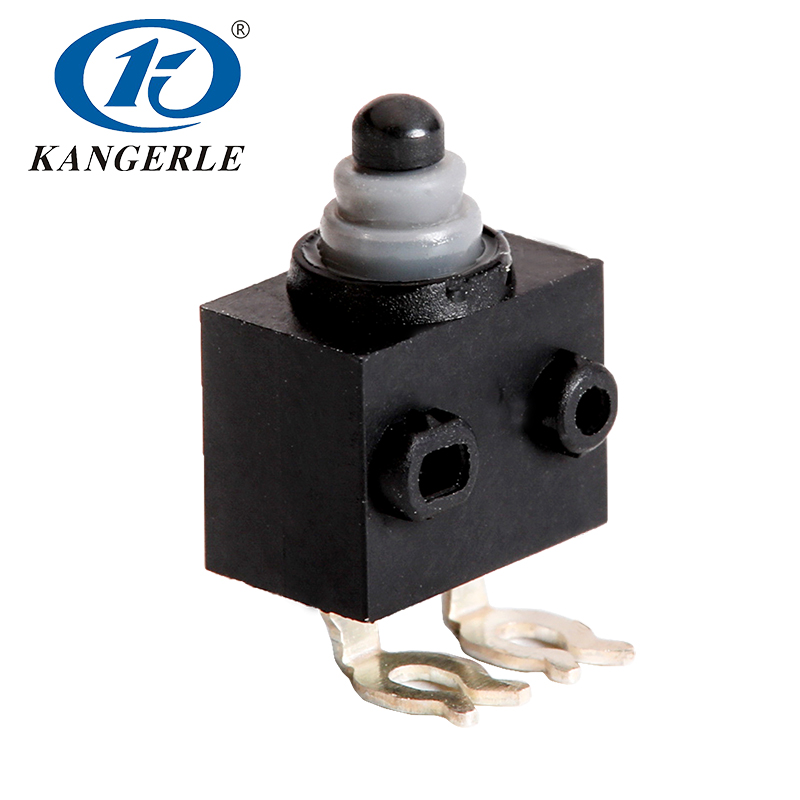

Pin Plunger Micro Switch IP67 with Press-fit Terminals

Waterproof micro switch KW1-1C-5E delivers quiet operation due to its special design. As a sealed switch, it can conform to IP67 (after wiring), which is ideal for use in dusty and wet places. This switch is also equipped with posts, and it is suitable for appliactions where a secure and reliable electrical connection is required. For this type, please ensure that the press-fit terminals is in a right way to be inserted.

Product Series: KW1 Waterproof Micro Switch
Application: parcel locker, E-Bike brake, electric scooter brake, car door lock, sweeping robot, vacuum cleaner, electric toothbrush, car discharge socket, shared helmets, etc.

Pin Plunger Micro Switch IP67 with Press-fit Terminals

Waterproof micro switch KW1-1C-5E delivers quiet operation due to its special design. As a sealed switch, it can conform to IP67 (after wiring), which is ideal for use in dusty and wet places. This switch is also equipped with posts, and it is suitable for appliactions where a secure and reliable electrical connection is required. For this type, please ensure that the press-fit terminals is in a right way to be inserted.

Product Series: KW1 Waterproof Micro Switch
Application: parcel locker, E-Bike brake, electric scooter brake, car door lock, sweeping robot, vacuum cleaner, electric toothbrush, car discharge socket, shared helmets, etc.

Pin Plunger Micro Switch IP67 with Press-fit Terminals

Waterproof micro switch KW1-1C-5E delivers quiet operation due to its special design. As a sealed switch, it can conform to IP67 (after wiring), which is ideal for use in dusty and wet places. This switch is also equipped with posts, and it is suitable for appliactions where a secure and reliable electrical connection is required. For this type, please ensure that the press-fit terminals is in a right way to be inserted.

Product Series: KW1 Waterproof Micro Switch
Application: parcel locker, E-Bike brake, electric scooter brake, car door lock, sweeping robot, vacuum cleaner, electric toothbrush, car discharge socket, shared helmets, etc.

Pin Plunger Micro Switch IP67 with Press-fit Terminals

Waterproof micro switch KW1-1C-5E delivers quiet operation due to its special design. As a sealed switch, it can conform to IP67 (after wiring), which is ideal for use in dusty and wet places. This switch is also equipped with posts, and it is suitable for appliactions where a secure and reliable electrical connection is required. For this type, please ensure that the press-fit terminals is in a right way to be inserted.

Product Series: KW1 Waterproof Micro Switch
Application: parcel locker, E-Bike brake, electric scooter brake, car door lock, sweeping robot, vacuum cleaner, electric toothbrush, car discharge socket, shared helmets, etc.

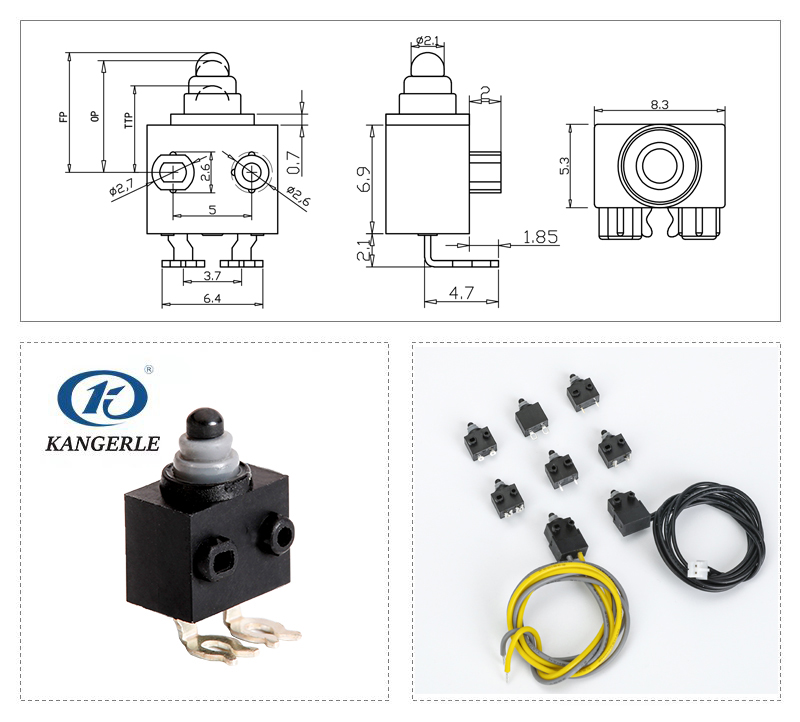

PRODUCT DETAIL

Pin Plunger Micro Switch IP67 with Press-fit Terminals插图

Rated Load DC12V 0.1A
Temperature -10~60℃
Operating Force 120±30gf (regular)/ 200±30gf
Circuit SPST NO/SPST NC
Contact Resistance ≤500mΩ
Insulation Resistance ≥100MΩ(DC500V)
Withstand Voltage ≥100VAC
Protection Level IP67(wiring)
Electrical Life ≥100,000 cycles
Mechanical Life ≥300,000cycles
Certification RoHS
