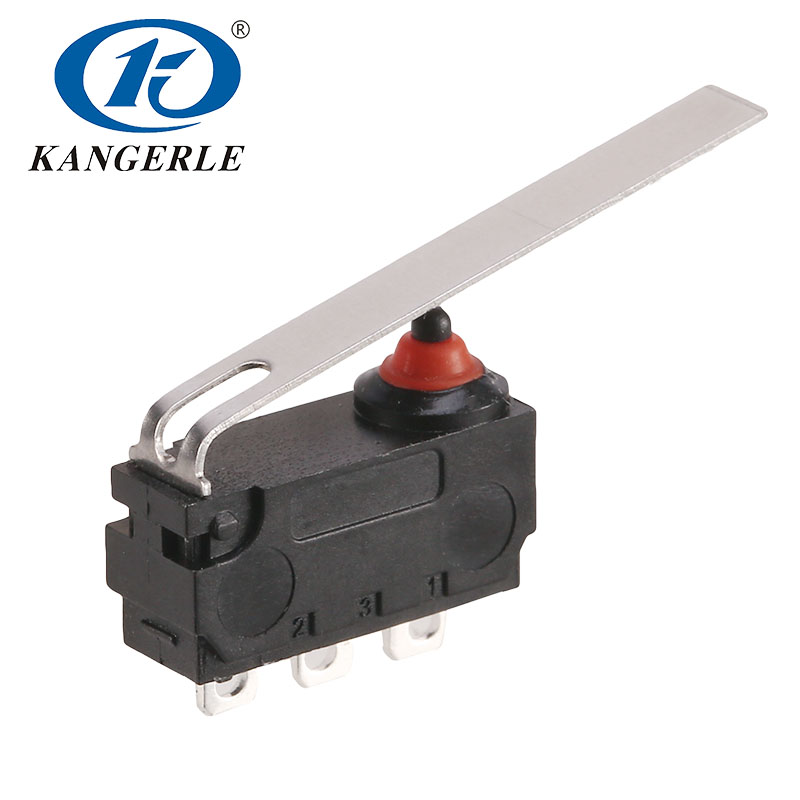

Waterproof Long Arm Micro Switch IP67

Waterproof micro switch KW2-1A-8B-B has a small compact structure and strong sealing performance. After wiring, it can reach IP67 grade waterproof and dustproof protective effect, which can be used in wet or dusty places. This switch is also equipped with a long metal lever arm, whose length is about 26mm. Moreover, a variety of terminals, levers, and wire types could be available.



Product Series: KW2 Waterproof Micro Switch

Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool

Waterproof Long Arm Micro Switch IP67

Waterproof micro switch KW2-1A-8B-B has a small compact structure and strong sealing performance. After wiring, it can reach IP67 grade waterproof and dustproof protective effect, which can be used in wet or dusty places. This switch is also equipped with a long metal lever arm, whose length is about 26mm. Moreover, a variety of terminals, levers, and wire types could be available.



Product Series: KW2 Waterproof Micro Switch

Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool

Waterproof Long Arm Micro Switch IP67

Waterproof micro switch KW2-1A-8B-B has a small compact structure and strong sealing performance. After wiring, it can reach IP67 grade waterproof and dustproof protective effect, which can be used in wet or dusty places. This switch is also equipped with a long metal lever arm, whose length is about 26mm. Moreover, a variety of terminals, levers, and wire types could be available.



Product Series: KW2 Waterproof Micro Switch

Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool

Waterproof Long Arm Micro Switch IP67

Waterproof micro switch KW2-1A-8B-B has a small compact structure and strong sealing performance. After wiring, it can reach IP67 grade waterproof and dustproof protective effect, which can be used in wet or dusty places. This switch is also equipped with a long metal lever arm, whose length is about 26mm. Moreover, a variety of terminals, levers, and wire types could be available.



Product Series: KW2 Waterproof Micro Switch

Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool

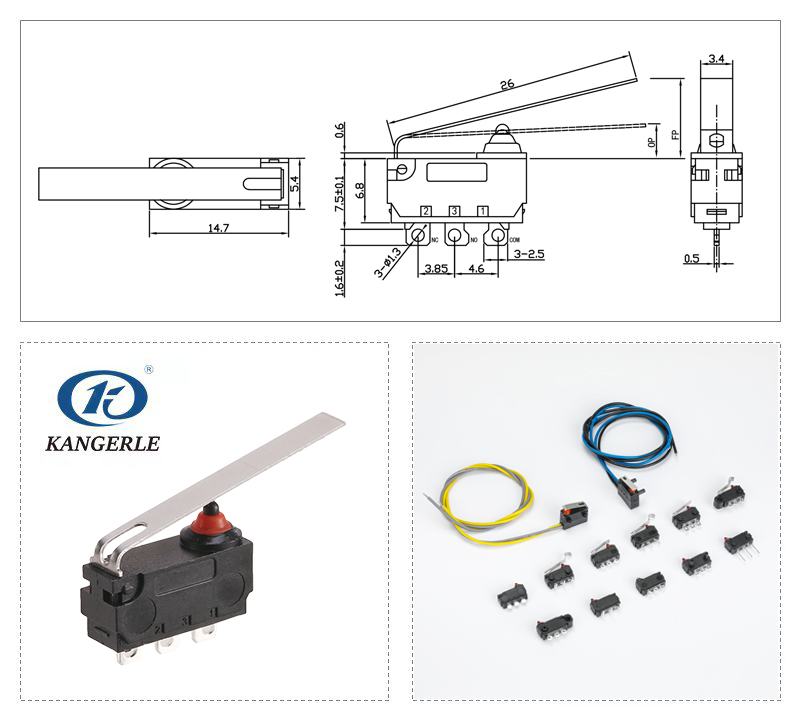

PRODUCT DETAIL

Waterproof Long Arm Micro Switch IP67插图

Chinakel KW2 Waterproof Micro Switch Feature

Rated Load 0.1A 125/250V AC; 3A 12V DC
Temperature 40T85
Operating Force ≤150gf(regular)
Circuit SPDT/SPST NO/SPST NC
Contact Resistance ≤500mΩ
Insulation Resistance ≥100MΩ(DC500V)
Withstand Voltage ≥1500VAC
Protection Level IP67(wiring)
Electrical Life ≥100,000 cycles
Mechanical Life ≥500,000cycles
Certification CQC/CB
