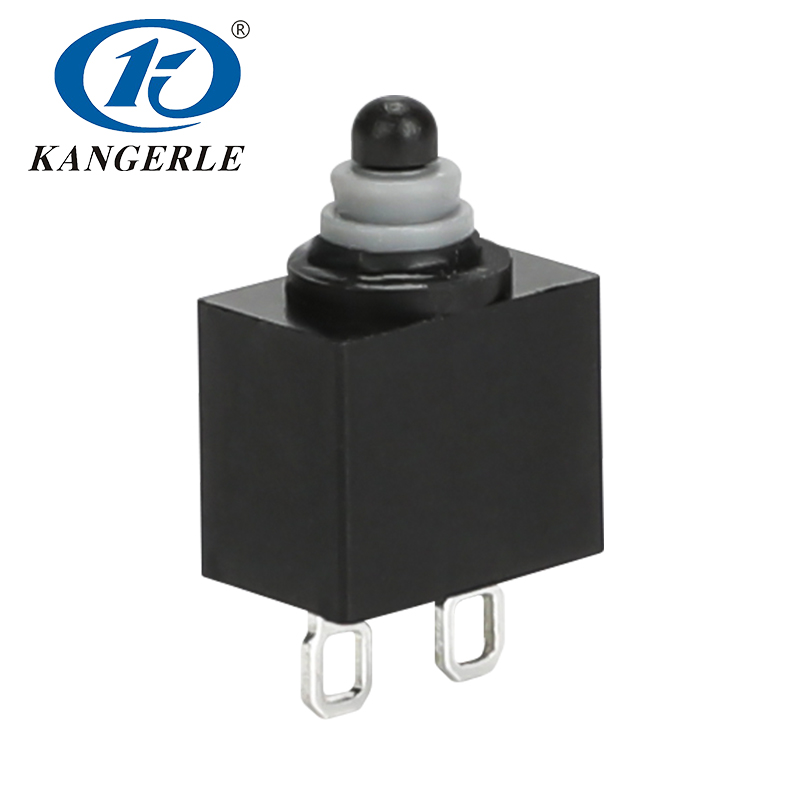

Waterproof Micro Switch KW-1C-1A

Waterproof micro switch KW1 has a small compact structure, which belongs to a mini sealed micro switch. It has a tiny operating travel and can control the situation of a circuit with high sensitivity. KW1 series is equipped with a wide range of wiring terminals and different types of posts. Meanwhile, it can reach IP67 grade waterproof and dustproof protection after wiring. This waterproof micro switch has a long electrical life and reliable quality.

Product Series: KW1 Waterproof Micro Switch
Application: parcel locker, E-Bike brake, electric scooter brake, car door lock, sweeping robot, vacuum cleaner, electric toothbrush, car discharge socket, shared helmets, etc.

Waterproof Micro Switch KW-1C-1A

Waterproof micro switch KW1 has a small compact structure, which belongs to a mini sealed micro switch. It has a tiny operating travel and can control the situation of a circuit with high sensitivity. KW1 series is equipped with a wide range of wiring terminals and different types of posts. Meanwhile, it can reach IP67 grade waterproof and dustproof protection after wiring. This waterproof micro switch has a long electrical life and reliable quality.

Product Series: KW1 Waterproof Micro Switch
Application: parcel locker, E-Bike brake, electric scooter brake, car door lock, sweeping robot, vacuum cleaner, electric toothbrush, car discharge socket, shared helmets, etc.

Waterproof Micro Switch KW-1C-1A

Waterproof micro switch KW1 has a small compact structure, which belongs to a mini sealed micro switch. It has a tiny operating travel and can control the situation of a circuit with high sensitivity. KW1 series is equipped with a wide range of wiring terminals and different types of posts. Meanwhile, it can reach IP67 grade waterproof and dustproof protection after wiring. This waterproof micro switch has a long electrical life and reliable quality.

Product Series: KW1 Waterproof Micro Switch
Application: parcel locker, E-Bike brake, electric scooter brake, car door lock, sweeping robot, vacuum cleaner, electric toothbrush, car discharge socket, shared helmets, etc.

Waterproof Micro Switch KW-1C-1A

Waterproof micro switch KW1 has a small compact structure, which belongs to a mini sealed micro switch. It has a tiny operating travel and can control the situation of a circuit with high sensitivity. KW1 series is equipped with a wide range of wiring terminals and different types of posts. Meanwhile, it can reach IP67 grade waterproof and dustproof protection after wiring. This waterproof micro switch has a long electrical life and reliable quality.

Product Series: KW1 Waterproof Micro Switch
Application: parcel locker, E-Bike brake, electric scooter brake, car door lock, sweeping robot, vacuum cleaner, electric toothbrush, car discharge socket, shared helmets, etc.

PRODUCT DETAIL

Bulk-buy Normally Open Sealed Waterproof Micro Switch from KANGERLE

Rated Load DC12V 0.1A
Temperature -10~60℃
Operating Force 120±30gf (regular)/ 200±30gf
Circuit SPST NO/SPST NC
Contact Resistance ≤500mΩ
Insulation Resistance ≥100MΩ(DC500V)
Withstand Voltage ≥100VAC
Protection Level IP67(wiring)
Electrical Life ≥100,000 cycles
Mechanical Life ≥300,000cycles
Certification RoHS
