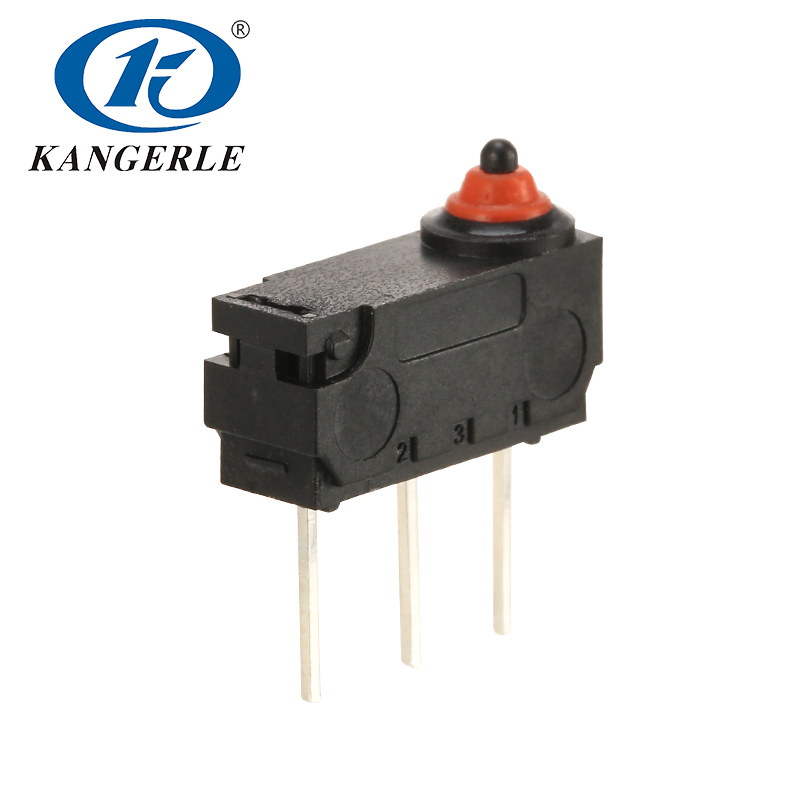

Momentary Waterproof Micro Switches 3 pins

Waterproof micro switch KW2-1A-E-B has 3 long straight PCB terminals, and the size of each pin is 0.6×7.35mm. This switch can be soldered on PCB board directly, which offers easy installation and saves time. Waterproof PCB micro switches are commonly used in applications where water resistance is critical, such as automotive, marine, industrial, and outdoor equipment. They provide reliable switching solutions in environments where exposure to moisture or water spray is expected.



Product Series: KW2 Waterproof Micro Switch

Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool

Momentary Waterproof Micro Switches 3 pins

Waterproof micro switch KW2-1A-E-B has 3 long straight PCB terminals, and the size of each pin is 0.6×7.35mm. This switch can be soldered on PCB board directly, which offers easy installation and saves time. Waterproof PCB micro switches are commonly used in applications where water resistance is critical, such as automotive, marine, industrial, and outdoor equipment. They provide reliable switching solutions in environments where exposure to moisture or water spray is expected.



Product Series: KW2 Waterproof Micro Switch

Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool

Momentary Waterproof Micro Switches 3 pins

Waterproof micro switch KW2-1A-E-B has 3 long straight PCB terminals, and the size of each pin is 0.6×7.35mm. This switch can be soldered on PCB board directly, which offers easy installation and saves time. Waterproof PCB micro switches are commonly used in applications where water resistance is critical, such as automotive, marine, industrial, and outdoor equipment. They provide reliable switching solutions in environments where exposure to moisture or water spray is expected.



Product Series: KW2 Waterproof Micro Switch

Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool

Momentary Waterproof Micro Switches 3 pins

Waterproof micro switch KW2-1A-E-B has 3 long straight PCB terminals, and the size of each pin is 0.6×7.35mm. This switch can be soldered on PCB board directly, which offers easy installation and saves time. Waterproof PCB micro switches are commonly used in applications where water resistance is critical, such as automotive, marine, industrial, and outdoor equipment. They provide reliable switching solutions in environments where exposure to moisture or water spray is expected.



Product Series: KW2 Waterproof Micro Switch

Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool

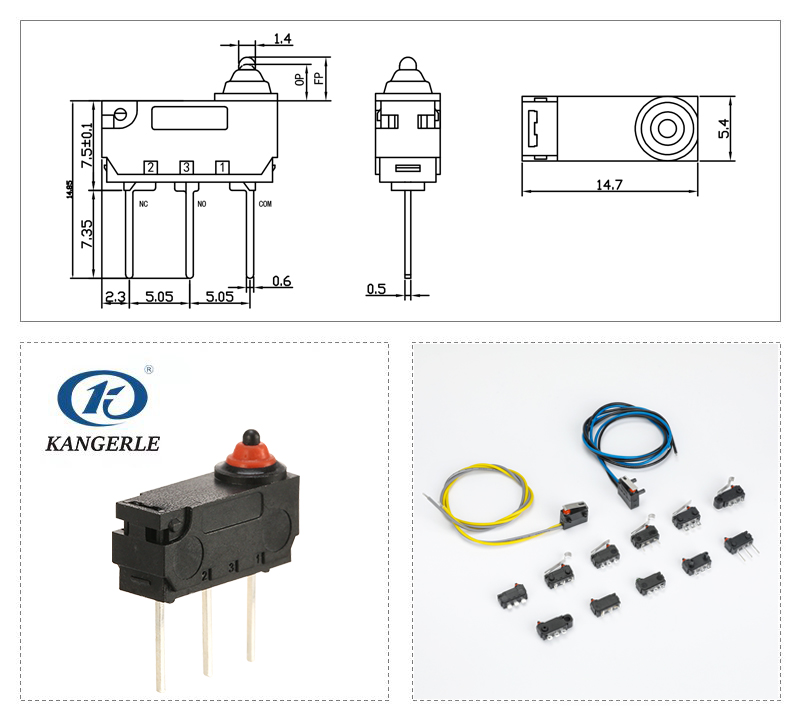

PRODUCT DETAIL

Momentary Waterproof Micro Switches 3 pins插图

Chinakel KW2 Waterproof Micro Switch Feature

Rated Load 0.1A 125/250V AC; 3A 12V DC
Temperature 40T85
Operating Force ≤150gf(regular)
Circuit SPDT/SPST NO/SPST NC
Contact Resistance ≤500mΩ
Insulation Resistance ≥100MΩ(DC500V)
Withstand Voltage ≥1500VAC
Protection Level IP67(wiring)
Electrical Life ≥100,000 cycles
Mechanical Life ≥500,000cycles
Certification CQC/CB
