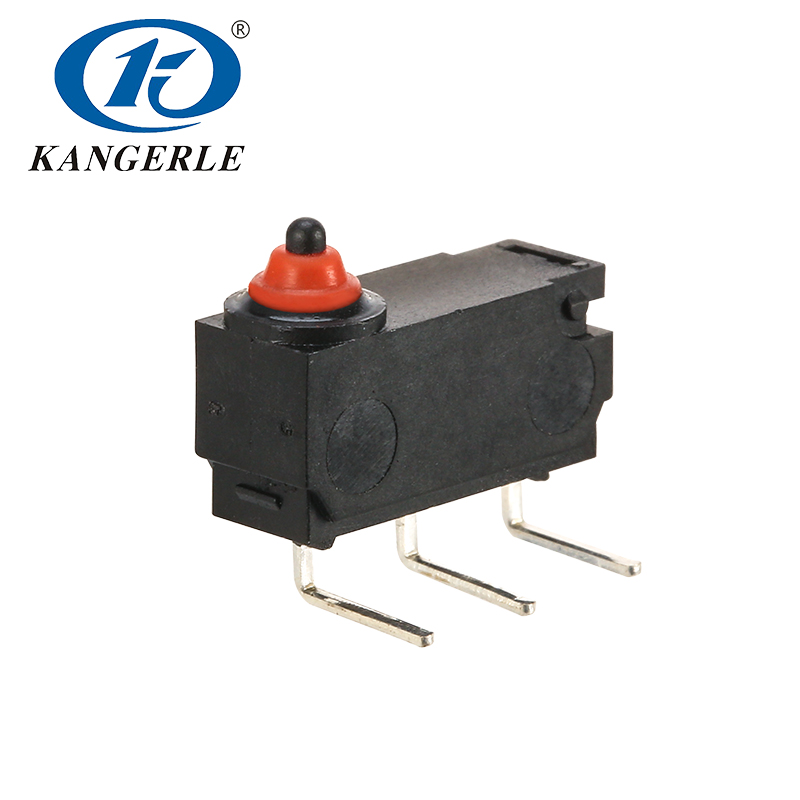

Waterproof Push Button Micro Switch Left Side PCB Terminal

KW2-1A-F-B is a hermetically sealed micro switch with 3 PCB terminals (left side), which can be mounted directly onto printed circuit boards. Its circuit illustration is SPDT type with rated load 3A 12V DC/0.1A 250V AC. This waterproof micro switch offers reliable and durable switching solutions for electronic devices and appliances operating in environments where exposure to water and moisture is a concern.



Product Series: KW2 Waterproof Micro Switch

Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool

Waterproof Push Button Micro Switch Left Side PCB Terminal

KW2-1A-F-B is a hermetically sealed micro switch with 3 PCB terminals (left side), which can be mounted directly onto printed circuit boards. Its circuit illustration is SPDT type with rated load 3A 12V DC/0.1A 250V AC. This waterproof micro switch offers reliable and durable switching solutions for electronic devices and appliances operating in environments where exposure to water and moisture is a concern.



Product Series: KW2 Waterproof Micro Switch

Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool

Waterproof Push Button Micro Switch Left Side PCB Terminal

KW2-1A-F-B is a hermetically sealed micro switch with 3 PCB terminals (left side), which can be mounted directly onto printed circuit boards. Its circuit illustration is SPDT type with rated load 3A 12V DC/0.1A 250V AC. This waterproof micro switch offers reliable and durable switching solutions for electronic devices and appliances operating in environments where exposure to water and moisture is a concern.



Product Series: KW2 Waterproof Micro Switch

Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool

Waterproof Push Button Micro Switch Left Side PCB Terminal

KW2-1A-F-B is a hermetically sealed micro switch with 3 PCB terminals (left side), which can be mounted directly onto printed circuit boards. Its circuit illustration is SPDT type with rated load 3A 12V DC/0.1A 250V AC. This waterproof micro switch offers reliable and durable switching solutions for electronic devices and appliances operating in environments where exposure to water and moisture is a concern.



Product Series: KW2 Waterproof Micro Switch

Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool

PRODUCT DETAIL

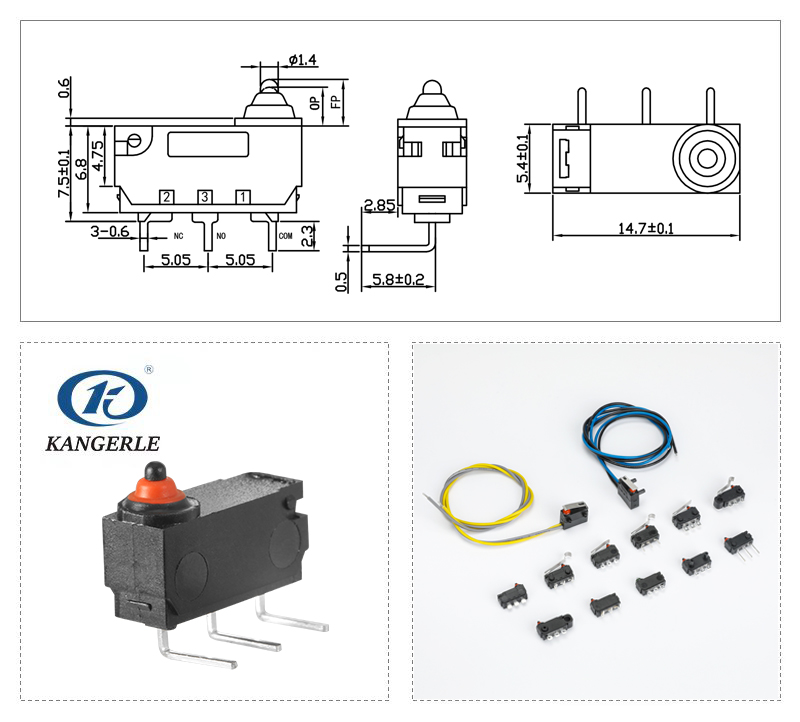

Waterproof Push Button Micro Switch Left Side PCB Terminal插图

Chinakel KW2 Waterproof Micro Switch Feature

Rated Load 0.1A 125/250V AC; 3A 12V DC
Temperature 40T85
Operating Force ≤150gf(regular)
Circuit SPDT/SPST NO/SPST NC
Contact Resistance ≤50mΩ
Insulation Resistance ≥100MΩ(DC500V)
Withstand Voltage ≥1500VAC
Protection Level IP67(wiring)
Electrical Life ≥100,000 cycles
Mechanical Life ≥500,000cycles
Certification CQC/CB
