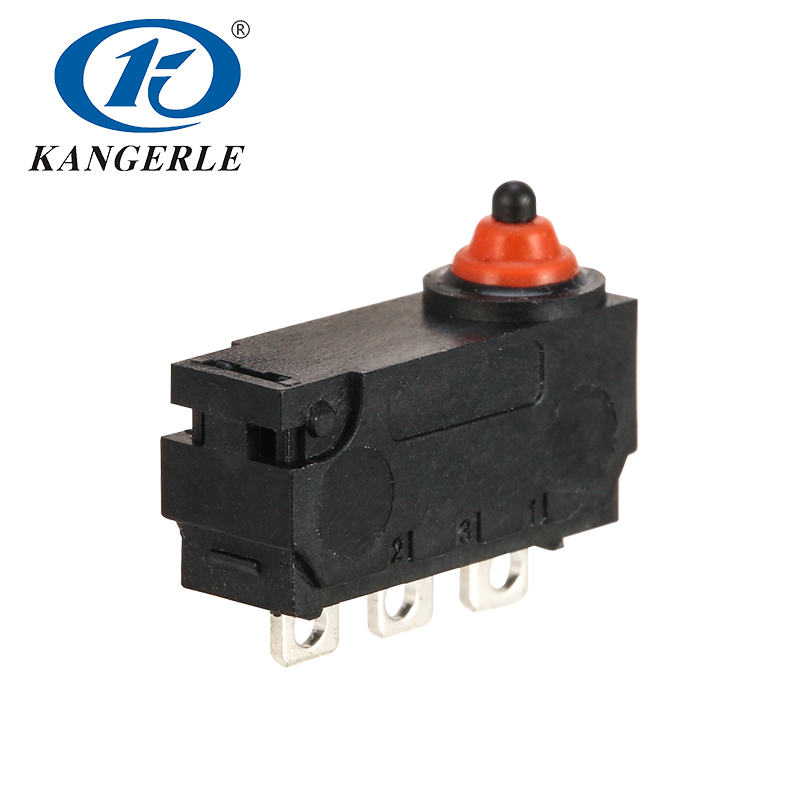

IP67 waterproof micro switch solder terminals KW2-1A-B-B

Waterproof micro switch KW2-1A-B-B has a small compact structure and strong sealing performance. It has 3 solder terminals and can be also customized with levers and posts.  After wiring, it can reach IP67 waterproof and dustproof protection, which is suitable for scenarios with high levels of dust and rain. For example, vehicles, outdoor equipment, and industrial controllers.

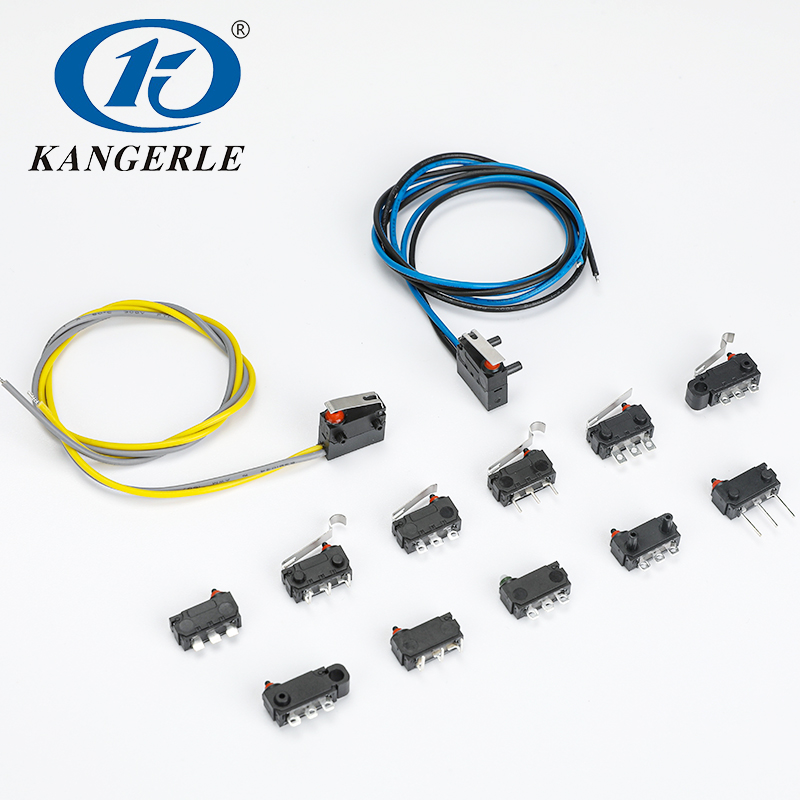

Product Series: KW2 Waterproof Micro Switch

Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool

IP67 waterproof micro switch solder terminals KW2-1A-B-B

Waterproof micro switch KW2-1A-B-B has a small compact structure and strong sealing performance. It has 3 solder terminals and can be also customized with levers and posts.  After wiring, it can reach IP67 waterproof and dustproof protection, which is suitable for scenarios with high levels of dust and rain. For example, vehicles, outdoor equipment, and industrial controllers.



Product Series: KW2 Waterproof Micro Switch

Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool

IP67 waterproof micro switch solder terminals KW2-1A-B-B

Waterproof micro switch KW2-1A-B-B has a small compact structure and strong sealing performance. It has 3 solder terminals and can be also customized with levers and posts.  After wiring, it can reach IP67 waterproof and dustproof protection, which is suitable for scenarios with high levels of dust and rain. For example, vehicles, outdoor equipment, and industrial controllers.



Product Series: KW2 Waterproof Micro Switch

Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool

IP67 waterproof micro switch solder terminals KW2-1A-B-B

Waterproof micro switch KW2-1A-B-B has a small compact structure and strong sealing performance. It has 3 solder terminals and can be also customized with levers and posts.  After wiring, it can reach IP67 waterproof and dustproof protection, which is suitable for scenarios with high levels of dust and rain. For example, vehicles, outdoor equipment, and industrial controllers.



Product Series: KW2 Waterproof Micro Switch

Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool

PRODUCT DETAIL

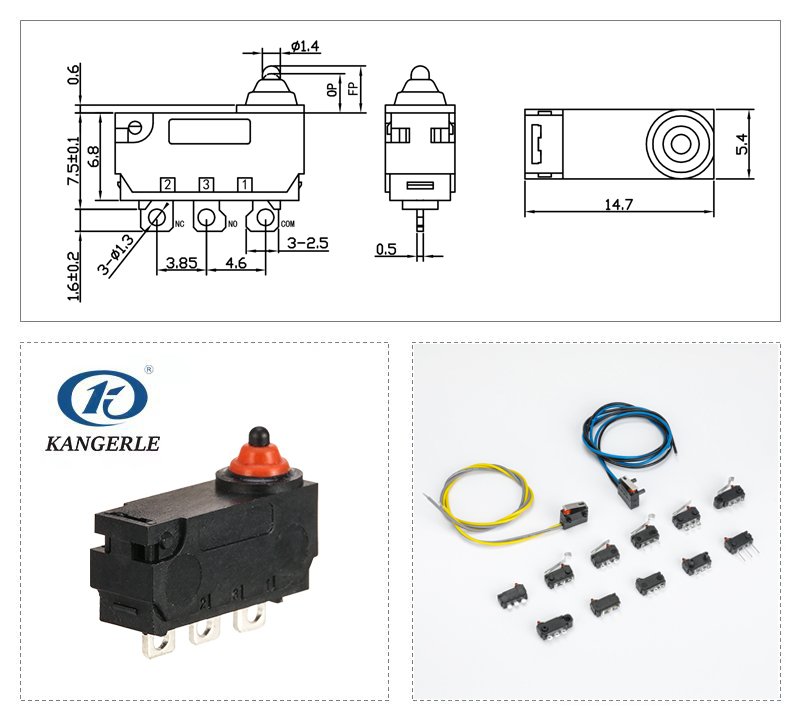

IP67 waterproof micro switch solder terminals KW2-1A-B-B插图

Chinakel KW2 Waterproof Micro Switch Feature

Rated Load 0.1A 125/250V AC; 3A 12V DC
Temperature 40T85
Operating Force ≤150gf(regular)
Circuit SPDT/SPST NO/SPST NC
Contact Resistance ≤500mΩ
Insulation Resistance ≥100MΩ(DC500V)
Withstand Voltage ≥1500VAC
Protection Level IP67(wiring)
Electrical Life ≥100,000 cycles
Mechanical Life ≥500,000cycles
Certification CQC/CB
