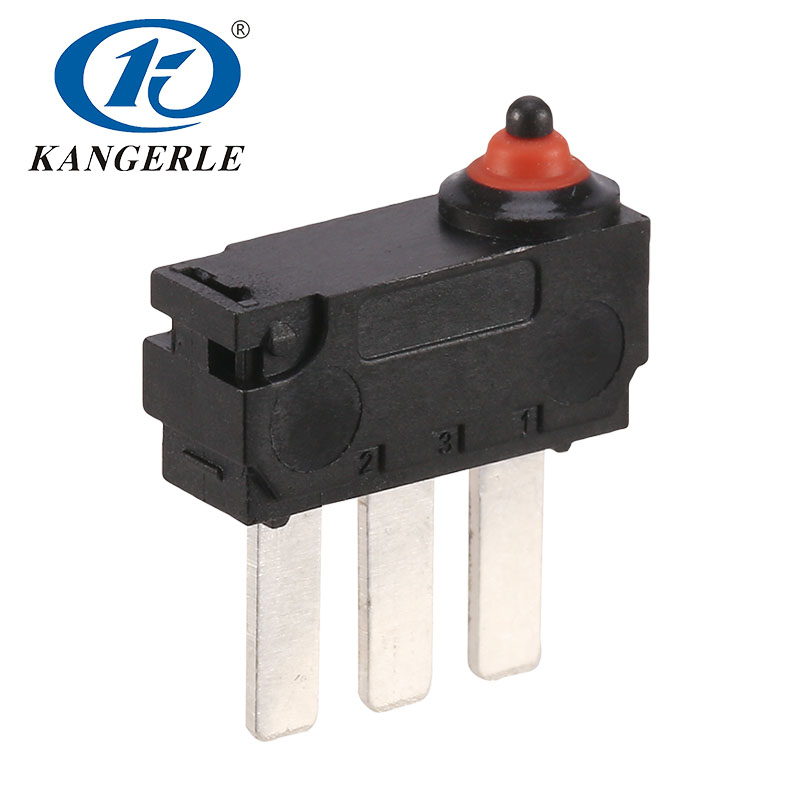

Subminiature Waterproof Micro Switch with Straight Terminal

KW2-1A-K-B is a 12 volt waterproof micro switch with 2.5×7.3mm straight Terminals. It has strong sealing performance and can realize the on/off situation of the circuit quickly, which is widely applied in outdoor equipment and vehicles. This switch is also equipped with different types of levers and terminals. Customization is supportive.

Product Series: KW2 Waterproof Micro Switch

Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool

Subminiature Waterproof Micro Switch with Straight Terminal

KW2-1A-K-B is a 12 volt waterproof micro switch with 2.5×7.3mm straight Terminals. It has strong sealing performance and can realize the on/off situation of the circuit quickly, which is widely applied in outdoor equipment and vehicles. This switch is also equipped with different types of levers and terminals. Customization is supportive.

Product Series: KW2 Waterproof Micro Switch

Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool

Subminiature Waterproof Micro Switch with Straight Terminal

KW2-1A-K-B is a 12 volt waterproof micro switch with 2.5×7.3mm straight Terminals. It has strong sealing performance and can realize the on/off situation of the circuit quickly, which is widely applied in outdoor equipment and vehicles. This switch is also equipped with different types of levers and terminals. Customization is supportive.

Product Series: KW2 Waterproof Micro Switch

Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool

Subminiature Waterproof Micro Switch with Straight Terminal

KW2-1A-K-B is a 12 volt waterproof micro switch with 2.5×7.3mm straight Terminals. It has strong sealing performance and can realize the on/off situation of the circuit quickly, which is widely applied in outdoor equipment and vehicles. This switch is also equipped with different types of levers and terminals. Customization is supportive.

Product Series: KW2 Waterproof Micro Switch

Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool

PRODUCT DETAIL

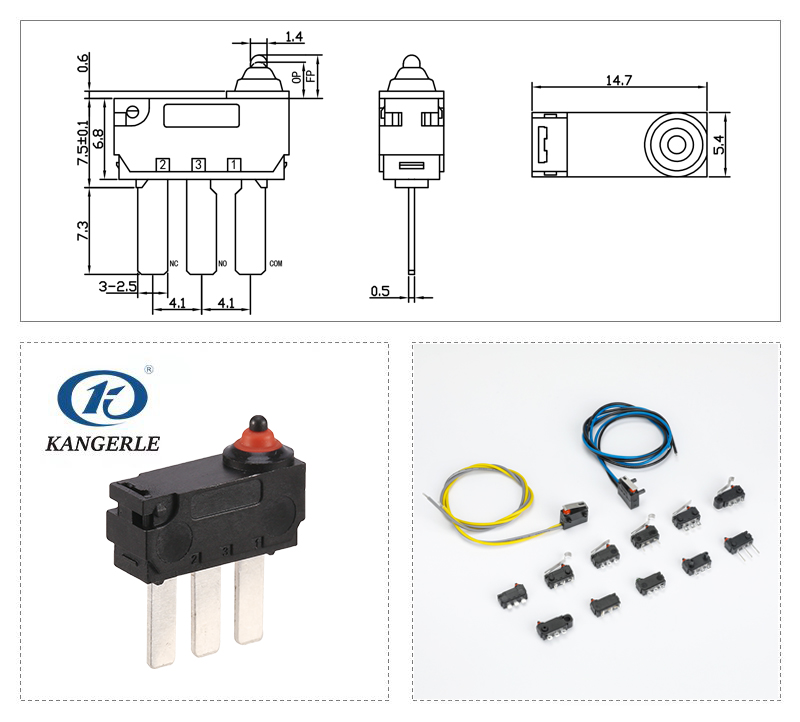

Subminiature Waterproof Micro Switch with Straight Terminal插图

Chinakel KW2 Waterproof Micro Switch Feature

Rated Load 0.1A 125/250V AC; 3A 12V DC
Temperature 40T85
Operating Force ≤150gf(regular)
Circuit SPDT/SPST NO/SPST NC
Contact Resistance  ≤500mΩ
Insulation Resistance ≥100MΩ(DC500V)
Withstand Voltage ≥1500VAC
Protection Level IP67(wiring)
Electrical Life ≥100,000 cycles
Mechanical Life ≥500,000cycles
Certification CQC/CB
