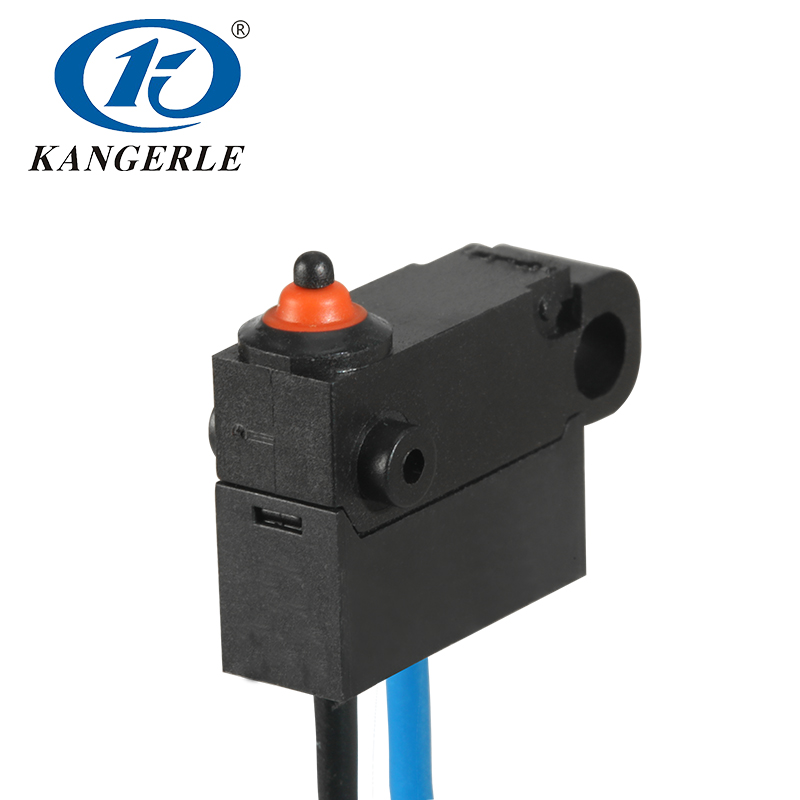

12V Waterproof Micro Switch Lead Wires Downwards

Waterproof micro switch KW2-1C-01-M1 is a normally open push button switch without a lever. It can reach IP67 level waterproof and dustproof protection after wiring, which can be used under harsh environmental conditions. There are also a variety of terminals, levers and posts for your selection.



Product Series: KW2 Waterproof Micro Switch

Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool

12V Waterproof Micro Switch Lead Wires Downwards

Waterproof micro switch KW2-1C-01-M1 is a normally open push button switch without a lever. It can reach IP67 level waterproof and dustproof protection after wiring, which can be used under harsh environmental conditions. There are also a variety of terminals, levers and posts for your selection.



Product Series: KW2 Waterproof Micro Switch

Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool

12V Waterproof Micro Switch Lead Wires Downwards

Waterproof micro switch KW2-1C-01-M1 is a normally open push button switch without a lever. It can reach IP67 level waterproof and dustproof protection after wiring, which can be used under harsh environmental conditions. There are also a variety of terminals, levers and posts for your selection.



Product Series: KW2 Waterproof Micro Switch

Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool

12V Waterproof Micro Switch Lead Wires Downwards

Waterproof micro switch KW2-1C-01-M1 is a normally open push button switch without a lever. It can reach IP67 level waterproof and dustproof protection after wiring, which can be used under harsh environmental conditions. There are also a variety of terminals, levers and posts for your selection.



Product Series: KW2 Waterproof Micro Switch

Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool

PRODUCT DETAIL

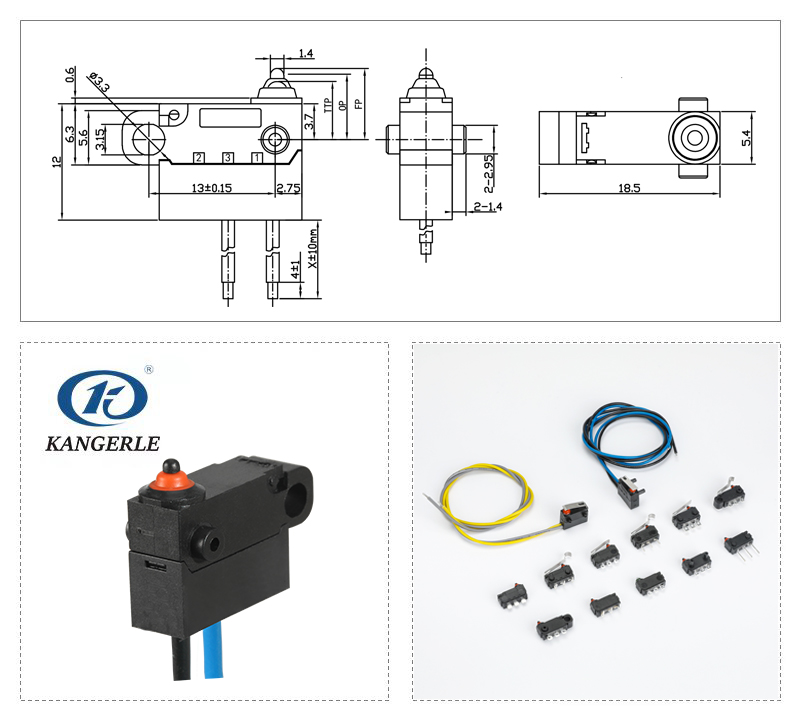

12V Waterproof Micro Switch Lead Wires Downwards插图

Chinakel KW2 Waterproof Micro Switch Feature

Rated Load 0.1A 125/250V AC; 3A 12V DC
Temperature 40T85
Operating Force ≤150gf(regular)
Circuit SPDT/SPST NO/SPST NC
Contact Resistance  ≤500mΩ
Insulation Resistance ≥100MΩ(DC500V)
Withstand Voltage ≥1500VAC
Protection Level IP67(wiring)
Electrical Life ≥100,000 cycles
Mechanical Life ≥500,000cycles
Certification CQC/CB
