SPDT Micro Switch IP67 Lever Quick Connect for Charging Gun

KW2-1A-1B-B is a subminiature waterproof micro switch molds with a lever, length 13.65mm.  It is widely used in new vehicle charging gun with its compact structure and strong sealing performance. This switch provides a quick feedback of the electronic locks in a charging gun, which makes the process of charging safely and smoothly.  If you are looking for an IP67 micro switch for your charging gun, we can offer one-stop switch solution for you.



Product Series: KW2 Waterproof Micro Switch

Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool

SPDT Micro Switch IP67 Lever Quick Connect for Charging Gun

KW2-1A-1B-B is a subminiature waterproof micro switch molds with a lever, length 13.65mm.  It is widely used in new vehicle charging gun with its compact structure and strong sealing performance. This switch provides a quick feedback of the electronic locks in a charging gun, which makes the process of charging safely and smoothly.  If you are looking for an IP67 micro switch for your charging gun, we can offer one-stop switch solution for you.



Product Series: KW2 Waterproof Micro Switch

Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool

SPDT Micro Switch IP67 Lever Quick Connect for Charging Gun

KW2-1A-1B-B is a subminiature waterproof micro switch molds with a lever, length 13.65mm.  It is widely used in new vehicle charging gun with its compact structure and strong sealing performance. This switch provides a quick feedback of the electronic locks in a charging gun, which makes the process of charging safely and smoothly.  If you are looking for an IP67 micro switch for your charging gun, we can offer one-stop switch solution for you.



Product Series: KW2 Waterproof Micro Switch

Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool

SPDT Micro Switch IP67 Lever Quick Connect for Charging Gun

KW2-1A-1B-B is a subminiature waterproof micro switch molds with a lever, length 13.65mm.  It is widely used in new vehicle charging gun with its compact structure and strong sealing performance. This switch provides a quick feedback of the electronic locks in a charging gun, which makes the process of charging safely and smoothly.  If you are looking for an IP67 micro switch for your charging gun, we can offer one-stop switch solution for you.



Product Series: KW2 Waterproof Micro Switch

Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool

PRODUCT DETAIL

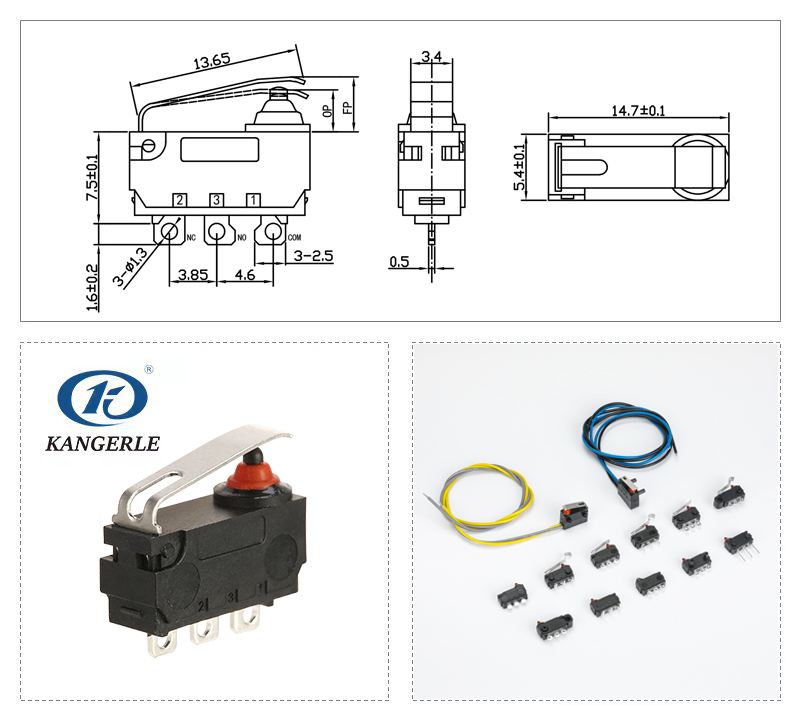

SPDT Micro Switch IP67 Lever Quick Connect for Charging Gun插图

Chinakel KW2 Waterproof Micro Switch Feature

Rated Load 0.1A 125/250V AC; 3A 12V DC
Temperature 40T85
Operating Force ≤150gf(regular)
Circuit SPDT/SPST NO/SPST NC
Contact Resistance ≤500mΩ
Insulation Resistance ≥100MΩ(DC500V)
Withstand Voltage ≥1500VAC
Protection Level IP67(wiring)
Electrical Life ≥100,000 cycles
Mechanical Life ≥500,000cycles
Certification CQC/CB
