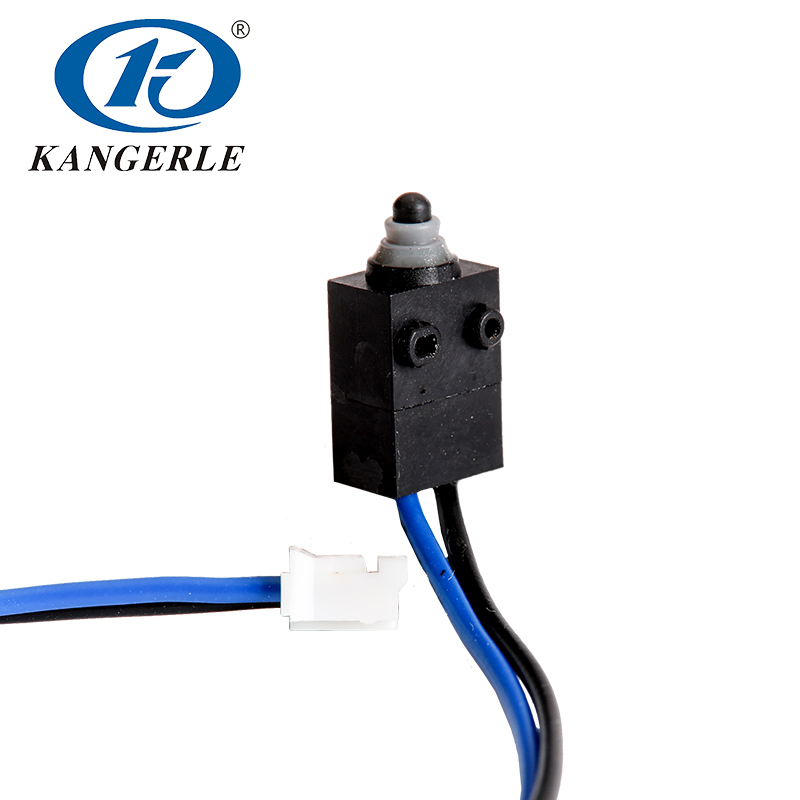

Waterproof Momentary Push Button Micro Switch IP67 with Bottom Wire Type

Kangerle subminiature waterproof micro switch KW1-1C-1101 features a compact design and robust IP67 protection after wiring. With options for SPST-NO and SPST-NC configurations, and a variety of terminals and fixed columns, it is suitable for a wide range of industrial and consumer applications. As for wiring, KW1 series is also available in left side and right side wire types.

Product Series: KW1 Waterproof Micro Switch
Application: coffee machine, parcel locker, E-Bike brake, electric scooter brake, car door lock, sweeping robot, vacuum cleaner, electric toothbrush, car discharge socket, shared helmets, etc.

Waterproof Momentary Push Button Micro Switch IP67 with Bottom Wire Type

Kangerle subminiature waterproof micro switch KW1-1C-1101 features a compact design and robust IP67 protection after wiring. With options for SPST-NO and SPST-NC configurations, and a variety of terminals and fixed columns, it is suitable for a wide range of industrial and consumer applications. As for wiring, KW1 series is also available in left side and right side wire types.

Product Series: KW1 Waterproof Micro Switch
Application: coffee machine, parcel locker, E-Bike brake, electric scooter brake, car door lock, sweeping robot, vacuum cleaner, electric toothbrush, car discharge socket, shared helmets, etc.

Waterproof Momentary Push Button Micro Switch IP67 with Bottom Wire Type

Kangerle subminiature waterproof micro switch KW1-1C-1101 features a compact design and robust IP67 protection after wiring. With options for SPST-NO and SPST-NC configurations, and a variety of terminals and fixed columns, it is suitable for a wide range of industrial and consumer applications. As for wiring, KW1 series is also available in left side and right side wire types.

Product Series: KW1 Waterproof Micro Switch
Application: coffee machine, parcel locker, E-Bike brake, electric scooter brake, car door lock, sweeping robot, vacuum cleaner, electric toothbrush, car discharge socket, shared helmets, etc.

Waterproof Momentary Push Button Micro Switch IP67 with Bottom Wire Type

Kangerle subminiature waterproof micro switch KW1-1C-1101 features a compact design and robust IP67 protection after wiring. With options for SPST-NO and SPST-NC configurations, and a variety of terminals and fixed columns, it is suitable for a wide range of industrial and consumer applications. As for wiring, KW1 series is also available in left side and right side wire types.

Product Series: KW1 Waterproof Micro Switch
Application: coffee machine, parcel locker, E-Bike brake, electric scooter brake, car door lock, sweeping robot, vacuum cleaner, electric toothbrush, car discharge socket, shared helmets, etc.

PRODUCT DETAIL

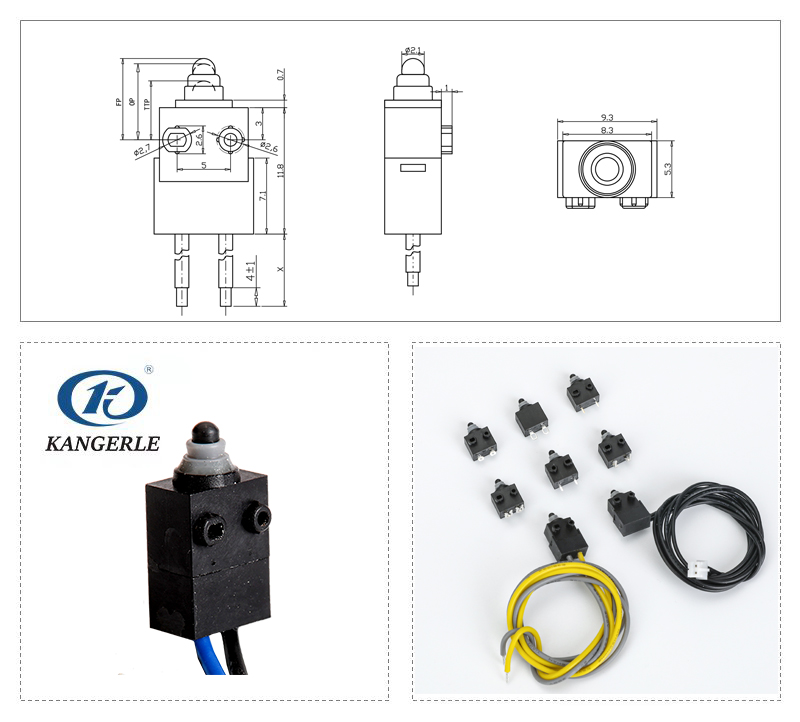

Waterproof Momentary Push Button Micro Switch IP67 with Bottom Wire Type插图

KW1 Waterproof Micro Switch Technical Characteristic

Rated Load DC12V 0.1A
FP 4.8mm
OP 4.1±0.3mm
Temperature -40~85℃
Operating Force 120±30gf (regular)
Circuit SPST NO/SPST NC
Contact Resistance ≤500mΩ
Insulation Resistance ≥100MΩ(DC500V)
Withstand Voltage ≥100VAC
Protection Level IP67(wiring)
Electrical Life 100,000 cycles
Mechanical Life 300,000cycles
Certification RoHS
