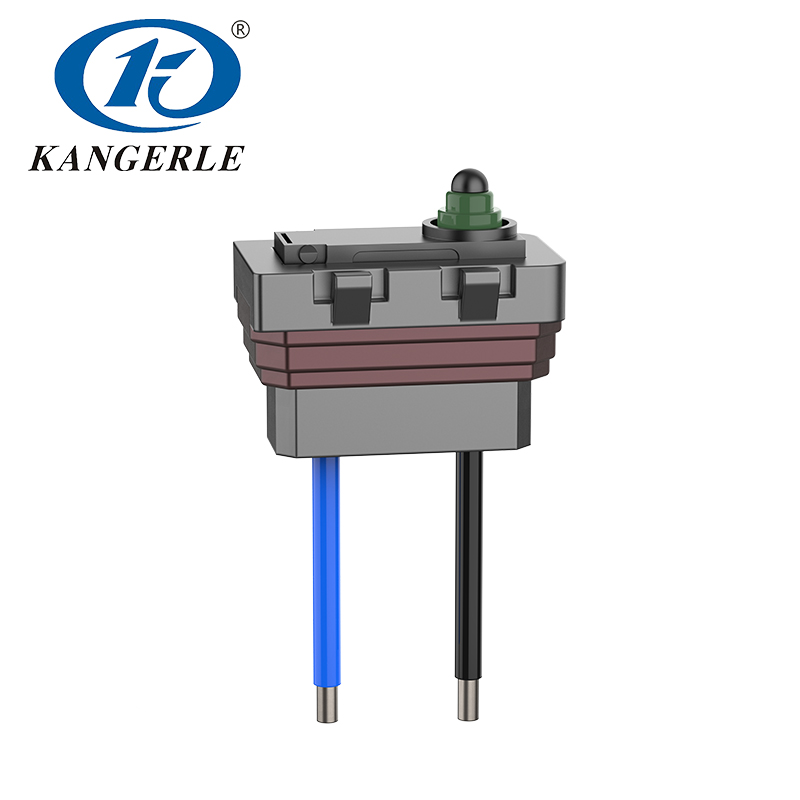

The KW5-1B-01-B-C waterproof micro switch is developed for reliable position detection and signal control in EV charging connectors. Its compact flange-mounted housing and pre-wired construction allow secure integration into charging gun assemblies, while IP67 sealing provides protection against water and dust. Designed to operate from -40°C to +85°C and rated for at least 100,000 electrical cycles, it delivers stable switching for plug detection, latch-position feedback, and charging safety interlock functions in demanding automotive environments.

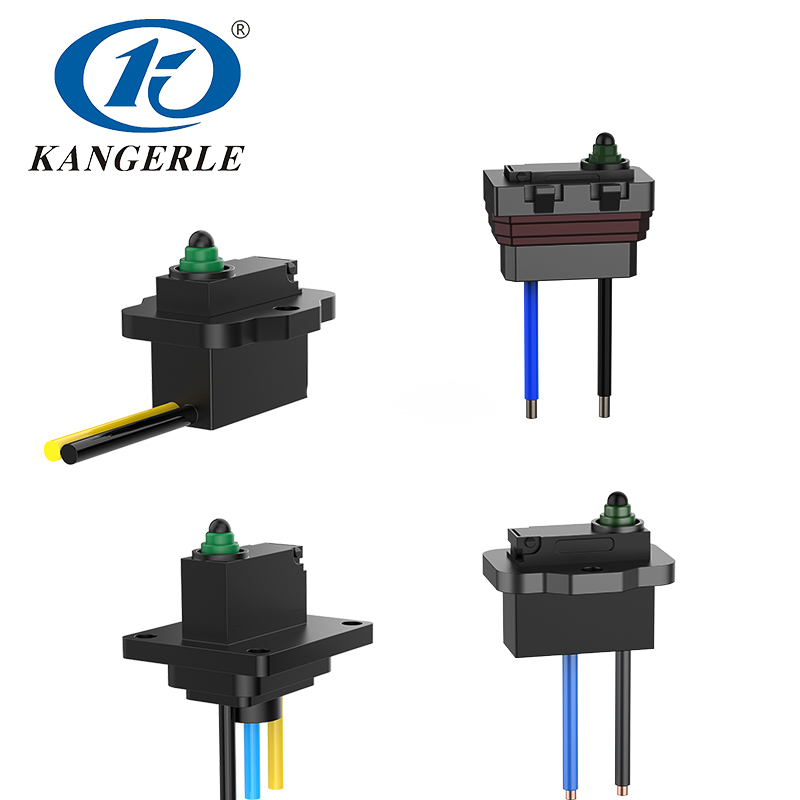

Product Series: KW5 Series.
Applications: EV charging connectors.
The KW5-1B-01-B-C waterproof micro switch is developed for reliable position detection and signal control in EV charging connectors. Its compact flange-mounted housing and pre-wired construction allow secure integration into charging gun assemblies, while IP67 sealing provides protection against water and dust. Designed to operate from -40°C to +85°C and rated for at least 100,000 electrical cycles, it delivers stable switching for plug detection, latch-position feedback, and charging safety interlock functions in demanding automotive environments.
Product Series: KW5 Series.
Applications: EV charging connectors.
The KW5-1B-01-B-C waterproof micro switch is developed for reliable position detection and signal control in EV charging connectors. Its compact flange-mounted housing and pre-wired construction allow secure integration into charging gun assemblies, while IP67 sealing provides protection against water and dust. Designed to operate from -40°C to +85°C and rated for at least 100,000 electrical cycles, it delivers stable switching for plug detection, latch-position feedback, and charging safety interlock functions in demanding automotive environments.
Product Series: KW5 Series.
Applications: EV charging connectors.
The KW5-1B-01-B-C waterproof micro switch is developed for reliable position detection and signal control in EV charging connectors. Its compact flange-mounted housing and pre-wired construction allow secure integration into charging gun assemblies, while IP67 sealing provides protection against water and dust. Designed to operate from -40°C to +85°C and rated for at least 100,000 electrical cycles, it delivers stable switching for plug detection, latch-position feedback, and charging safety interlock functions in demanding automotive environments.
Product Series: KW5 Series.
Applications: EV charging connectors.

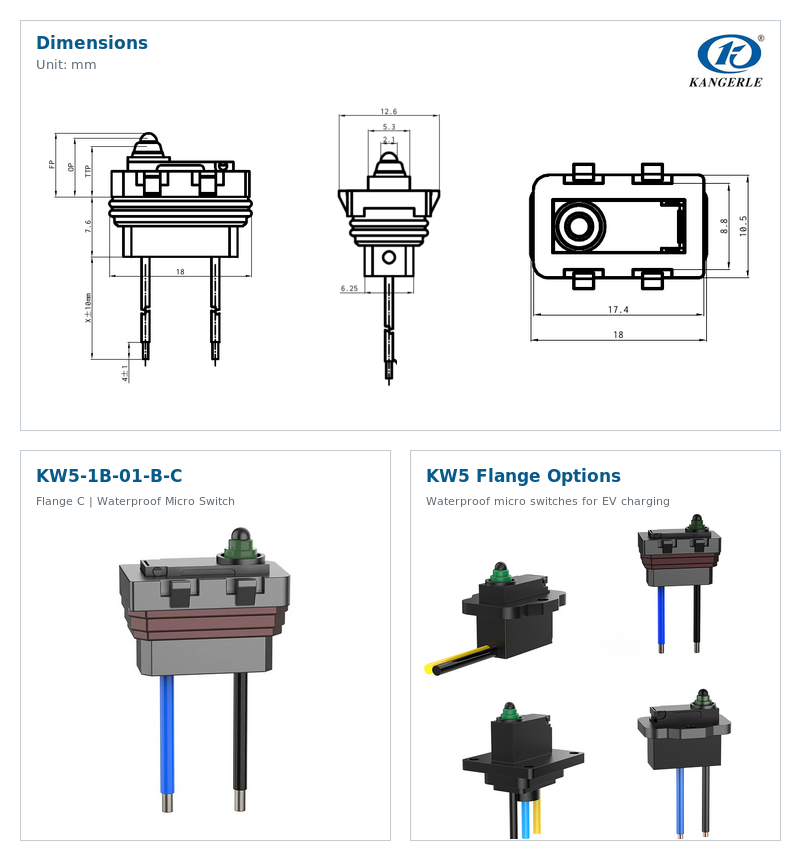

| Rated Load | DC12V 3A / AC250V 0.1A Resistive Load |
| Operating Force | 150(gf) MAX |
| Free Position(FP) | 8.4mm MAX |
| Operating Position(OP) | 7.4±0.7mm |
| Total Travel Position(TTP) | 6.4mm MIN |
| Protection Degree | IP67 |
| Insulation Resistance | 100MΩMin (500V DC) |
| Electrical Life | Min 100,000/cycles |
| Mechanical Life | Min 500,000/cycles |
| Temperature | -40℃ ~ +85℃ |
| Certification | RoHS |
