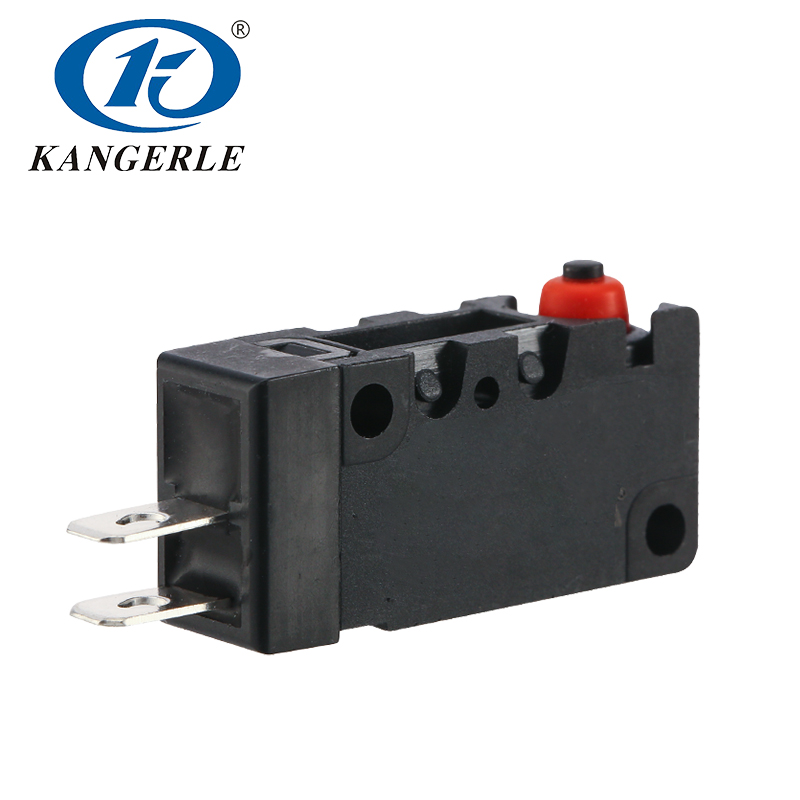

Waterproof micro switch WS2-10C-A

Waterproof micro switch WS2 uses sealing materials with strong insulation and good waterproof effect, and can achieve the IP67 waterproof and dustproof protection after wiring. Capable of withstanding harsh outdoor environments with good accuracy and long electrical life. The series of micro switch has compact structure, sensitive action and strong load capacity. Different types of levers and wire welding operations are available.



Product Series: WS2 Waterproof Micro Switch
Application: large Industrial Machinery, golf cart, truck hydraulic safety lock, built-in dehumidification system, gas gun explosion-proof switch, crane machine, garbage disposal, grinder, electric fish scaler

Waterproof micro switch WS2-10C-A

Waterproof micro switch WS2 uses sealing materials with strong insulation and good waterproof effect, and can achieve the IP67 waterproof and dustproof protection after wiring. Capable of withstanding harsh outdoor environments with good accuracy and long electrical life. The series of micro switch has compact structure, sensitive action and strong load capacity. Different types of levers and wire welding operations are available.



Product Series: WS2 Waterproof Micro Switch
Application: large Industrial Machinery, golf cart, truck hydraulic safety lock, built-in dehumidification system, gas gun explosion-proof switch, crane machine, garbage disposal, grinder, electric fish scaler

Waterproof micro switch WS2-10C-A

Waterproof micro switch WS2 uses sealing materials with strong insulation and good waterproof effect, and can achieve the IP67 waterproof and dustproof protection after wiring. Capable of withstanding harsh outdoor environments with good accuracy and long electrical life. The series of micro switch has compact structure, sensitive action and strong load capacity. Different types of levers and wire welding operations are available.



Product Series: WS2 Waterproof Micro Switch
Application: large Industrial Machinery, golf cart, truck hydraulic safety lock, built-in dehumidification system, gas gun explosion-proof switch, crane machine, garbage disposal, grinder, electric fish scaler

Waterproof micro switch WS2-10C-A

Waterproof micro switch WS2 uses sealing materials with strong insulation and good waterproof effect, and can achieve the IP67 waterproof and dustproof protection after wiring. Capable of withstanding harsh outdoor environments with good accuracy and long electrical life. The series of micro switch has compact structure, sensitive action and strong load capacity. Different types of levers and wire welding operations are available.



Product Series: WS2 Waterproof Micro Switch
Application: large Industrial Machinery, golf cart, truck hydraulic safety lock, built-in dehumidification system, gas gun explosion-proof switch, crane machine, garbage disposal, grinder, electric fish scaler

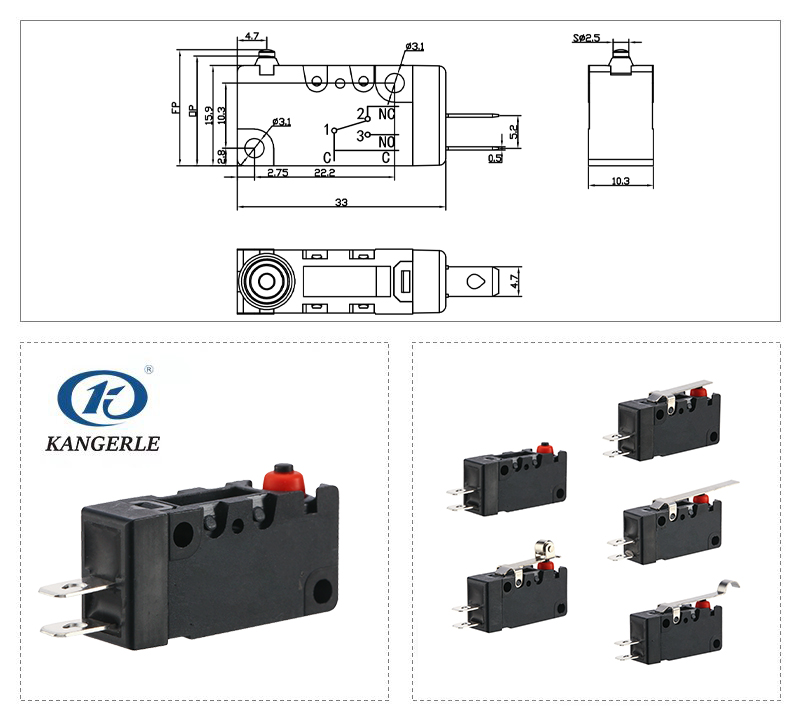

PRODUCT DETAIL

Waterproof micro switch WS2-10C-A插图

Chinakel WS2 Waterproof Micro Switch Feature

Rated Load 5/10A 125/250VAC
Temperature 25T125
Operating Force ≤200gf(regular)
Circuit SPDT/SPST NO/SPST NC
Contact Resistance ≤50mΩ
Insulation Resistance ≥100MΩ(DC500V)
Withstand Voltage ≥1500VAC
Protection Level IP67(after wiring)
Electrical Life ≥10,000 times
Mechanical Life ≥1,000,000 times
Certification CB/CQC/C
