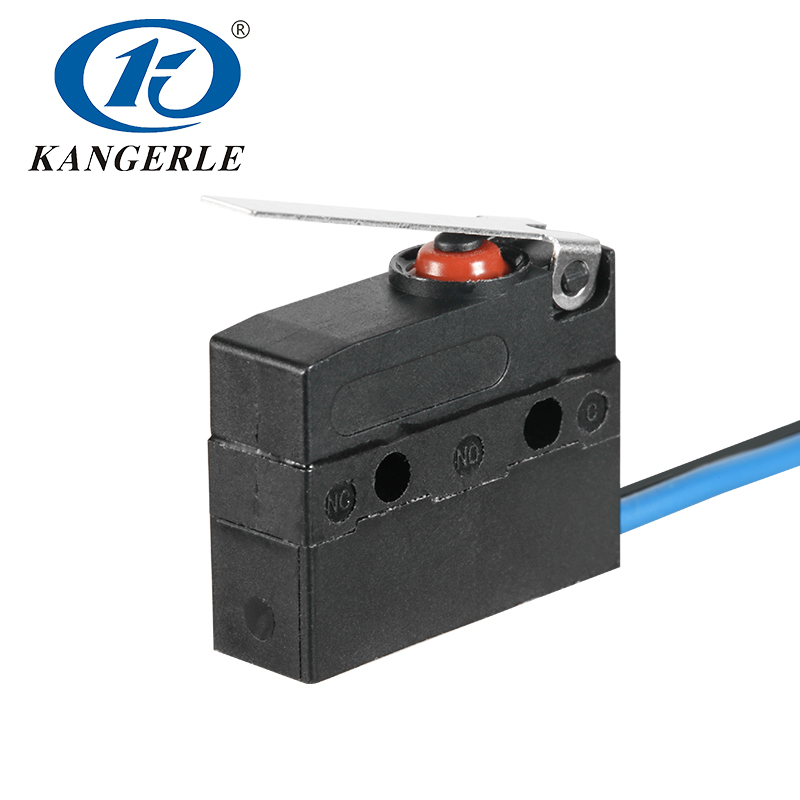

Waterproof Lever Micro Switch 250V AC Molds with Wire

Kangerle WS1-10C-203 is a normally open IP67 micro switch with wires. It is sealed with rubber rings and epoxy resin for reliable performance. This series is also available in SPST-NC and SPDT models, with various wiring terminals and lever types for flexible applications.



Product Series: WS1 Waterproof Micro Switch
Application: power tools, charging gun, car door lock, car seat belt lock, electric tailgate lock, shared bike bluetooth lock, E-scooter brake lock, high pressure car wash gun, lawn mower, automatic car washer,etc.

Waterproof Lever Micro Switch 250V AC Molds with Wire

Kangerle WS1-10C-203 is a normally open IP67 micro switch with wires. It is sealed with rubber rings and epoxy resin for reliable performance. This series is also available in SPST-NC and SPDT models, with various wiring terminals and lever types for flexible applications.



Product Series: WS1 Waterproof Micro Switch
Application: power tools, charging gun, car door lock, car seat belt lock, electric tailgate lock, shared bike bluetooth lock, E-scooter brake lock, high pressure car wash gun, lawn mower, automatic car washer,etc.

Waterproof Lever Micro Switch 250V AC Molds with Wire

Kangerle WS1-10C-203 is a normally open IP67 micro switch with wires. It is sealed with rubber rings and epoxy resin for reliable performance. This series is also available in SPST-NC and SPDT models, with various wiring terminals and lever types for flexible applications.



Product Series: WS1 Waterproof Micro Switch
Application: power tools, charging gun, car door lock, car seat belt lock, electric tailgate lock, shared bike bluetooth lock, E-scooter brake lock, high pressure car wash gun, lawn mower, automatic car washer,etc.

Waterproof Lever Micro Switch 250V AC Molds with Wire

Kangerle WS1-10C-203 is a normally open IP67 micro switch with wires. It is sealed with rubber rings and epoxy resin for reliable performance. This series is also available in SPST-NC and SPDT models, with various wiring terminals and lever types for flexible applications.



Product Series: WS1 Waterproof Micro Switch
Application: power tools, charging gun, car door lock, car seat belt lock, electric tailgate lock, shared bike bluetooth lock, E-scooter brake lock, high pressure car wash gun, lawn mower, automatic car washer,etc.

PRODUCT DETAIL

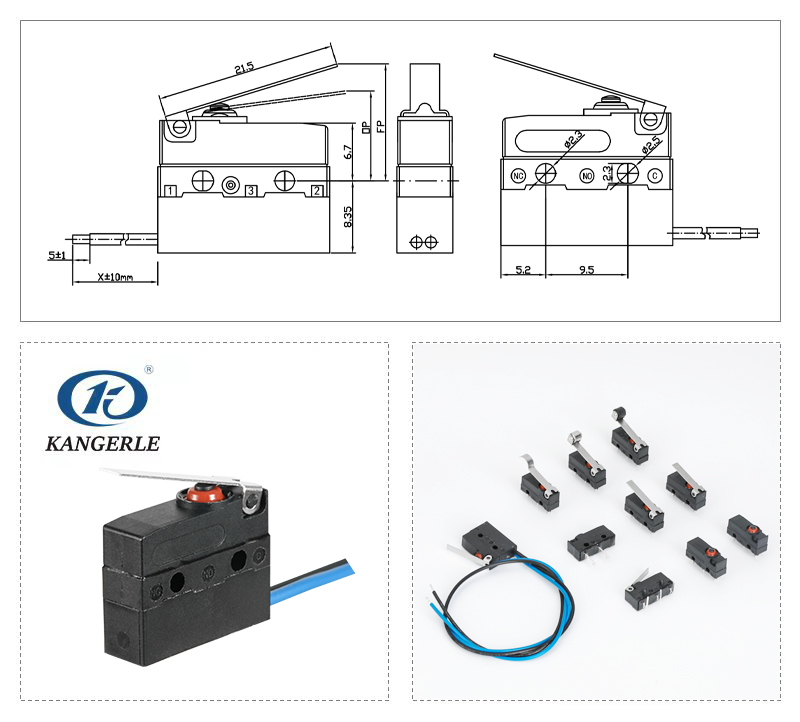

Waterproof Lever Micro Switch 250V AC Molds with Wire插图

Chinakel WS1 Waterproof Micro Switch Feature

Rated Load 5/10A  125/250V AC
Temperature 25T125
Operating Force ≤350gf(regular)
Circuit SPDT/SPST NO/SPST NC
Contact Resistance ≤500mΩ
Insulation Resistance ≥100MΩ(DC500V)
Withstand Voltage ≥100VAC
Protection Level IP67(wiring)
Electrical Life ≥10,000/50,000 cycles
Mechanical Life ≥1,000,000cycles
Certification CQC/CB
