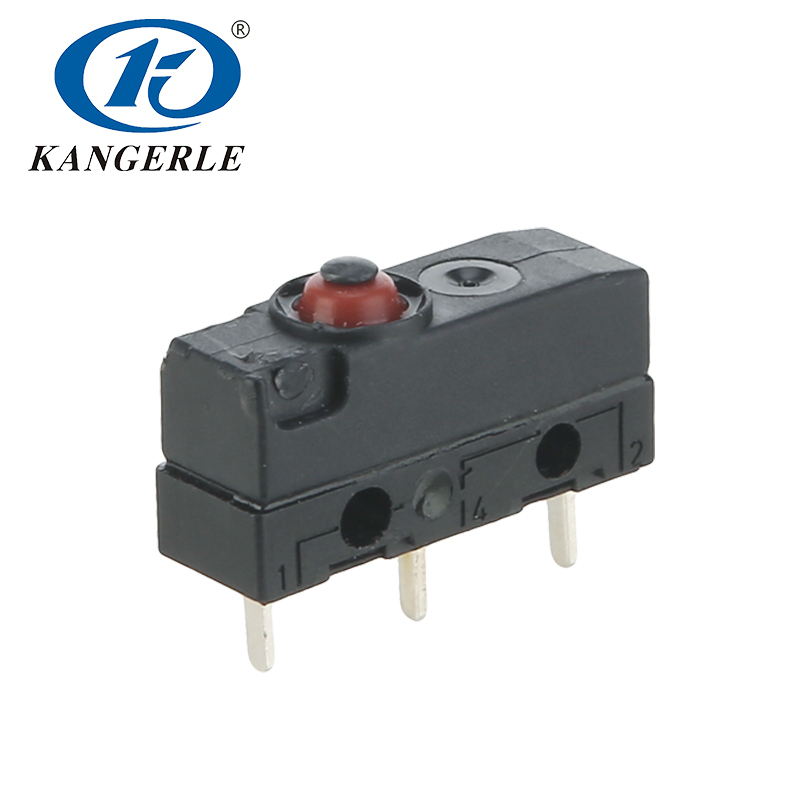

PCB Terminal Plunger Micro Switch IP67 Waterproof

This 3 pin micro switch WS1-10A-D is a miniature waterproof switch with PCB terminals, which can directly soldered onto PCB boards. Designed for high durability, this IP67 waterproof micro switch uses rubber rings and epoxy resin for excellent sealing. It’s versatile with various wiring terminals and lever types available to meet different application needs.



Product Series: WS1 Waterproof Micro Switch
Application: charging gun, car door lock, car seat belt lock, electric tailgate lock, shared bike bluetooth lock, E-scooter brake lock, high pressure car wash gun, lawn mower, automatic car washer,etc.

PCB Terminal Plunger Micro Switch IP67 Waterproof

This 3 pin micro switch WS1-10A-D is a miniature waterproof switch with PCB terminals, which can directly soldered onto PCB boards. Designed for high durability, this IP67 waterproof micro switch uses rubber rings and epoxy resin for excellent sealing. It’s versatile with various wiring terminals and lever types available to meet different application needs.



Product Series: WS1 Waterproof Micro Switch
Application: charging gun, car door lock, car seat belt lock, electric tailgate lock, shared bike bluetooth lock, E-scooter brake lock, high pressure car wash gun, lawn mower, automatic car washer,etc.

PCB Terminal Plunger Micro Switch IP67 Waterproof

This 3 pin micro switch WS1-10A-D is a miniature waterproof switch with PCB terminals, which can directly soldered onto PCB boards. Designed for high durability, this IP67 waterproof micro switch uses rubber rings and epoxy resin for excellent sealing. It’s versatile with various wiring terminals and lever types available to meet different application needs.



Product Series: WS1 Waterproof Micro Switch
Application: charging gun, car door lock, car seat belt lock, electric tailgate lock, shared bike bluetooth lock, E-scooter brake lock, high pressure car wash gun, lawn mower, automatic car washer,etc.

PCB Terminal Plunger Micro Switch IP67 Waterproof

This 3 pin micro switch WS1-10A-D is a miniature waterproof switch with PCB terminals, which can directly soldered onto PCB boards. Designed for high durability, this IP67 waterproof micro switch uses rubber rings and epoxy resin for excellent sealing. It’s versatile with various wiring terminals and lever types available to meet different application needs.



Product Series: WS1 Waterproof Micro Switch
Application: charging gun, car door lock, car seat belt lock, electric tailgate lock, shared bike bluetooth lock, E-scooter brake lock, high pressure car wash gun, lawn mower, automatic car washer,etc.

PRODUCT DETAIL

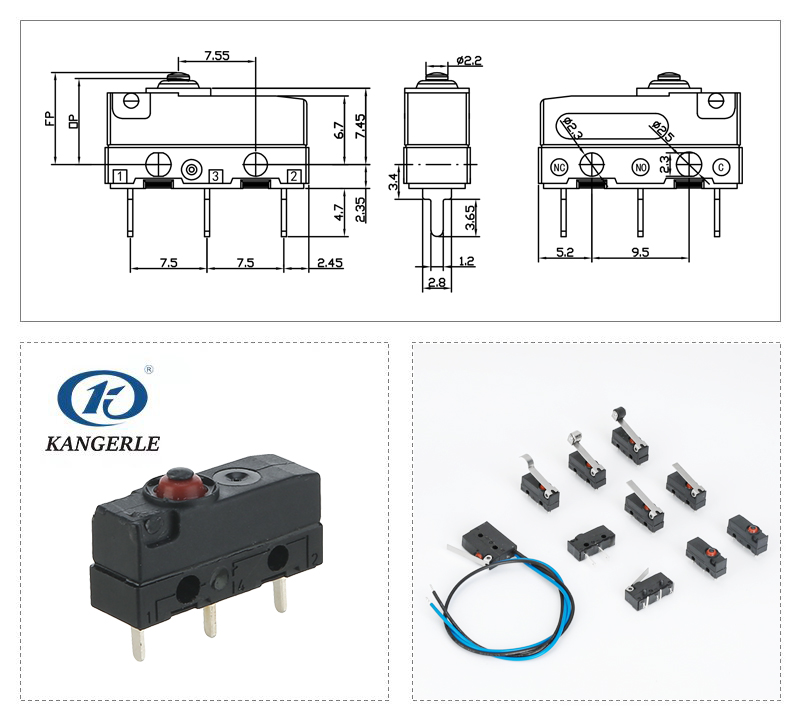

PCB Terminal Plunger Micro Switch IP67 Waterproof插图

Chinakel WS1 Waterproof Micro Switch Feature

Rated Load 5/10A  125/250V AC
Temperature 25T125
Operating Force ≤350gf(regular)
Circuit SPDT/SPST NO/SPST NC
Contact Resistance ≤500mΩ
Insulation Resistance ≥100MΩ(DC500V)
Withstand Voltage ≥100VAC
Protection Level IP67(wiring)
Electrical Life ≥10,000/50,000 cycles
Mechanical Life ≥1,000,000cycles
Certification CQC/CB
