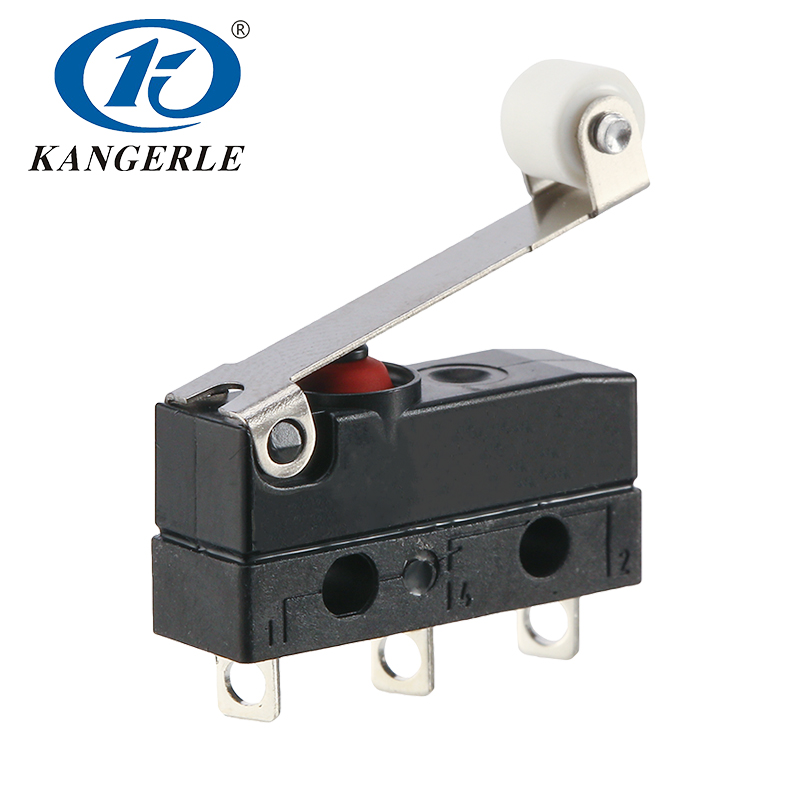

Miniature Sealed Micro Switch IP67 with Plastic Roller Lever

This sealed micro switch WS1-10A-7A is designed for harsh environments, featuring IP67 waterproof and dustproof sealing with rubber rings and epoxy resin. Equipped with a roller lever, it is more flexible to operate. This switch also supports a wide range of terminals and lever configurations to meet various application needs.



Product Series: WS1 Waterproof Micro Switch
Application: charging gun, car door lock, car seat belt lock, electric tailgate lock, shared bike bluetooth lock, E-scooter brake lock, high pressure car wash gun, lawn mower, automatic car washer,etc.

Miniature Sealed Micro Switch IP67 with Plastic Roller Lever

This sealed micro switch WS1-10A-7A is designed for harsh environments, featuring IP67 waterproof and dustproof sealing with rubber rings and epoxy resin. Equipped with a roller lever, it is more flexible to operate. This switch also supports a wide range of terminals and lever configurations to meet various application needs.



Product Series: WS1 Waterproof Micro Switch
Application: charging gun, car door lock, car seat belt lock, electric tailgate lock, shared bike bluetooth lock, E-scooter brake lock, high pressure car wash gun, lawn mower, automatic car washer,etc.

Miniature Sealed Micro Switch IP67 with Plastic Roller Lever

This sealed micro switch WS1-10A-7A is designed for harsh environments, featuring IP67 waterproof and dustproof sealing with rubber rings and epoxy resin. Equipped with a roller lever, it is more flexible to operate. This switch also supports a wide range of terminals and lever configurations to meet various application needs.



Product Series: WS1 Waterproof Micro Switch
Application: charging gun, car door lock, car seat belt lock, electric tailgate lock, shared bike bluetooth lock, E-scooter brake lock, high pressure car wash gun, lawn mower, automatic car washer,etc.

Miniature Sealed Micro Switch IP67 with Plastic Roller Lever

This sealed micro switch WS1-10A-7A is designed for harsh environments, featuring IP67 waterproof and dustproof sealing with rubber rings and epoxy resin. Equipped with a roller lever, it is more flexible to operate. This switch also supports a wide range of terminals and lever configurations to meet various application needs.



Product Series: WS1 Waterproof Micro Switch
Application: charging gun, car door lock, car seat belt lock, electric tailgate lock, shared bike bluetooth lock, E-scooter brake lock, high pressure car wash gun, lawn mower, automatic car washer,etc.

PRODUCT DETAIL

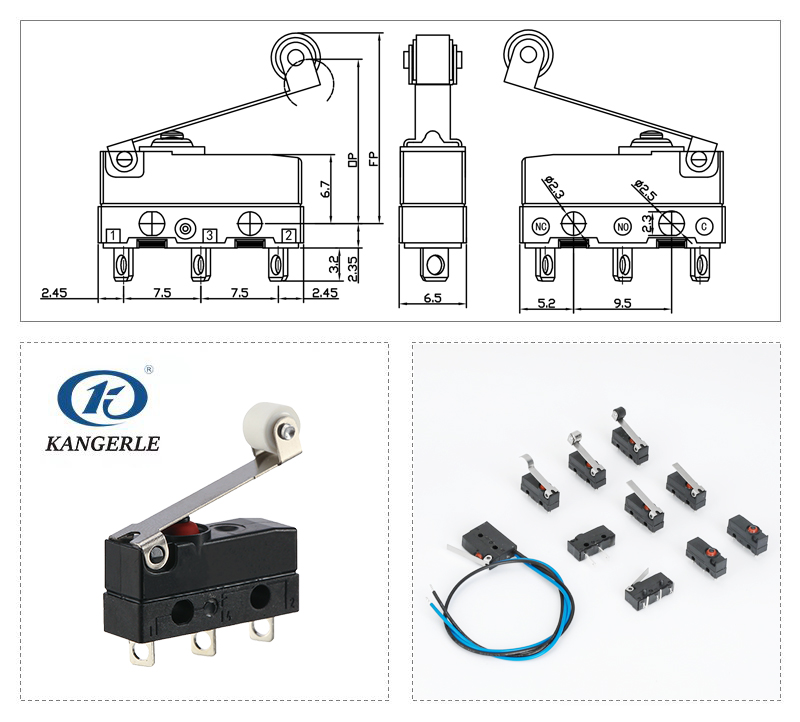

Miniature Sealed Micro Switch IP67 with Plastic Roller Lever插图

Chinakel WS1 Waterproof Micro Switch Feature

Rated Load 5/10A  125/250V AC
Temperature 25T125
Operating Force ≤350gf(regular)
Circuit SPDT/SPST NO/SPST NC
Contact Resistance ≤500mΩ
Insulation Resistance ≥100MΩ(DC500V)
Withstand Voltage ≥100VAC
Protection Level IP67(wiring)
Electrical Life ≥10,000/50,000 cycles
Mechanical Life ≥1,000,000cycles
Certification CQC/CB
