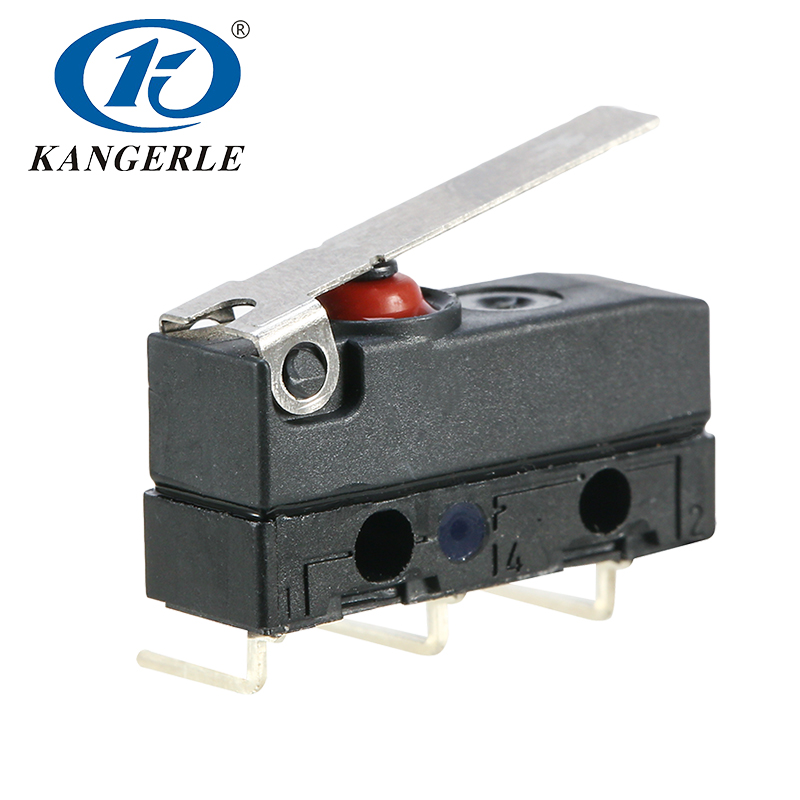

Right Side PCB Terminal Waterproof Micro Switch Molds with Straight Lever

Lever micro switch WS1-10A-2F featuring IP67 waterproofing, this micro switch ensures stable performance with rubber sealing rings and epoxy resin. It’s also available with lfet side solder terminals and other types of levers for customization.



Product Series: WS1 Waterproof Micro Switch
Application: charging gun, car door lock, car seat belt lock, electric tailgate lock, shared bike bluetooth lock, E-scooter brake lock, high pressure car wash gun, lawn mower, automatic car washer,etc.

Right Side PCB Terminal Waterproof Micro Switch Molds with Straight Lever

Lever micro switch WS1-10A-2F featuring IP67 waterproofing, this micro switch ensures stable performance with rubber sealing rings and epoxy resin. It’s also available with lfet side solder terminals and other types of levers for customization.



Product Series: WS1 Waterproof Micro Switch
Application: charging gun, car door lock, car seat belt lock, electric tailgate lock, shared bike bluetooth lock, E-scooter brake lock, high pressure car wash gun, lawn mower, automatic car washer,etc.

Right Side PCB Terminal Waterproof Micro Switch Molds with Straight Lever

Lever micro switch WS1-10A-2F featuring IP67 waterproofing, this micro switch ensures stable performance with rubber sealing rings and epoxy resin. It’s also available with lfet side solder terminals and other types of levers for customization.



Product Series: WS1 Waterproof Micro Switch
Application: charging gun, car door lock, car seat belt lock, electric tailgate lock, shared bike bluetooth lock, E-scooter brake lock, high pressure car wash gun, lawn mower, automatic car washer,etc.

Right Side PCB Terminal Waterproof Micro Switch Molds with Straight Lever

Lever micro switch WS1-10A-2F featuring IP67 waterproofing, this micro switch ensures stable performance with rubber sealing rings and epoxy resin. It’s also available with lfet side solder terminals and other types of levers for customization.



Product Series: WS1 Waterproof Micro Switch
Application: charging gun, car door lock, car seat belt lock, electric tailgate lock, shared bike bluetooth lock, E-scooter brake lock, high pressure car wash gun, lawn mower, automatic car washer,etc.

PRODUCT DETAIL

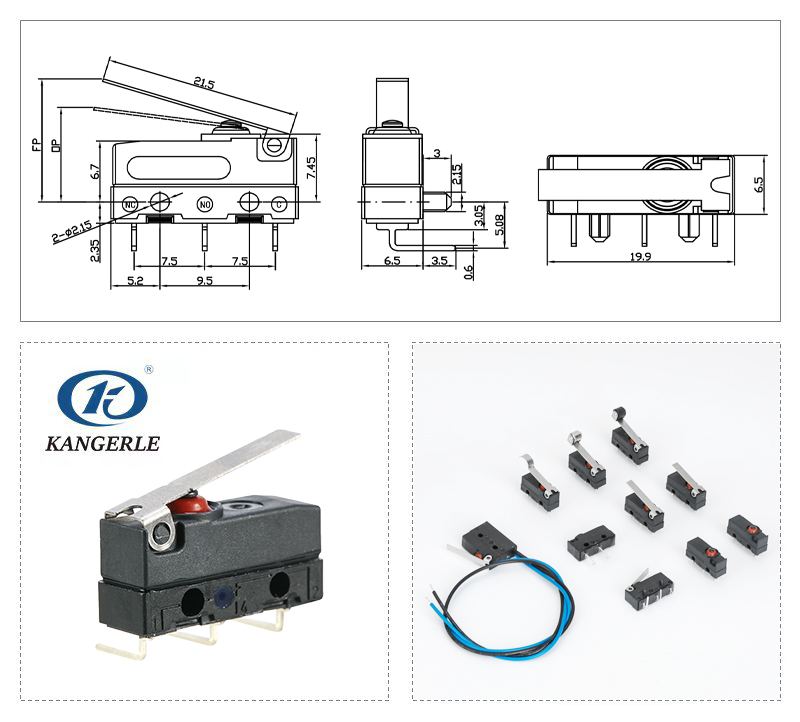

Right Side PCB Terminal Waterproof Micro Switch Molds with Straight Lever插图

Chinakel WS1 Waterproof Micro Switch Feature

Rated Load 5/10A  125/250V AC
Temperature 25T125
Operating Force ≤350gf(regular)
Circuit SPDT/SPST NO/SPST NC
Contact Resistance ≤500mΩ
Insulation Resistance ≥100MΩ(DC500V)
Withstand Voltage ≥100VAC
Protection Level IP67(wiring)
Electrical Life ≥10,000/50,000 cycles
Mechanical Life ≥1,000,000cycles
Certification CQC/CB
