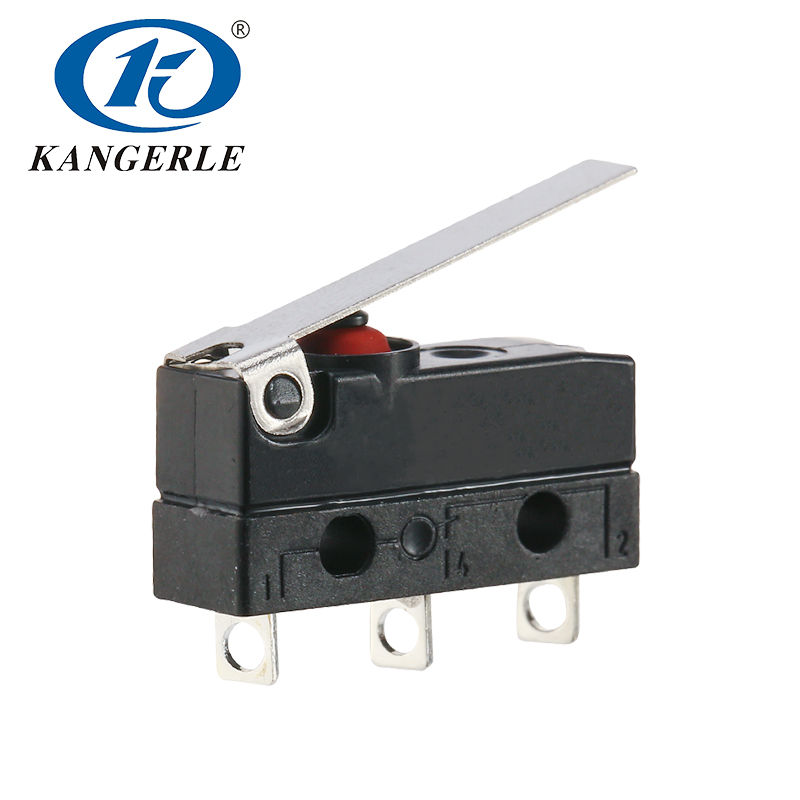

Straight Metal Lever Waterproof Micro Switch 250V AC 10A

Kangerle waterproof micro switch WS1-10A-2A is a SPDT miniature switch, with rated load 10A, 250V AC. It is widely used in home appliances due to its strong sealing performance and long electrical life cycles. There are also available with different types of terminals and levers for more options.



Product Series: WS1 Waterproof Micro Switch
Application: charging gun, car door lock, car seat belt lock, electric tailgate lock, shared bike bluetooth lock, E-scooter brake lock, high pressure car wash gun, lawn mower, automatic car washer,etc.

Straight Metal Lever Waterproof Micro Switch 250V AC 10A

Kangerle waterproof micro switch WS1-10A-2A is a SPDT miniature switch, with rated load 10A, 250V AC. It is widely used in home appliances due to its strong sealing performance and long electrical life cycles. There are also available with different types of terminals and levers for more options.



Product Series: WS1 Waterproof Micro Switch
Application: charging gun, car door lock, car seat belt lock, electric tailgate lock, shared bike bluetooth lock, E-scooter brake lock, high pressure car wash gun, lawn mower, automatic car washer,etc.

Straight Metal Lever Waterproof Micro Switch 250V AC 10A

Kangerle waterproof micro switch WS1-10A-2A is a SPDT miniature switch, with rated load 10A, 250V AC. It is widely used in home appliances due to its strong sealing performance and long electrical life cycles. There are also available with different types of terminals and levers for more options.



Product Series: WS1 Waterproof Micro Switch
Application: charging gun, car door lock, car seat belt lock, electric tailgate lock, shared bike bluetooth lock, E-scooter brake lock, high pressure car wash gun, lawn mower, automatic car washer,etc.

Straight Metal Lever Waterproof Micro Switch 250V AC 10A

Kangerle waterproof micro switch WS1-10A-2A is a SPDT miniature switch, with rated load 10A, 250V AC. It is widely used in home appliances due to its strong sealing performance and long electrical life cycles. There are also available with different types of terminals and levers for more options.



Product Series: WS1 Waterproof Micro Switch
Application: charging gun, car door lock, car seat belt lock, electric tailgate lock, shared bike bluetooth lock, E-scooter brake lock, high pressure car wash gun, lawn mower, automatic car washer,etc.

PRODUCT DETAIL

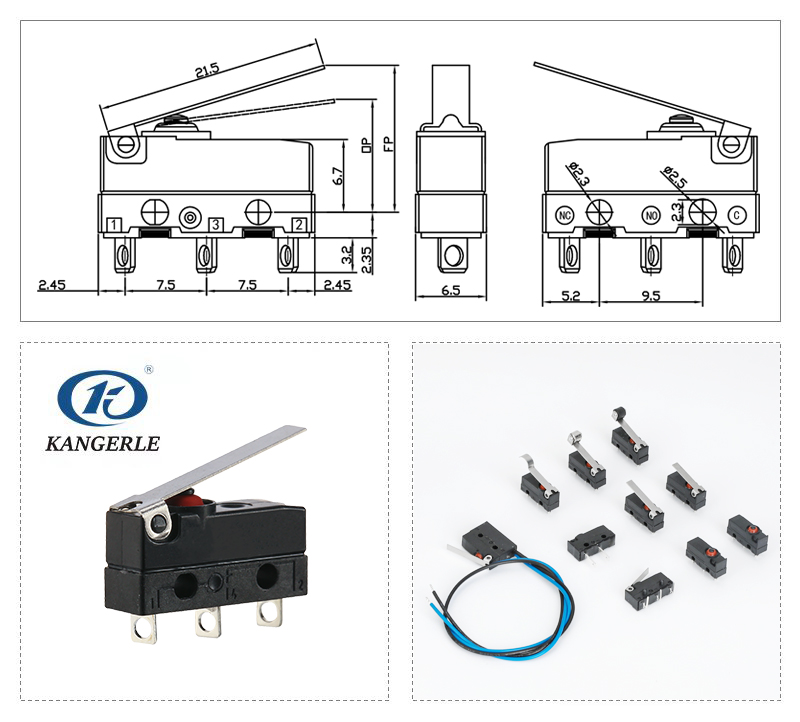

Straight Metal Lever Waterproof Micro Switch 250V AC 10A插图

Chinakel WS1 Waterproof Micro Switch Feature

Rated Load 5/10A  125/250V AC
Temperature 25T125
Operating Force ≤350gf(regular)
Circuit SPDT/SPST NO/SPST NC
Contact Resistance ≤500mΩ
Insulation Resistance ≥100MΩ(DC500V)
Withstand Voltage ≥100VAC
Protection Level IP67(wiring)
Electrical Life ≥10,000/50,000 cycles
Mechanical Life ≥1,000,000cycles
Certification CQC/CB
