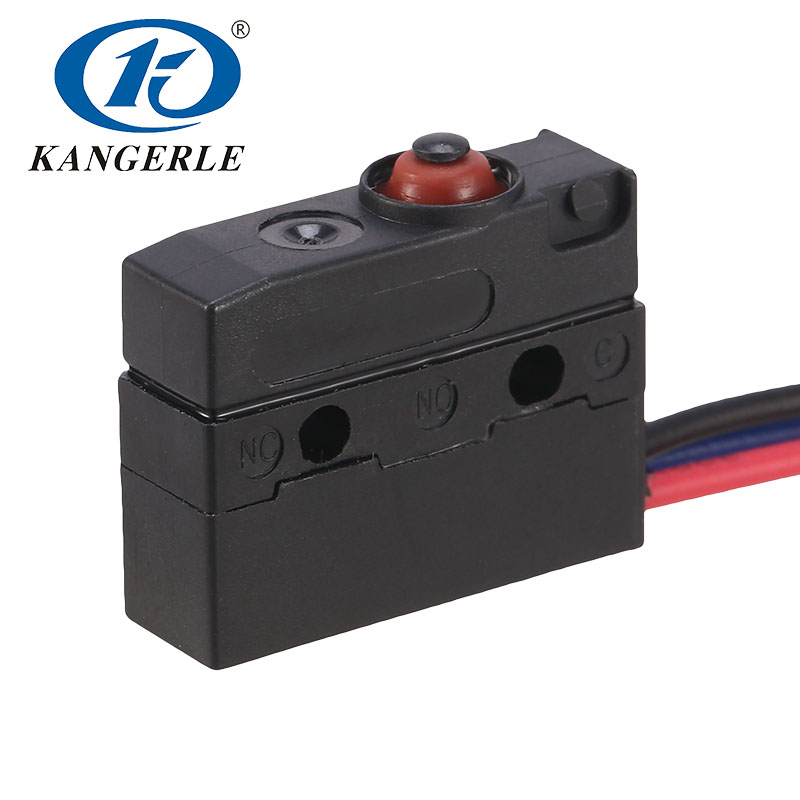

Pin Plunger IP67 Micro switch Molds with Wires Right Side Type

WS1-10A-03 is a SPDT sealed miniature switch, which achieves stable sealing performance through rubber sealing rings and epoxy resin filling. SPST-NO model  and SPST-NC model are also available. After wiring, it can reach IP67 waterproof and dustproof protection. This series of switches has a wide range of wiring terminals and is also equipped with different types of levers.



Product Series: WS1 Waterproof Micro Switch
Application: lawn mower, automatic car washer, charging gun, car door lock, car seat belt lock, electric tailgate lock, shared bike bluetooth lock, E-scooter brake lock, high pressure car washing gun, etc.

Pin Plunger IP67 Micro switch Molds with Wires Right Side Type

WS1-10A-03 is a SPDT sealed miniature switch, which achieves stable sealing performance through rubber sealing rings and epoxy resin filling. SPST-NO model  and SPST-NC model are also available. After wiring, it can reach IP67 waterproof and dustproof protection. This series of switches has a wide range of wiring terminals and is also equipped with different types of levers.



Product Series: WS1 Waterproof Micro Switch
Application: lawn mower, automatic car washer, charging gun, car door lock, car seat belt lock, electric tailgate lock, shared bike bluetooth lock, E-scooter brake lock, high pressure car washing gun, etc.

Pin Plunger IP67 Micro switch Molds with Wires Right Side Type

WS1-10A-03 is a SPDT sealed miniature switch, which achieves stable sealing performance through rubber sealing rings and epoxy resin filling. SPST-NO model  and SPST-NC model are also available. After wiring, it can reach IP67 waterproof and dustproof protection. This series of switches has a wide range of wiring terminals and is also equipped with different types of levers.



Product Series: WS1 Waterproof Micro Switch
Application: lawn mower, automatic car washer, charging gun, car door lock, car seat belt lock, electric tailgate lock, shared bike bluetooth lock, E-scooter brake lock, high pressure car washing gun, etc.

Pin Plunger IP67 Micro switch Molds with Wires Right Side Type

WS1-10A-03 is a SPDT sealed miniature switch, which achieves stable sealing performance through rubber sealing rings and epoxy resin filling. SPST-NO model  and SPST-NC model are also available. After wiring, it can reach IP67 waterproof and dustproof protection. This series of switches has a wide range of wiring terminals and is also equipped with different types of levers.



Product Series: WS1 Waterproof Micro Switch
Application: lawn mower, automatic car washer, charging gun, car door lock, car seat belt lock, electric tailgate lock, shared bike bluetooth lock, E-scooter brake lock, high pressure car washing gun, etc.

PRODUCT DETAIL

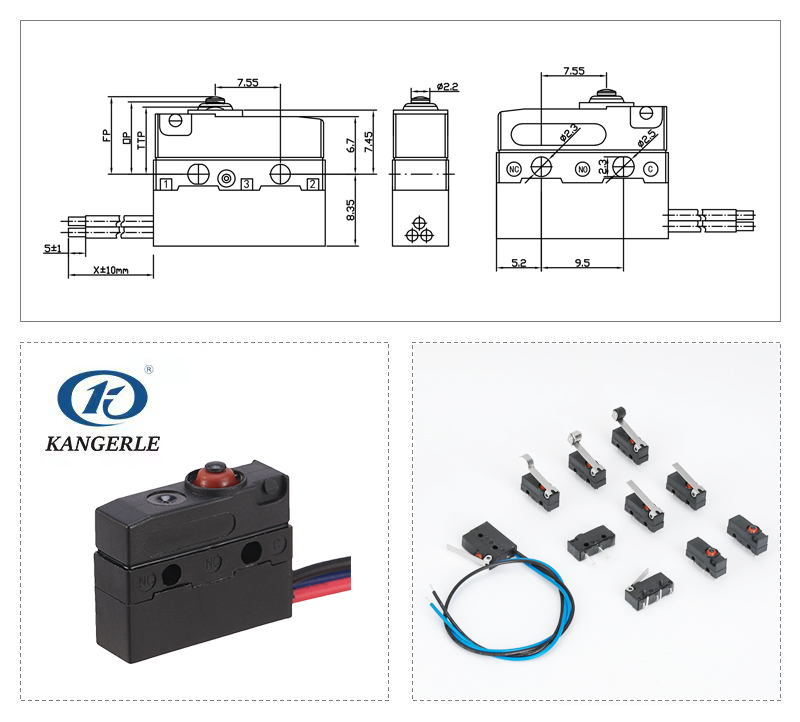

Pin Plunger IP67 Micro switch Molds with Wires Right Side Type插图

Chinakel WS1 Waterproof Micro Switch Feature

Rated Load 5/10A  125/250V AC
Temperature 25T125
Operating Force ≤350gf(regular)
Circuit SPDT/SPST NO/SPST NC
Contact Resistance ≤500mΩ
Insulation Resistance ≥100MΩ(DC500V)
Withstand Voltage ≥100VAC
Protection Level IP67(wiring)
Electrical Life ≥10,000/50,000 cycles
Mechanical Life ≥1,000,000cycles
Certification CQC/CB
