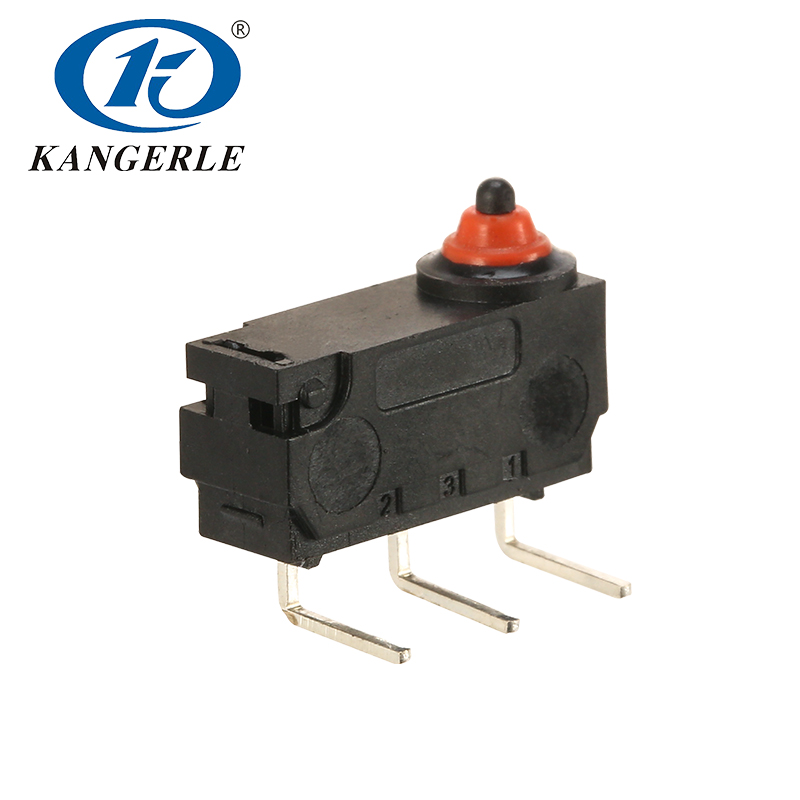

PCB 3 Pin Micro Momentary Waterproof Switch IP67

PCB micro switch KW2-1A-G-B is a micro momentary waterproof switch, with 3 PCB terminals. It is a hermetically sealed micro switch, which can effectively block exrenal dust and moisture from entering the interior of the switch. Due to its strong dust-proof and watrproof properties, this series of switch is very suitable for use in some harsh environments.



Product Series: KW2 Waterproof Micro Switch

Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool

Chat Now
Send email to us
WhatsApp

PCB 3 Pin Micro Momentary Waterproof Switch IP67

PCB micro switch KW2-1A-G-B is a micro momentary waterproof switch, with 3 PCB terminals. It is a hermetically sealed micro switch, which can effectively block exrenal dust and moisture from entering the interior of the switch. Due to its strong dust-proof and watrproof properties, this series of switch is very suitable for use in some harsh environments.



Product Series: KW2 Waterproof Micro Switch

Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool

Chat Now
Send email to us
WhatsApp

PCB 3 Pin Micro Momentary Waterproof Switch IP67

PCB micro switch KW2-1A-G-B is a micro momentary waterproof switch, with 3 PCB terminals. It is a hermetically sealed micro switch, which can effectively block exrenal dust and moisture from entering the interior of the switch. Due to its strong dust-proof and watrproof properties, this series of switch is very suitable for use in some harsh environments.



Product Series: KW2 Waterproof Micro Switch

Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool

Chat Now
Send email to us
WhatsApp

PCB 3 Pin Micro Momentary Waterproof Switch IP67

PCB micro switch KW2-1A-G-B is a micro momentary waterproof switch, with 3 PCB terminals. It is a hermetically sealed micro switch, which can effectively block exrenal dust and moisture from entering the interior of the switch. Due to its strong dust-proof and watrproof properties, this series of switch is very suitable for use in some harsh environments.



Product Series: KW2 Waterproof Micro Switch

Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, shifter, car central lock, headlight controller, shared bikes, intelligent closestool

Chat Now
Chat Now
Send email to us
whatsapp

PRODUCT DETAIL

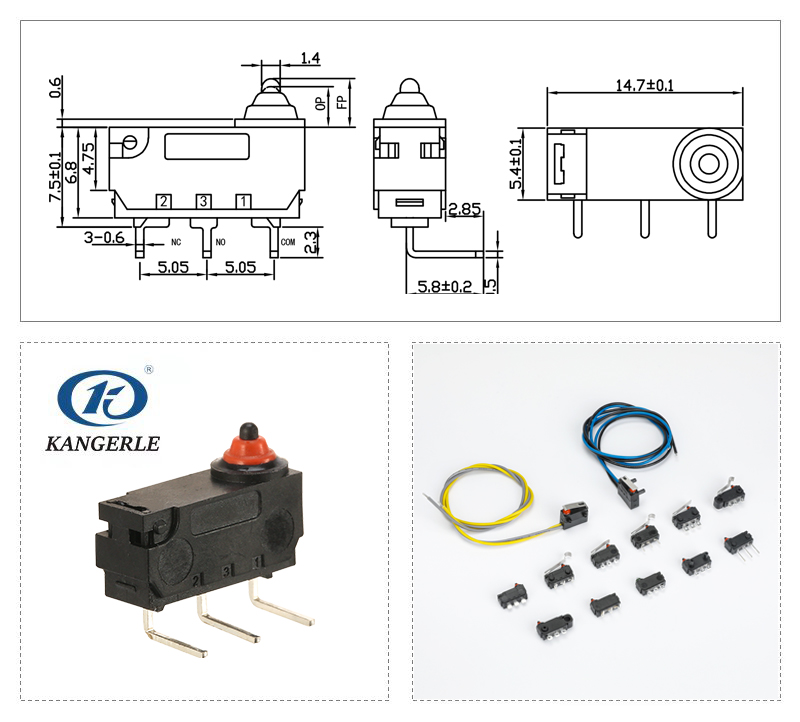

PCB 3 Pin Micro Momentary Waterproof Switch IP67插图

Chinakel KW2 Waterproof Micro Switch Feature

Rated Load 0.1A 125/250V AC; 3A 12V DC
Temperature 40T85
Operating Force ≤150gf（regular）
Circuit SPDT/SPST NO/SPST NC
Contact Resistance ≤500mΩ
Insulation Resistance ≥100MΩ（DC500V）
Withstand Voltage ≥1500VAC
Protection Level IP67(wiring)
Electrical Life ≥100,000 cycles
Mechanical Life ≥500,000cycles
Certification CQC/CB
