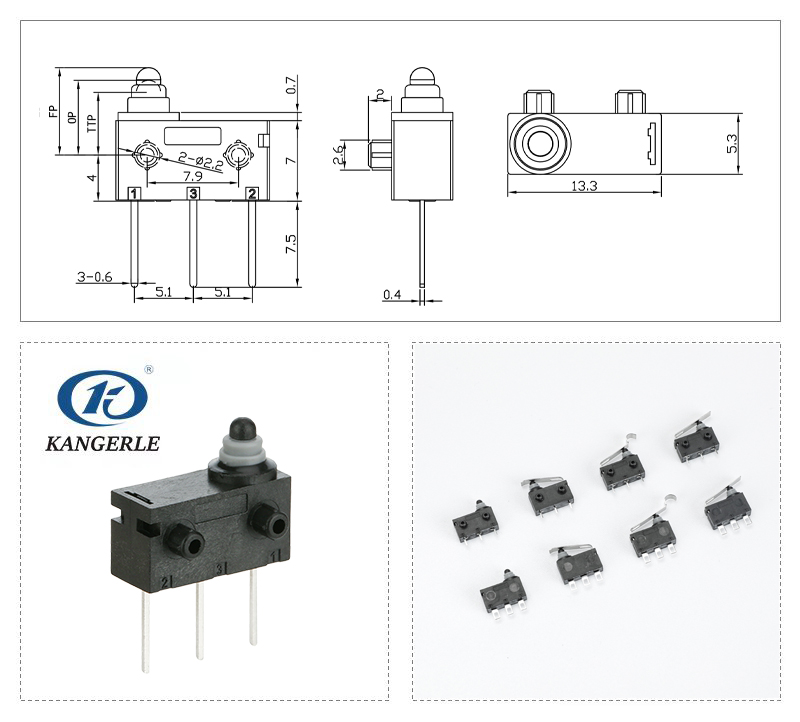

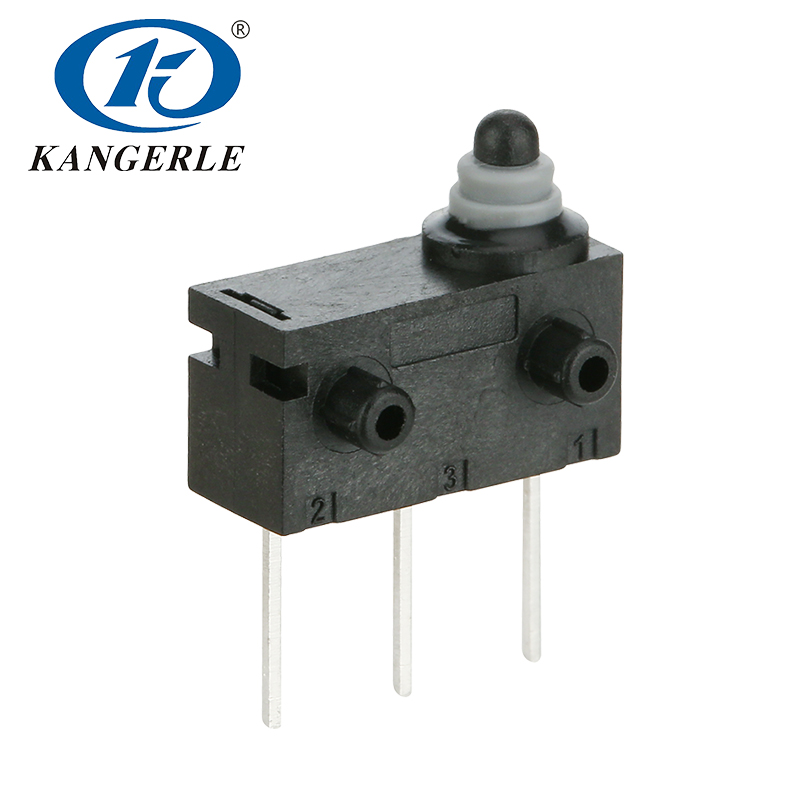

This micro switch KW4-1A-C-B3 is euqipped with 3 PCB terminals, which can be directly mounted onto PCB board. It boasts IP67 waterproof and dustproof capabilities after wiring, achieved through rubber sealing rings and epoxy resin. KW4 series also comes in SPST-NO and SPST-NC models, with various levers and fixed columns to choose from.

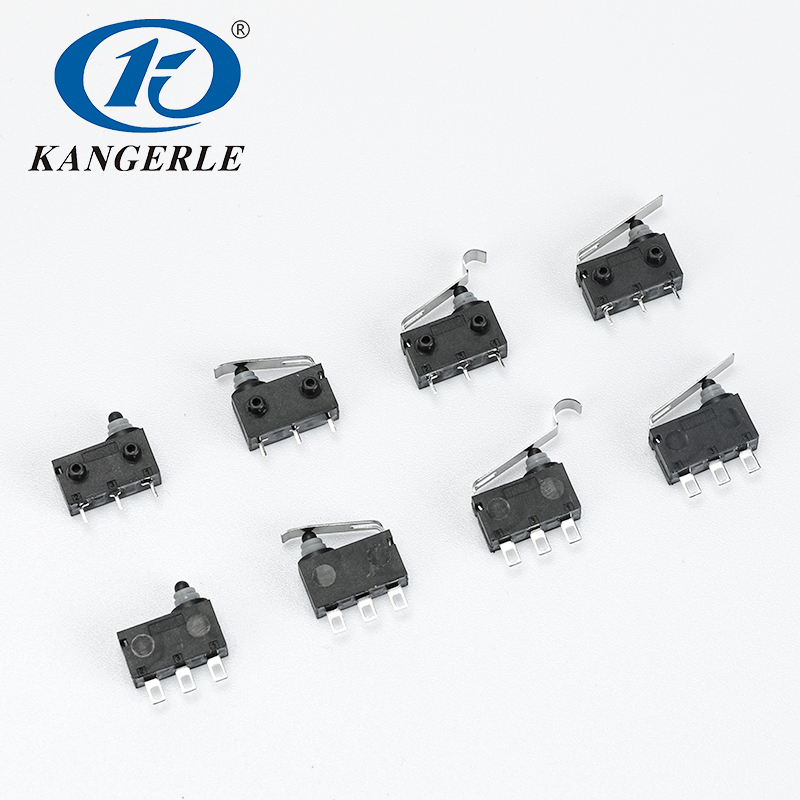

Product Series: KW4 Waterproof Micro Switch
Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, car central lock, car air conditioner, E-scooter brake lock, shared bikes lock, motorcycle anti-theft device, etc.
This micro switch KW4-1A-C-B3 is euqipped with 3 PCB terminals, which can be directly mounted onto PCB board. It boasts IP67 waterproof and dustproof capabilities after wiring, achieved through rubber sealing rings and epoxy resin. KW4 series also comes in SPST-NO and SPST-NC models, with various levers and fixed columns to choose from.
Product Series: KW4 Waterproof Micro Switch
Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, car central lock, car air conditioner, E-scooter brake lock, shared bikes lock, motorcycle anti-theft device, etc.
This micro switch KW4-1A-C-B3 is euqipped with 3 PCB terminals, which can be directly mounted onto PCB board. It boasts IP67 waterproof and dustproof capabilities after wiring, achieved through rubber sealing rings and epoxy resin. KW4 series also comes in SPST-NO and SPST-NC models, with various levers and fixed columns to choose from.
Product Series: KW4 Waterproof Micro Switch
Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, car central lock, car air conditioner, E-scooter brake lock, shared bikes lock, motorcycle anti-theft device, etc.
This micro switch KW4-1A-C-B3 is euqipped with 3 PCB terminals, which can be directly mounted onto PCB board. It boasts IP67 waterproof and dustproof capabilities after wiring, achieved through rubber sealing rings and epoxy resin. KW4 series also comes in SPST-NO and SPST-NC models, with various levers and fixed columns to choose from.
Product Series: KW4 Waterproof Micro Switch
Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, car central lock, car air conditioner, E-scooter brake lock, shared bikes lock, motorcycle anti-theft device, etc.
| Rated Load | DC12V 0.1A |
| Temperature | -10~60℃ |
| Operating Force | ≤150gf (regular) |
| Circuit | SPDT/SPST NO/SPST NC |
| Contact Resistance | ≤500mΩ |
| Insulation Resistance | ≥100MΩ（DC500V） |
| Withstand Voltage | ≥100VAC |
| Protection Level | IP67(wiring) |
| Electrical Life | ≥100,000 cycles |
| Mechanical Life | ≥300,000cycles |
