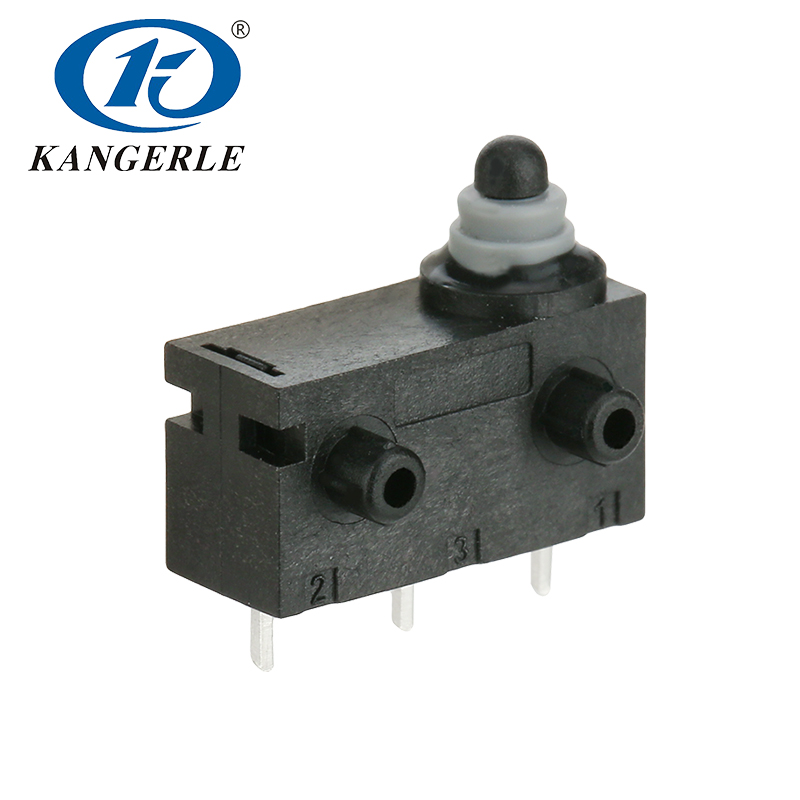

12V Waterproof SPDT Micro Switch PCB Terminals

Featuring IP67 waterproof and dustproof protection, this micro switch KW4-1A-B-B3 is sealed with rubber rings and epoxy resin for enhanced reliability. With high sealing performance and reliable quality, KW4 series is widely used in the automotive industry. It also supports different types of levers and various dimensions of posts for versatile applications.





Product Series: KW4 Waterproof Micro Switch
Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, car central lock, car air conditioner, E-scooter brake lock, shared bikes lock, motorcycle anti-theft device, etc.

12V Waterproof SPDT Micro Switch PCB Terminals

Featuring IP67 waterproof and dustproof protection, this micro switch KW4-1A-B-B3 is sealed with rubber rings and epoxy resin for enhanced reliability. With high sealing performance and reliable quality, KW4 series is widely used in the automotive industry. It also supports different types of levers and various dimensions of posts for versatile applications.





Product Series: KW4 Waterproof Micro Switch
Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, car central lock, car air conditioner, E-scooter brake lock, shared bikes lock, motorcycle anti-theft device, etc.

12V Waterproof SPDT Micro Switch PCB Terminals

Featuring IP67 waterproof and dustproof protection, this micro switch KW4-1A-B-B3 is sealed with rubber rings and epoxy resin for enhanced reliability. With high sealing performance and reliable quality, KW4 series is widely used in the automotive industry. It also supports different types of levers and various dimensions of posts for versatile applications.





Product Series: KW4 Waterproof Micro Switch
Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, car central lock, car air conditioner, E-scooter brake lock, shared bikes lock, motorcycle anti-theft device, etc.

12V Waterproof SPDT Micro Switch PCB Terminals

Featuring IP67 waterproof and dustproof protection, this micro switch KW4-1A-B-B3 is sealed with rubber rings and epoxy resin for enhanced reliability. With high sealing performance and reliable quality, KW4 series is widely used in the automotive industry. It also supports different types of levers and various dimensions of posts for versatile applications.





Product Series: KW4 Waterproof Micro Switch
Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, car central lock, car air conditioner, E-scooter brake lock, shared bikes lock, motorcycle anti-theft device, etc.

PRODUCT DETAIL

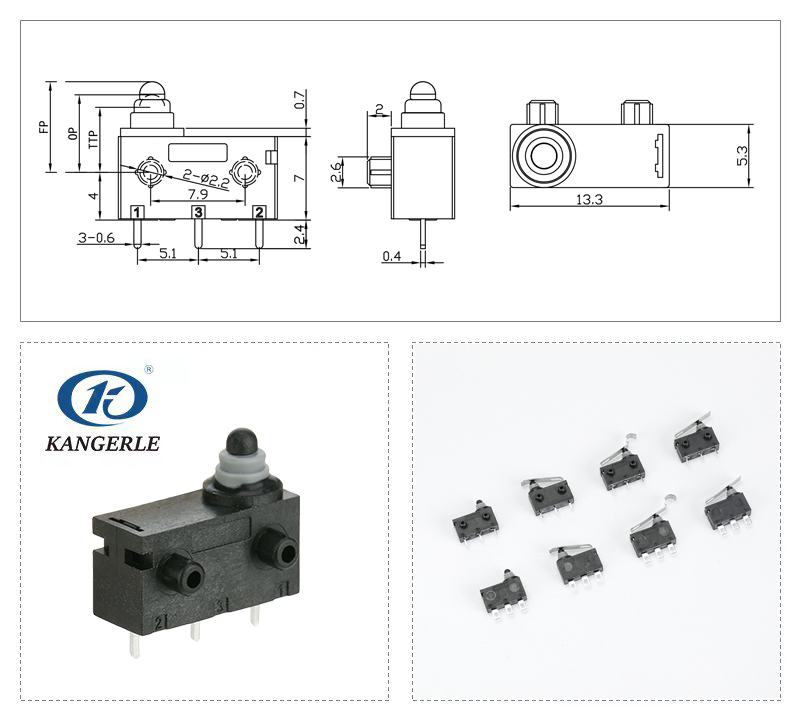

12V Waterproof SPDT Micro Switch PCB Terminals插图

Chinakel KW4Waterproof Micro Switch Feature

Rated Load DC12V 0.1A
Temperature -10~60℃
Operating Force ≤150gf (regular)
Circuit SPDT/SPST NO/SPST NC
Contact Resistance ≤500mΩ
Insulation Resistance ≥100MΩ(DC500V)
Withstand Voltage ≥100VAC
Protection Level IP67(wiring)
Electrical Life ≥100,000 cycles
Mechanical Life ≥300,000cycles
