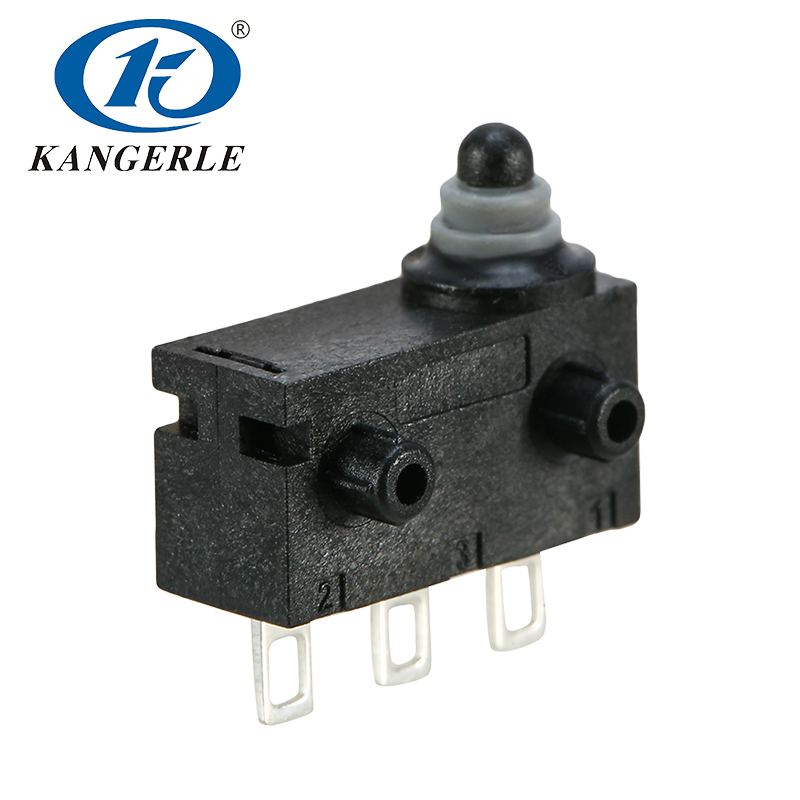

40T85 Micro Switch IP67 Molds with Solder Terminals

Micro push button switch kw4-1a-a-b3 is a hermetically sealed switch, which can achieve IP67 rating waterproof and dustproof protection. Its working temperature range is from -40°C to 85°C, which is suitable for the applications on auto parts. This KW4 series is also available in lever types for much more options about customization.





Product Series: KW4 Waterproof Micro Switch
Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, car central lock, car air conditioner, E-scooter brake lock, shared bikes lock, motorcycle anti-theft device, etc.

40T85 Micro Switch IP67 Molds with Solder Terminals

Micro push button switch kw4-1a-a-b3 is a hermetically sealed switch, which can achieve IP67 rating waterproof and dustproof protection. Its working temperature range is from -40°C to 85°C, which is suitable for the applications on auto parts. This KW4 series is also available in lever types for much more options about customization.





Product Series: KW4 Waterproof Micro Switch
Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, car central lock, car air conditioner, E-scooter brake lock, shared bikes lock, motorcycle anti-theft device, etc.

40T85 Micro Switch IP67 Molds with Solder Terminals

Micro push button switch kw4-1a-a-b3 is a hermetically sealed switch, which can achieve IP67 rating waterproof and dustproof protection. Its working temperature range is from -40°C to 85°C, which is suitable for the applications on auto parts. This KW4 series is also available in lever types for much more options about customization.





Product Series: KW4 Waterproof Micro Switch
Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, car central lock, car air conditioner, E-scooter brake lock, shared bikes lock, motorcycle anti-theft device, etc.

40T85 Micro Switch IP67 Molds with Solder Terminals

Micro push button switch kw4-1a-a-b3 is a hermetically sealed switch, which can achieve IP67 rating waterproof and dustproof protection. Its working temperature range is from -40°C to 85°C, which is suitable for the applications on auto parts. This KW4 series is also available in lever types for much more options about customization.





Product Series: KW4 Waterproof Micro Switch
Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, car central lock, car air conditioner, E-scooter brake lock, shared bikes lock, motorcycle anti-theft device, etc.

PRODUCT DETAIL

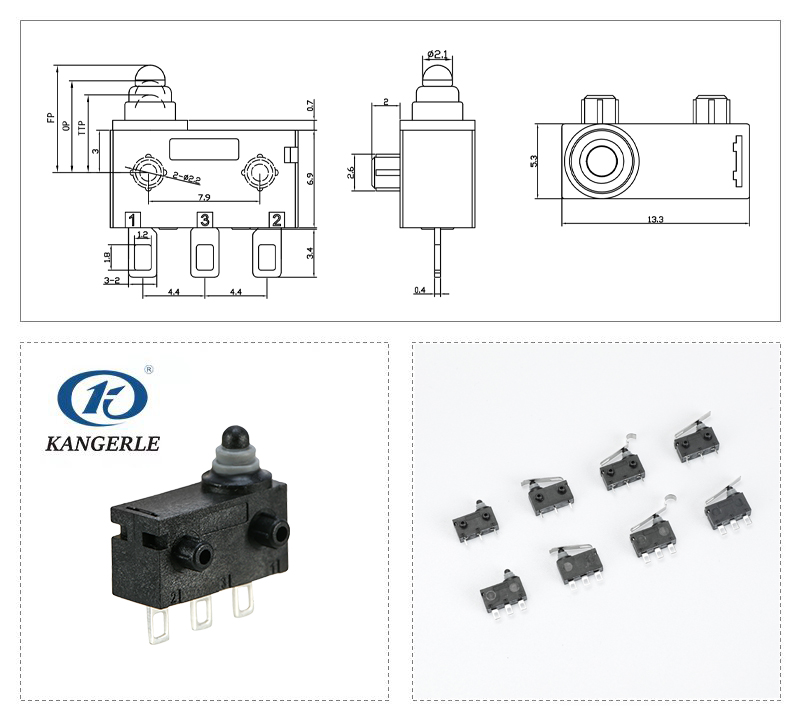

40T85 Micro Switch IP67 Molds with Solder Terminals插图

Chinakel KW4Waterproof Micro Switch Feature

Rated Load DC12V 0.1A
Temperature -10~60℃
Operating Force ≤150gf (regular)
Circuit SPDT/SPST NO/SPST NC
Contact Resistance ≤500mΩ
Insulation Resistance ≥100MΩ(DC500V)
Withstand Voltage ≥100VAC
Protection Level IP67(wiring)
Electrical Life ≥100,000 cycles
Mechanical Life ≥300,000cycles
