The KW5-1A-01-B-B waterproof micro switch is designed for dependable signal control in EV charging guns and connectors. It combines an IP67-sealed housing with a three-wire SPDT circuit. Its 300 mm pre-wired leads and four-hole mounting flange allow secure integration into compact charging assemblies. With ratings of 3A at 12VDC or 0.1A at 125/250VAC, a -40°C to +85°C operating range, and a minimum mechanical life of 500,000 cycles, it supports plug detection, lock-position feedback, and charging safety interlock control.
Product Series: KW5 Series.
Applications: EV charging connectors.
The KW5-1A-01-B-B waterproof micro switch is designed for dependable signal control in EV charging guns and connectors. It combines an IP67-sealed housing with a three-wire SPDT circuit. Its 300 mm pre-wired leads and four-hole mounting flange allow secure integration into compact charging assemblies. With ratings of 3A at 12VDC or 0.1A at 125/250VAC, a -40°C to +85°C operating range, and a minimum mechanical life of 500,000 cycles, it supports plug detection, lock-position feedback, and charging safety interlock control.
Product Series: KW5 Series.
Applications: EV charging connectors.
The KW5-1A-01-B-B waterproof micro switch is designed for dependable signal control in EV charging guns and connectors. It combines an IP67-sealed housing with a three-wire SPDT circuit. Its 300 mm pre-wired leads and four-hole mounting flange allow secure integration into compact charging assemblies. With ratings of 3A at 12VDC or 0.1A at 125/250VAC, a -40°C to +85°C operating range, and a minimum mechanical life of 500,000 cycles, it supports plug detection, lock-position feedback, and charging safety interlock control.
Product Series: KW5 Series.
Applications: EV charging connectors.
The KW5-1A-01-B-B waterproof micro switch is designed for dependable signal control in EV charging guns and connectors. It combines an IP67-sealed housing with a three-wire SPDT circuit. Its 300 mm pre-wired leads and four-hole mounting flange allow secure integration into compact charging assemblies. With ratings of 3A at 12VDC or 0.1A at 125/250VAC, a -40°C to +85°C operating range, and a minimum mechanical life of 500,000 cycles, it supports plug detection, lock-position feedback, and charging safety interlock control.
Product Series: KW5 Series.
Applications: EV charging connectors.

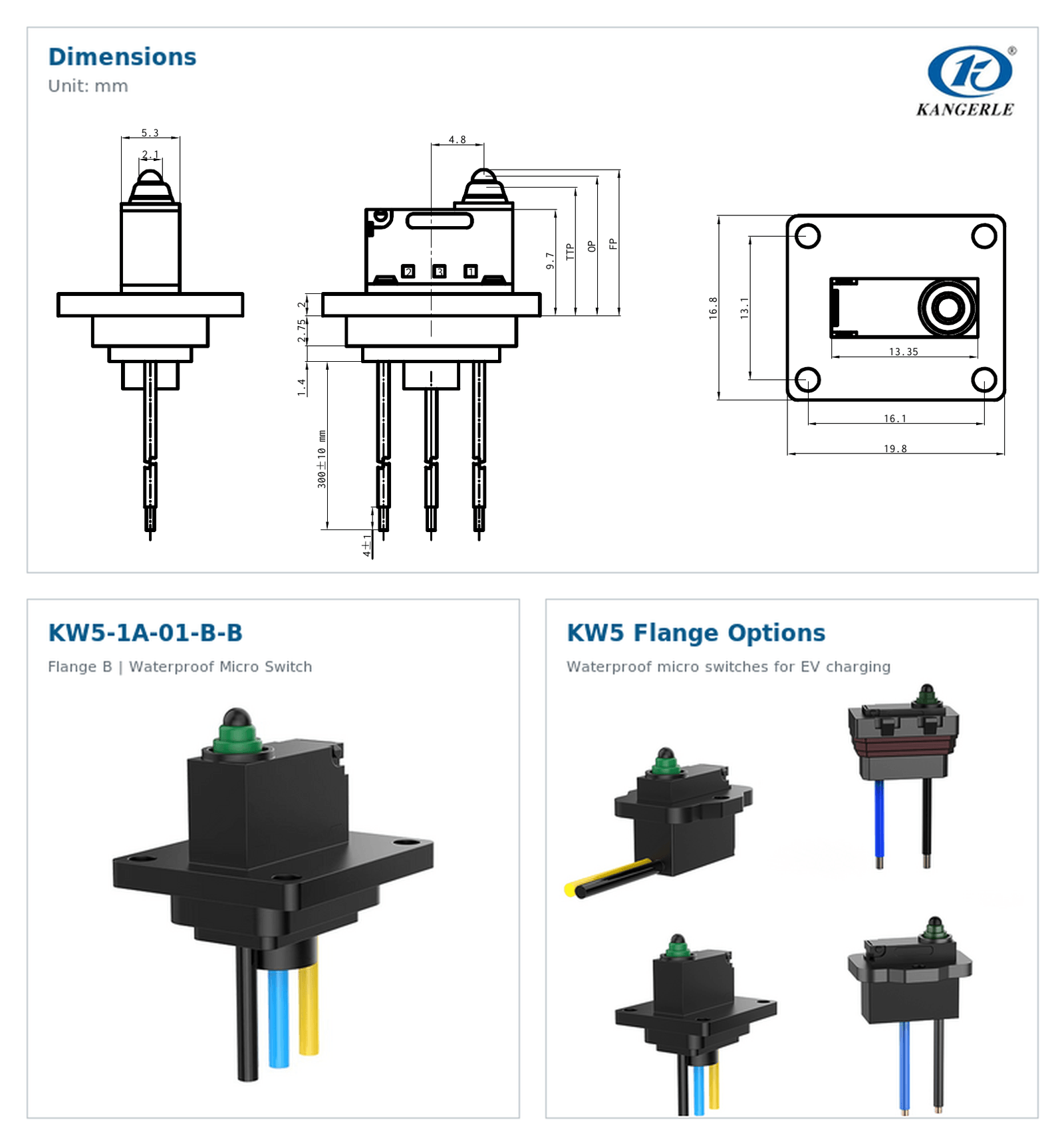

| Rated Load | DC12V 3A / AC250V 0.1A Resistive Load |
| Operating Force | 200(gf) MAX |
| Free Position(FP) | 13.5mm MAX |
| Operating Position(OP) | 12.7±0.7mm |
| Total Travel Position(TTP) | 11.65mm MIN |
| Protection Degree | IP67 |
| Insulation Resistance | 100MΩMin (500V DC) |
| Electrical Life | Min 100,000/cycles |
| Mechanical Life | Min 500,000/cycles |
| Temperature | -40℃ ~ +85℃ |
| Certification | RoHS |
