SPDT Micro Switch with Short Straight Lever

Designed for precision, this SPDT miacro switch with a metal lever features snap action and a wide operating force range. It offers multiple terminal and lever configurations, ensuring reliable performance across various applications.



Product Series: KW12 Micro Switch
Application: disinfection cabinet, meat grinder, gas stove, electric drying rack, water heater, tire inflator, ice machine, juice extractor, electric kettle, etc.

SPDT Micro Switch with Short Straight Lever

Designed for precision, this SPDT miacro switch with a metal lever features snap action and a wide operating force range. It offers multiple terminal and lever configurations, ensuring reliable performance across various applications.



Product Series: KW12 Micro Switch
Application: disinfection cabinet, meat grinder, gas stove, electric drying rack, water heater, tire inflator, ice machine, juice extractor, electric kettle, etc.

SPDT Micro Switch with Short Straight Lever

Designed for precision, this SPDT miacro switch with a metal lever features snap action and a wide operating force range. It offers multiple terminal and lever configurations, ensuring reliable performance across various applications.



Product Series: KW12 Micro Switch
Application: disinfection cabinet, meat grinder, gas stove, electric drying rack, water heater, tire inflator, ice machine, juice extractor, electric kettle, etc.

SPDT Micro Switch with Short Straight Lever

Designed for precision, this SPDT miacro switch with a metal lever features snap action and a wide operating force range. It offers multiple terminal and lever configurations, ensuring reliable performance across various applications.



Product Series: KW12 Micro Switch
Application: disinfection cabinet, meat grinder, gas stove, electric drying rack, water heater, tire inflator, ice machine, juice extractor, electric kettle, etc.

PRODUCT DETAIL

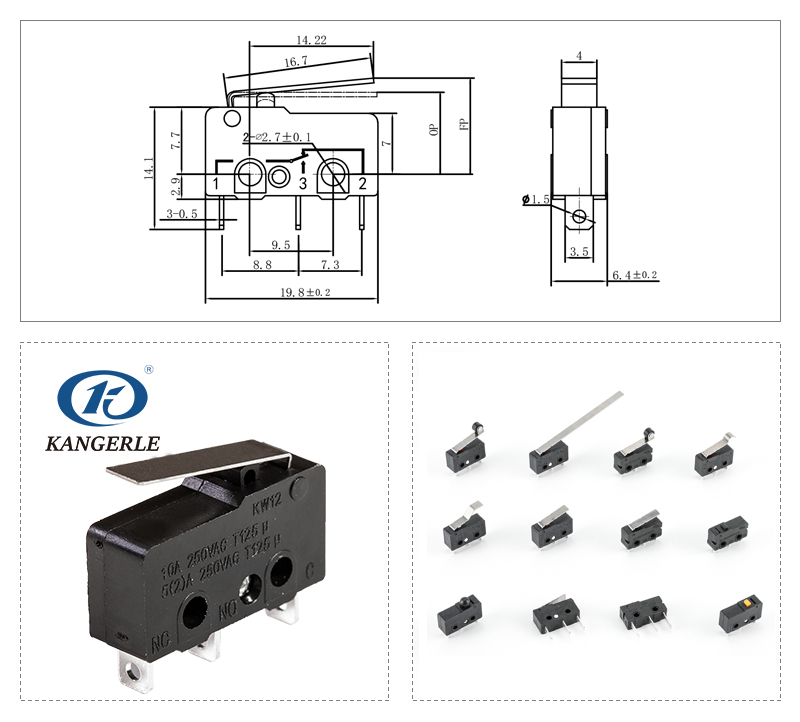

SPDT Micro Switch with Short Straight Lever插图

Chinakel KW12 Micro Switch Feature

Rated Load 0.1-10A 125/250VAC;0.1-5A 36VDC
Temperature 25T125
Operating Force 170±30gf
Terminal Type solder terminal/110# quick-connect terminal/PCB terminal …
Lever Type no lever/short lever/middle lever/long lever/arc lever/roller lever…
Circuit SPDT/SPST NO/SPST NC
Operating Speed 0.1mm-1m/s
Operating Frequency mechanical 60 cycles/min;electrical 15 cycles/min
Contact Resistance ≤50mΩ (initial value)
Insulation Resistance ≥100MΩ(500VDC,1min)
Withstand Voltage ≥1500VAC,50/60HZ,1min
Electrical Life ≥10,000/50,000 times
Mechanical Life ≥1,000,000 times
Certification UL/TUV/CQC/CE
