Normally open plunger micro switch KW3-6C-E

The micro switch KW3-6C-E is a two-pin, normally open push button switch designed with upward-bent terminals. This unique configuration optimizes internal space by minimizing the distance between the PCB and components. Its compact design and reliable performance make it an excellent choice for space-constrained applications in household appliances and consumer electronics, ensuring efficient functionality and seamless integration.

Product Series: KW3 Micro Switch

Application: homeappliances, power tools, electronic equipment, automation equipment, communication equipment, automotive electronics, instruments, etc.



Normally open plunger micro switch KW3-6C-E

The micro switch KW3-6C-E is a two-pin, normally open push button switch designed with upward-bent terminals. This unique configuration optimizes internal space by minimizing the distance between the PCB and components. Its compact design and reliable performance make it an excellent choice for space-constrained applications in household appliances and consumer electronics, ensuring efficient functionality and seamless integration.

Product Series: KW3 Micro Switch

Application: homeappliances, power tools, electronic equipment, automation equipment, communication equipment, automotive electronics, instruments, etc.



Normally open plunger micro switch KW3-6C-E

The micro switch KW3-6C-E is a two-pin, normally open push button switch designed with upward-bent terminals. This unique configuration optimizes internal space by minimizing the distance between the PCB and components. Its compact design and reliable performance make it an excellent choice for space-constrained applications in household appliances and consumer electronics, ensuring efficient functionality and seamless integration.

Product Series: KW3 Micro Switch

Application: homeappliances, power tools, electronic equipment, automation equipment, communication equipment, automotive electronics, instruments, etc.



Normally open plunger micro switch KW3-6C-E

The micro switch KW3-6C-E is a two-pin, normally open push button switch designed with upward-bent terminals. This unique configuration optimizes internal space by minimizing the distance between the PCB and components. Its compact design and reliable performance make it an excellent choice for space-constrained applications in household appliances and consumer electronics, ensuring efficient functionality and seamless integration.

Product Series: KW3 Micro Switch

Application: homeappliances, power tools, electronic equipment, automation equipment, communication equipment, automotive electronics, instruments, etc.



PRODUCT DETAIL

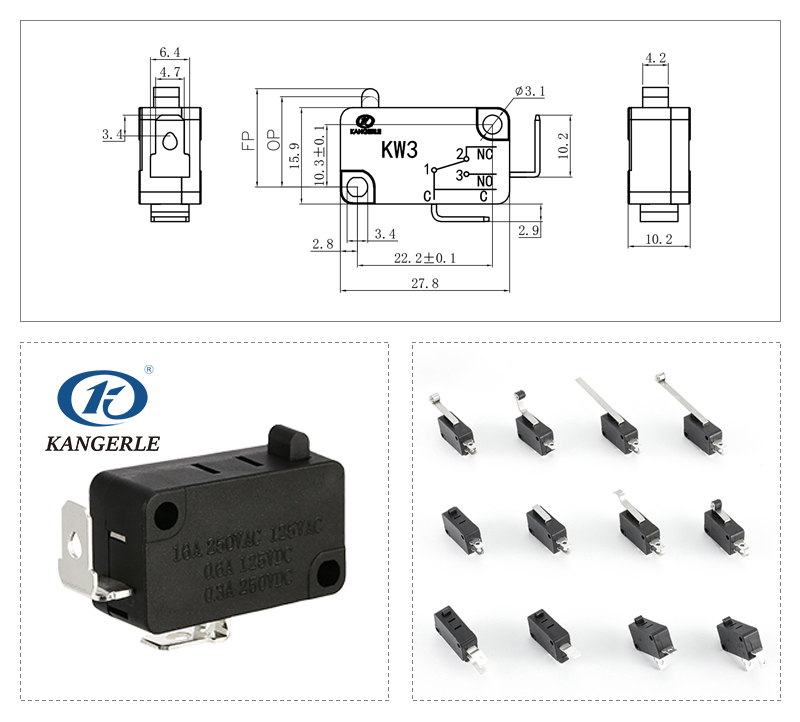

Normally open plunger micro switch KW3-6C-E插图

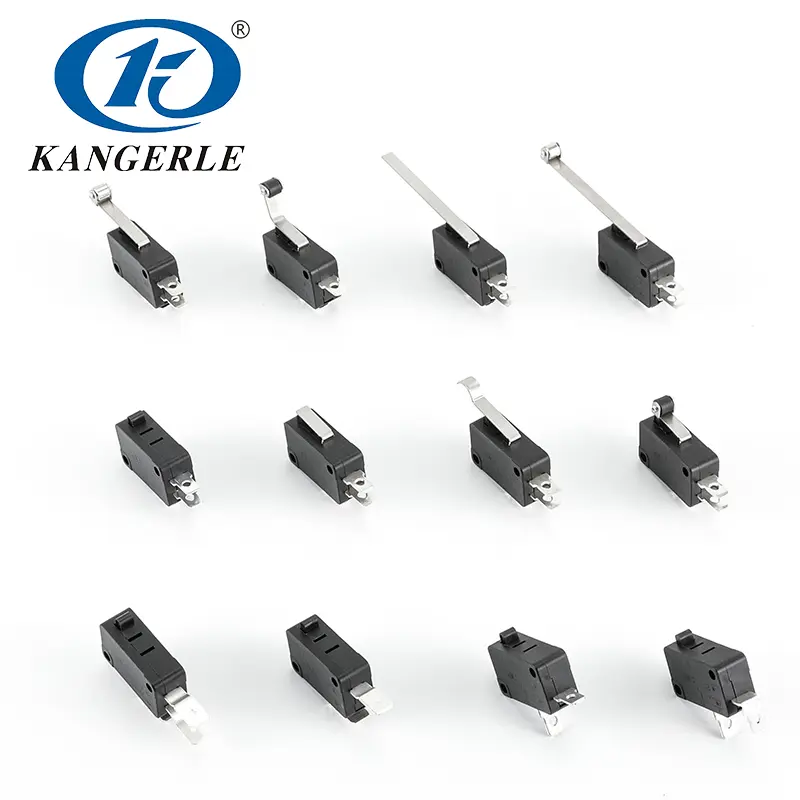

Chinakel KW3 Micro Switch Feature

Rated Load 0.1-16A 125/250VAC;0.1-10A 36VDC
Temperature T105/25T125
Operating Force 200±30/100±20/30±10gf…
Terminal Type 187#0.8/187#0.5/250/solder…
Lever Type no lever/short lever/middle lever/long lever/arc lever/roller lever…
Circuit SPDT/SPST NO/SPST NC
Operating Speed 0.1mm-1m/s
Operating Frequency mechanical 60 cycles/min;electrical 15 cycles/min
Contact Resistance ≤50mΩ (initial value)
Insulation Resistance ≥100MΩ(500VDC,1min)
Withstand Voltage ≥1500VAC,50/60HZ,1min
Electrical Life ≥10,000/50,000 次
Mechanical Life ≥1,000,000 次
Certification UL/TUV/CQC/CE
