Micro switch long lever KW3-6C-13D-C

The micro switch is a snap action switch that has a micro contact gap. It has the characteristics of small compact size, high sensitivity, and tiny operation travel. There are three types of KW3 micro switch series: SPST-NO, SPST-NC and SPDT, with a wide range of operation forces and equipped with various types of wiring terminals and levers. This switch has a strong current load capacity and long electrical life, which makes it the most commonly used component in power tools and electrical equipment.

Product Series: KW3 Micro Switch

Application: homeappliances, power tools, electronic equipment, automation equipment, communication equipment, automotive electronics, instruments, etc.

Payment Terms: L/C,D/A,D/P,T/T

Micro switch long lever KW3-6C-13D-C

The micro switch is a snap action switch that has a micro contact gap. It has the characteristics of small compact size, high sensitivity, and tiny operation travel. There are three types of KW3 micro switch series: SPST-NO, SPST-NC and SPDT, with a wide range of operation forces and equipped with various types of wiring terminals and levers. This switch has a strong current load capacity and long electrical life, which makes it the most commonly used component in power tools and electrical equipment.

Product Series: KW3 Micro Switch

Application: homeappliances, power tools, electronic equipment, automation equipment, communication equipment, automotive electronics, instruments, etc.

Payment Terms: L/C,D/A,D/P,T/T

Micro switch long lever KW3-6C-13D-C

The micro switch is a snap action switch that has a micro contact gap. It has the characteristics of small compact size, high sensitivity, and tiny operation travel. There are three types of KW3 micro switch series: SPST-NO, SPST-NC and SPDT, with a wide range of operation forces and equipped with various types of wiring terminals and levers. This switch has a strong current load capacity and long electrical life, which makes it the most commonly used component in power tools and electrical equipment.

Product Series: KW3 Micro Switch

Application: homeappliances, power tools, electronic equipment, automation equipment, communication equipment, automotive electronics, instruments, etc.

Payment Terms: L/C,D/A,D/P,T/T

Micro switch long lever KW3-6C-13D-C

The micro switch is a snap action switch that has a micro contact gap. It has the characteristics of small compact size, high sensitivity, and tiny operation travel. There are three types of KW3 micro switch series: SPST-NO, SPST-NC and SPDT, with a wide range of operation forces and equipped with various types of wiring terminals and levers. This switch has a strong current load capacity and long electrical life, which makes it the most commonly used component in power tools and electrical equipment.

Product Series: KW3 Micro Switch

Application: homeappliances, power tools, electronic equipment, automation equipment, communication equipment, automotive electronics, instruments, etc.

Payment Terms: L/C,D/A,D/P,T/T

PRODUCT DETAIL

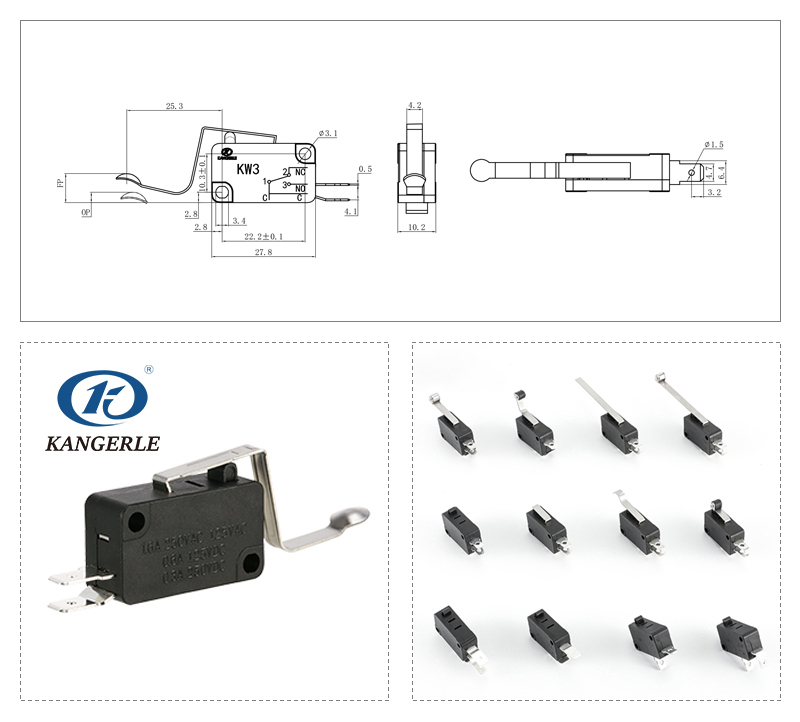

Micro switch long lever KW3-6C-13D-C插图

Chinakel KW3 Micro Switch Feature

Rated Load 0.1-16A 125/250VAC;0.1-10A 36VDC
Temperature T105/25T125
Operating Force 200±30/100±20/30±10gf…
Terminal Type 187#0.8/187#0.5/250/solder…

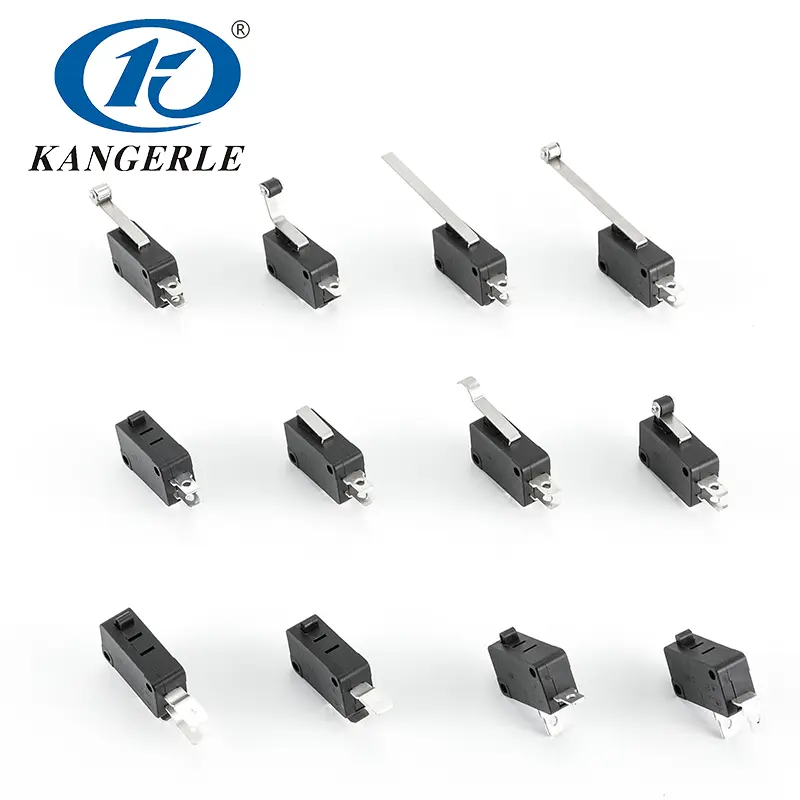

Lever Type no lever/short lever/middle lever/long lever/arc lever/roller lever…
Circuit SPDT/SPST NO/SPST NC
Operating Speed 0.1mm-1m/s
Operating Frequency mechanical 60 cycles/min;electrical 15 cycles/min
Contact Resistance ≤50mΩ (initial value)
Insulation Resistance ≥100MΩ(500VDC,1min)
Withstand Voltage ≥1500VAC,50/60HZ,1min
Electrical Life ≥10,000/50,000 次
Mechanical Life ≥1,000,000 次
Certification UL/TUV/CQC/CE
