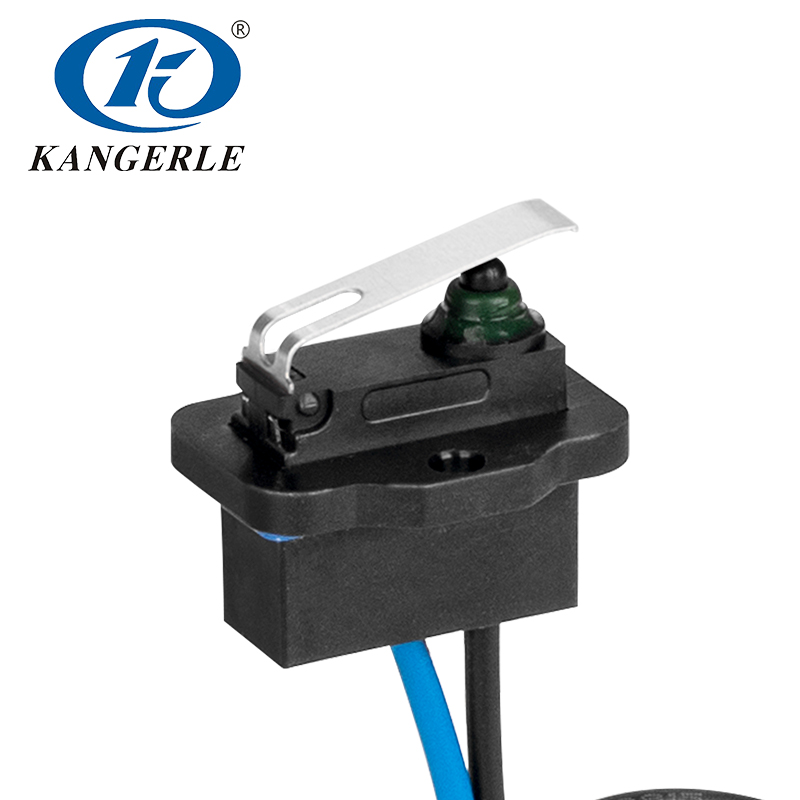

Lever Micro Switch IP67 Molds with Built-in Resistor

  • Combining the micro switch and resistor into one component streamlines circuit design and installation
  • Consolidated design conserves space by minimizing component count, ideal for confined applications
  • Varied lever configurations and resistance values available for the integrated resistor, offering versatility
  • IP67 rating for dust and waterproof protection

Product Series: IP67 Micro Switch KW5
Application: New energy vehicle charging gun

Lever Micro Switch IP67 Molds with Built-in Resistor

  • Combining the micro switch and resistor into one component streamlines circuit design and installation
  • Consolidated design conserves space by minimizing component count, ideal for confined applications
  • Varied lever configurations and resistance values available for the integrated resistor, offering versatility
  • IP67 rating for dust and waterproof protection

Product Series: IP67 Micro Switch KW5
Application: New energy vehicle charging gun

Lever Micro Switch IP67 Molds with Built-in Resistor

  • Combining the micro switch and resistor into one component streamlines circuit design and installation
  • Consolidated design conserves space by minimizing component count, ideal for confined applications
  • Varied lever configurations and resistance values available for the integrated resistor, offering versatility
  • IP67 rating for dust and waterproof protection

Product Series: IP67 Micro Switch KW5
Application: New energy vehicle charging gun

Lever Micro Switch IP67 Molds with Built-in Resistor

  • Combining the micro switch and resistor into one component streamlines circuit design and installation
  • Consolidated design conserves space by minimizing component count, ideal for confined applications
  • Varied lever configurations and resistance values available for the integrated resistor, offering versatility
  • IP67 rating for dust and waterproof protection

Product Series: IP67 Micro Switch KW5
Application: New energy vehicle charging gun

PRODUCT DETAIL

Lever Micro Switch IP67 Molds with Built-in Resistor



Chinakel KW5 Waterproof Micro Switch Feature

Rated Load 0.1A 125/250V AC; 3A 12V DC
Temperature 40T85
Operating Force ≤150gf(regular)
Circuit SPDT/SPST NO/SPST NC
Contact Resistance ≤500mΩ
Insulation Resistance ≥100MΩ(DC500V)
Withstand Voltage 100V AC(50~60Hz)/1Min
Protection Level IP67(wiring)
Electrical Life ≥100,000 cycles
Mechanical Life ≥500,000cycles
