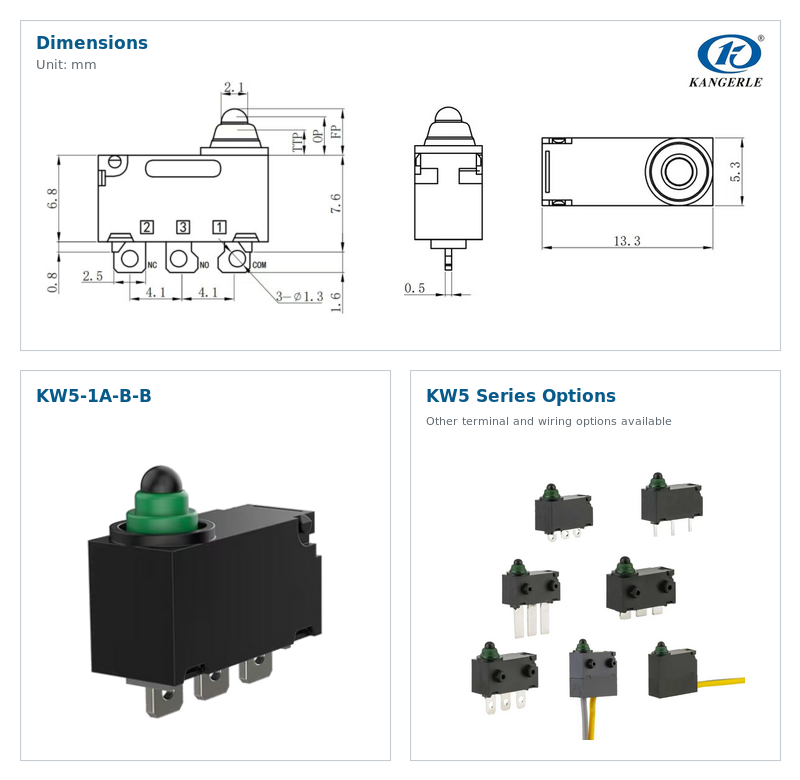

The compact KW5 waterproof micro switch features IP67-rated protection, reliable snap-action response, and an operating temperature range of -40°C to +85°C. Rated at 0.1A 125/250VAC or 3A 12VDC, it delivers dependable switching with an electrical life of at least 100,000 cycles. Designed for EV charging guns, it is ideal for trigger detection, locking feedback, and connection-status sensing in demanding automotive environments.
Product Series: KW5 Series.
Applications: EV charging connectors.
The compact KW5 waterproof micro switch features IP67-rated protection, reliable snap-action response, and an operating temperature range of -40°C to +85°C. Rated at 0.1A 125/250VAC or 3A 12VDC, it delivers dependable switching with an electrical life of at least 100,000 cycles. Designed for EV charging guns, it is ideal for trigger detection, locking feedback, and connection-status sensing in demanding automotive environments.
Product Series: KW5 Series.
Applications: EV charging connectors.
The compact KW5 waterproof micro switch features IP67-rated protection, reliable snap-action response, and an operating temperature range of -40°C to +85°C. Rated at 0.1A 125/250VAC or 3A 12VDC, it delivers dependable switching with an electrical life of at least 100,000 cycles. Designed for EV charging guns, it is ideal for trigger detection, locking feedback, and connection-status sensing in demanding automotive environments.
Product Series: KW5 Series.
Applications: EV charging connectors.
The compact KW5 waterproof micro switch features IP67-rated protection, reliable snap-action response, and an operating temperature range of -40°C to +85°C. Rated at 0.1A 125/250VAC or 3A 12VDC, it delivers dependable switching with an electrical life of at least 100,000 cycles. Designed for EV charging guns, it is ideal for trigger detection, locking feedback, and connection-status sensing in demanding automotive environments.
Product Series: KW5 Series.
Applications: EV charging connectors.
| Rated Load | 0.1 A at 125/250 VAC; 3 A at 12 VDC |
| Temperature | -40 to +85 ℃ |
| Operating Force | ≤ 150gf |
| Circuit | SPDT/SPST NC/SPST NO |
| Contact Resistance | ≤ 500MΩ |
| Withstand Voltage | 100 VAC, 50/60 Hz, 1 min |
| Protection Degree | IP67 (after wire soldering) |
| Insulation Resistance | ≥100 MΩ at 500 VDC |
| Mechanical Life | ≥ 500000 times |
| Electrical Life | ≥ 100000 times |
| KW5 Certification | RoHS |
