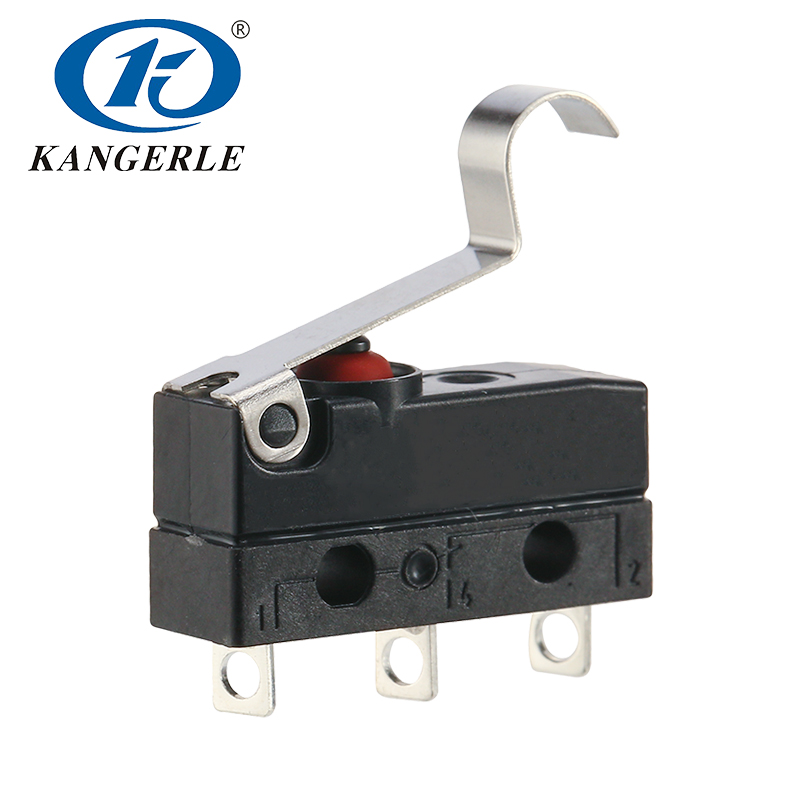

Arc Lever Micro Switch IP67 with 3 Solder Terminals

Kangerle miniature sealed micro switch WS1-10A-4A is equipped with a long arc lever and 3 solder terminals. After wiring, this IP67 waterproof switch ensures reliable operation with rubber and epoxy resin sealing, providing strong protection against water and dust. It also comes with various wiring terminals and lever options for adaptable use.



Product Series: WS1 Waterproof Micro Switch
Application: charging gun, car door lock, car seat belt lock, electric tailgate lock, shared bike bluetooth lock, E-scooter brake lock, high pressure car wash gun, lawn mower, automatic car washer,etc.

Arc Lever Micro Switch IP67 with 3 Solder Terminals

Kangerle miniature sealed micro switch WS1-10A-4A is equipped with a long arc lever and 3 solder terminals. After wiring, this IP67 waterproof switch ensures reliable operation with rubber and epoxy resin sealing, providing strong protection against water and dust. It also comes with various wiring terminals and lever options for adaptable use.



Product Series: WS1 Waterproof Micro Switch
Application: charging gun, car door lock, car seat belt lock, electric tailgate lock, shared bike bluetooth lock, E-scooter brake lock, high pressure car wash gun, lawn mower, automatic car washer,etc.

Arc Lever Micro Switch IP67 with 3 Solder Terminals

Kangerle miniature sealed micro switch WS1-10A-4A is equipped with a long arc lever and 3 solder terminals. After wiring, this IP67 waterproof switch ensures reliable operation with rubber and epoxy resin sealing, providing strong protection against water and dust. It also comes with various wiring terminals and lever options for adaptable use.



Product Series: WS1 Waterproof Micro Switch
Application: charging gun, car door lock, car seat belt lock, electric tailgate lock, shared bike bluetooth lock, E-scooter brake lock, high pressure car wash gun, lawn mower, automatic car washer,etc.

Arc Lever Micro Switch IP67 with 3 Solder Terminals

Kangerle miniature sealed micro switch WS1-10A-4A is equipped with a long arc lever and 3 solder terminals. After wiring, this IP67 waterproof switch ensures reliable operation with rubber and epoxy resin sealing, providing strong protection against water and dust. It also comes with various wiring terminals and lever options for adaptable use.



Product Series: WS1 Waterproof Micro Switch
Application: charging gun, car door lock, car seat belt lock, electric tailgate lock, shared bike bluetooth lock, E-scooter brake lock, high pressure car wash gun, lawn mower, automatic car washer,etc.

PRODUCT DETAIL

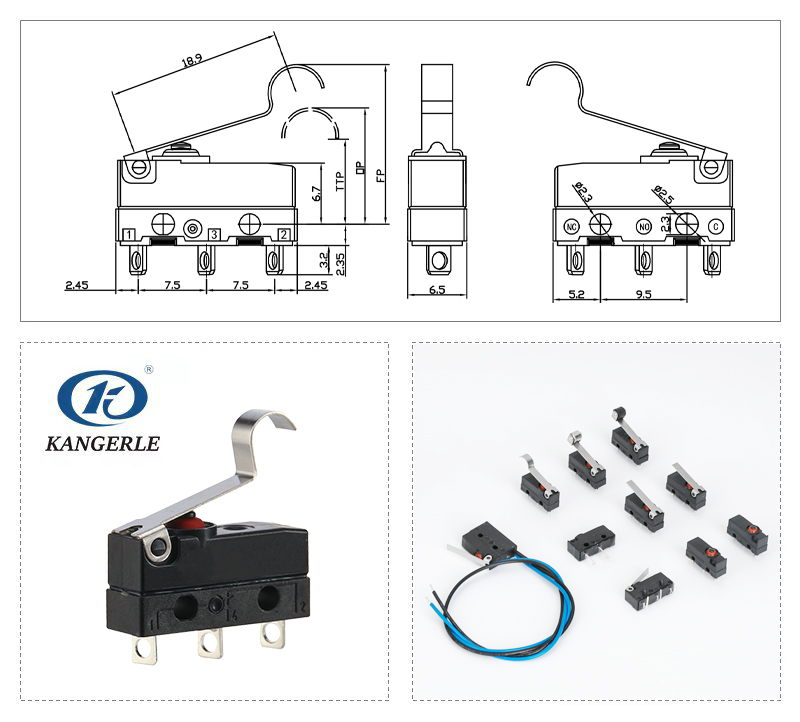

Arc Lever Micro Switch IP67 with 3 Solder Terminals插图

Chinakel WS1 Waterproof Micro Switch Feature

Rated Load 5/10A  125/250V AC
Temperature 25T125
Operating Force ≤350gf(regular)
Circuit SPDT/SPST NO/SPST NC
Contact Resistance ≤500mΩ
Insulation Resistance ≥100MΩ(DC500V)
Withstand Voltage ≥100VAC
Protection Level IP67(wiring)
Electrical Life ≥10,000/50,000 cycles
Mechanical Life ≥1,000,000cycles
Certification CQC/CB
