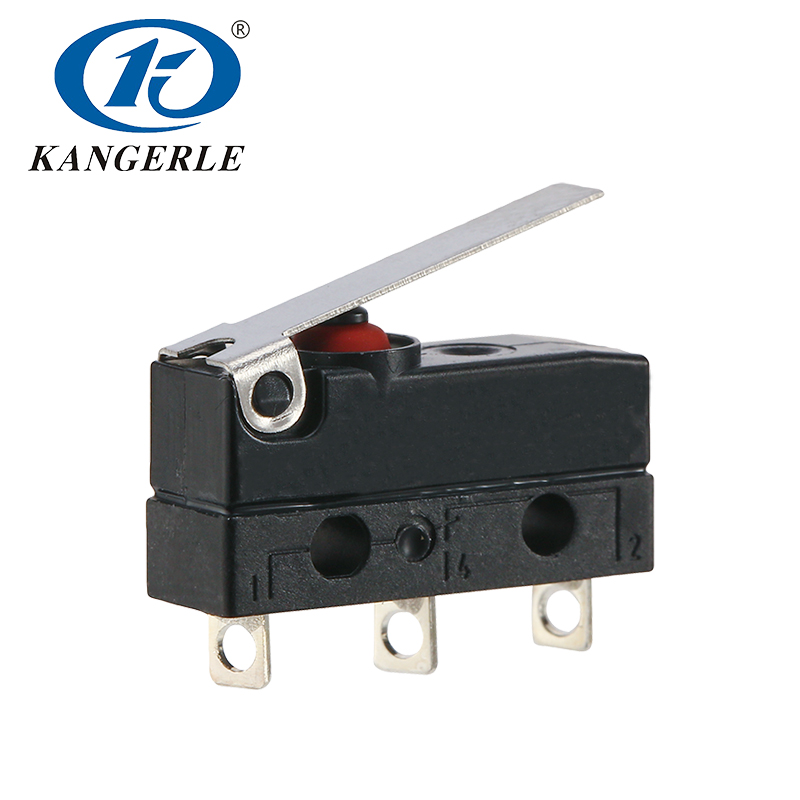

Waterproof micro switch WS1-10A-1A

Waterproof micro switch WS1 achieves stable sealing performance through rubber sealing rings and epoxy resin filling. After wiring, it can reach IP67 waterproof and dustproof protection. This series of switches has a wide range of wiring terminals and is also equipped with different types of levers. A variety of wires and outlet methods for wires are available.

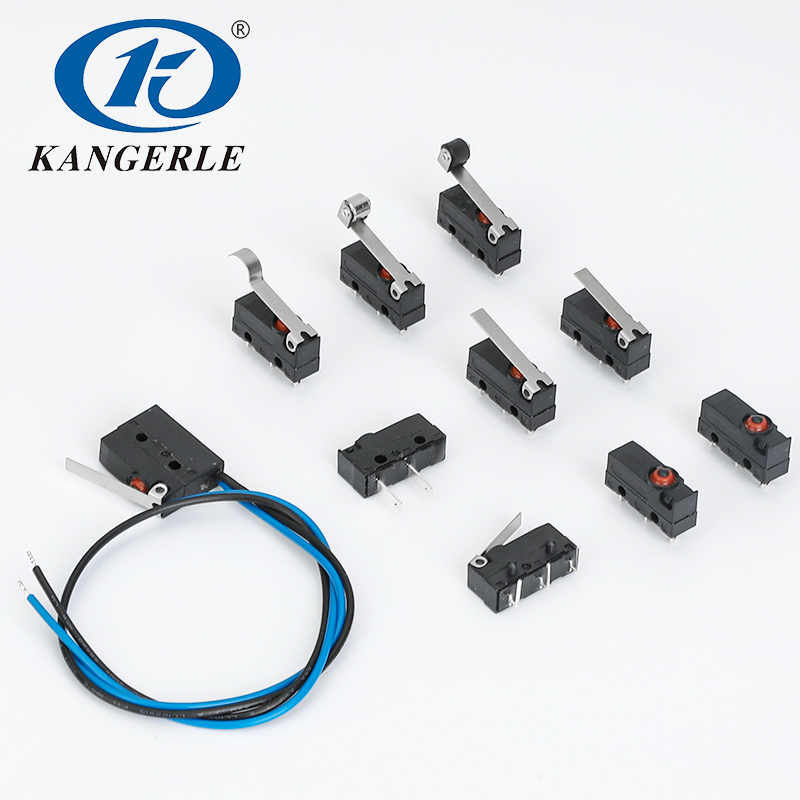

Product Series: WS1 Waterproof Micro Switch
Application: charging gun, car door lock, car seat belt lock, electric tailgate lock, shared bike bluetooth lock, E-scooter brake lock, high pressure car wash gun, lawn mower, automatic car washer,etc.

Waterproof micro switch WS1-10A-1A

Waterproof micro switch WS1 achieves stable sealing performance through rubber sealing rings and epoxy resin filling. After wiring, it can reach IP67 waterproof and dustproof protection. This series of switches has a wide range of wiring terminals and is also equipped with different types of levers. A variety of wires and outlet methods for wires are available.



Product Series: WS1 Waterproof Micro Switch
Application: charging gun, car door lock, car seat belt lock, electric tailgate lock, shared bike bluetooth lock, E-scooter brake lock, high pressure car wash gun, lawn mower, automatic car washer,etc.

Waterproof micro switch WS1-10A-1A

Waterproof micro switch WS1 achieves stable sealing performance through rubber sealing rings and epoxy resin filling. After wiring, it can reach IP67 waterproof and dustproof protection. This series of switches has a wide range of wiring terminals and is also equipped with different types of levers. A variety of wires and outlet methods for wires are available.



Product Series: WS1 Waterproof Micro Switch
Application: charging gun, car door lock, car seat belt lock, electric tailgate lock, shared bike bluetooth lock, E-scooter brake lock, high pressure car wash gun, lawn mower, automatic car washer,etc.

Waterproof micro switch WS1-10A-1A

Waterproof micro switch WS1 achieves stable sealing performance through rubber sealing rings and epoxy resin filling. After wiring, it can reach IP67 waterproof and dustproof protection. This series of switches has a wide range of wiring terminals and is also equipped with different types of levers. A variety of wires and outlet methods for wires are available.



Product Series: WS1 Waterproof Micro Switch
Application: charging gun, car door lock, car seat belt lock, electric tailgate lock, shared bike bluetooth lock, E-scooter brake lock, high pressure car wash gun, lawn mower, automatic car washer,etc.

PRODUCT DETAIL

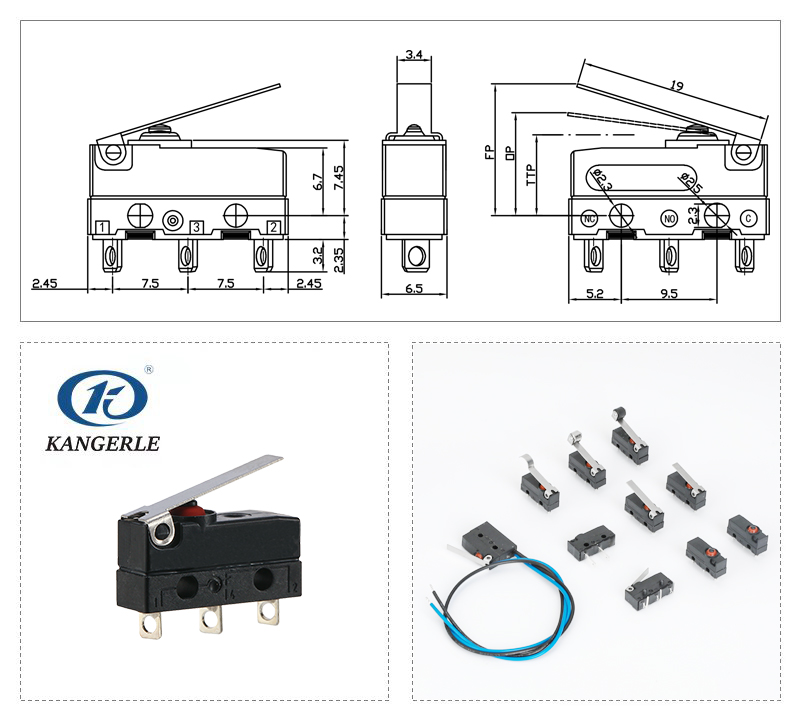

Waterproof micro switch WS1-10A-1A插图

hinakel WS1 Waterproof Micro Switch Feature

Rated Load 5/10A  125/250V AC
Temperature 25T125
Operating Force ≤350gf(regular)
Circuit SPDT/SPST NO/SPST NC
Contact Resistance ≤500mΩ
Insulation Resistance ≥100MΩ(DC500V)
Withstand Voltage ≥100VAC
Protection Level IP67(wiring)
Electrical Life ≥10,000/50,000 cycles
Mechanical Life ≥1,000,000cycles
Certification CQC/CB
