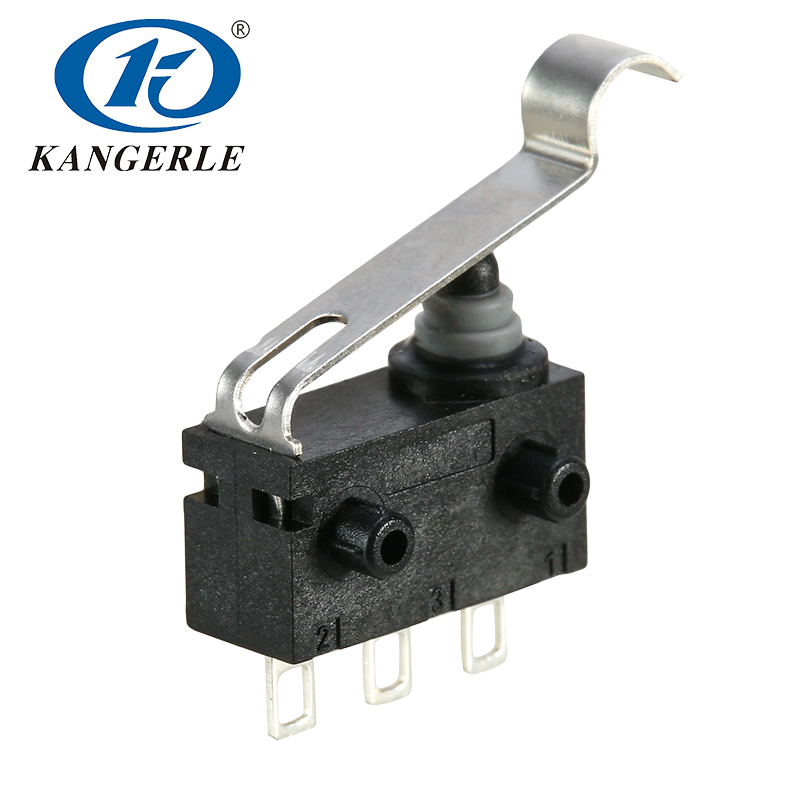

Waterproof Micro Switch KW4-1A-4A-B3

KW4 is an SPDT micro switch with a waterproof function, which has a compact structure and a light weight. It can change the the situation of the circuit with a quick and sensitive operation. KW4 series is equipped with many kinds of terminals, levers, and different types of posts. It has a strong sealing performance, which can reach the IP67 waterproof and dustproof protection after wiring.





Product Series: KW4 Waterproof Micro Switch
Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, car central lock, car air conditioner, E-scooter brake lock, shared bikes lock, motorcycle anti-theft device, etc.

Waterproof Micro Switch KW4-1A-4A-B3

KW4 is an SPDT micro switch with a waterproof function, which has a compact structure and a light weight. It can change the the situation of the circuit with a quick and sensitive operation. KW4 series is equipped with many kinds of terminals, levers, and different types of posts. It has a strong sealing performance, which can reach the IP67 waterproof and dustproof protection after wiring.





Product Series: KW4 Waterproof Micro Switch
Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, car central lock, car air conditioner, E-scooter brake lock, shared bikes lock, motorcycle anti-theft device, etc.

Waterproof Micro Switch KW4-1A-4A-B3

KW4 is an SPDT micro switch with a waterproof function, which has a compact structure and a light weight. It can change the the situation of the circuit with a quick and sensitive operation. KW4 series is equipped with many kinds of terminals, levers, and different types of posts. It has a strong sealing performance, which can reach the IP67 waterproof and dustproof protection after wiring.





Product Series: KW4 Waterproof Micro Switch
Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, car central lock, car air conditioner, E-scooter brake lock, shared bikes lock, motorcycle anti-theft device, etc.

Waterproof Micro Switch KW4-1A-4A-B3

KW4 is an SPDT micro switch with a waterproof function, which has a compact structure and a light weight. It can change the the situation of the circuit with a quick and sensitive operation. KW4 series is equipped with many kinds of terminals, levers, and different types of posts. It has a strong sealing performance, which can reach the IP67 waterproof and dustproof protection after wiring.





Product Series: KW4 Waterproof Micro Switch
Application: charging gun, car door lock, electric tailgate lock, automobile ignition controller, car central lock, car air conditioner, E-scooter brake lock, shared bikes lock, motorcycle anti-theft device, etc.

PRODUCT DETAIL

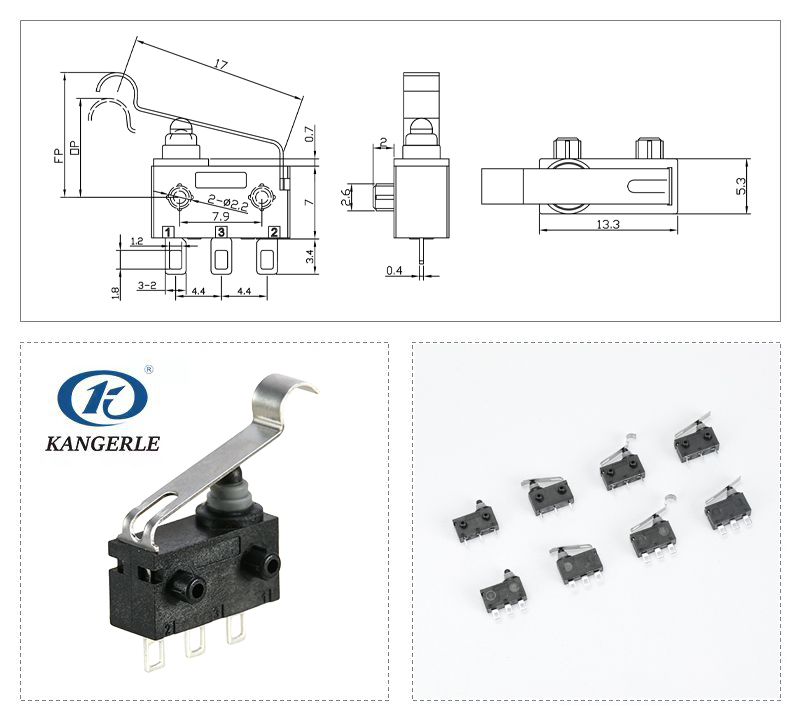

Waterproof Micro Switch KW4-1A-4A-B3插图

Chinakel KW4Waterproof Micro Switch Feature

Rated Load DC12V 0.1A
Temperature -10~60℃
Operating Force ≤150gf (regular)
Circuit SPDT/SPST NO/SPST NC
Contact Resistance ≤500mΩ
Insulation Resistance ≥100MΩ(DC500V)
Withstand Voltage ≥100VAC
Protection Level IP67(wiring)
Electrical Life ≥100,000 cycles
Mechanical Life ≥300,000cycles
