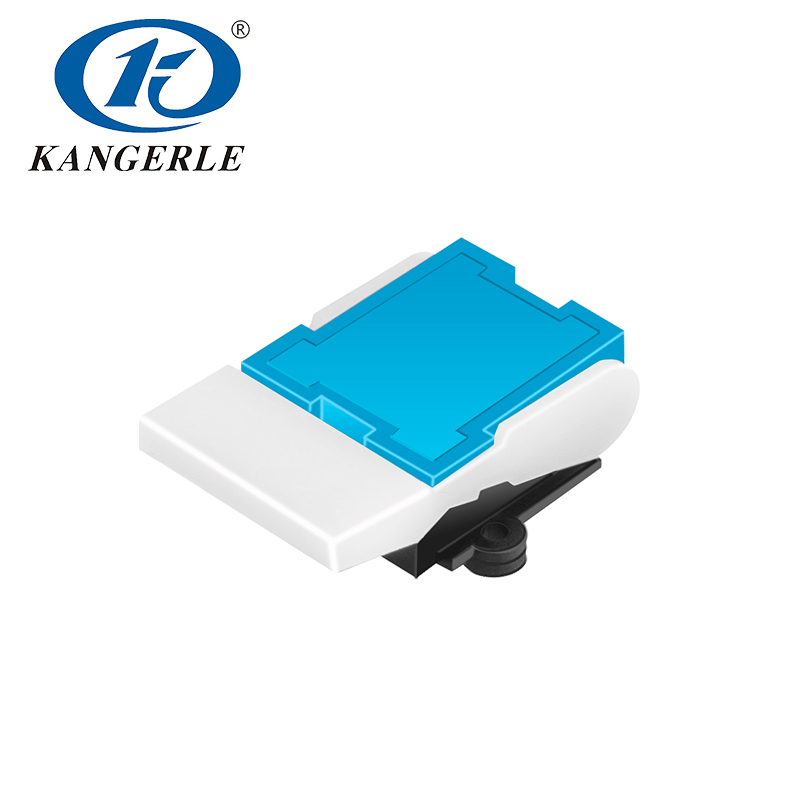

The hook switch KW-5A-5DBL is a compact 6-pin switch designed for reliable performance in telephone applications. With a rated load of 0.2A at DC 48V, it ensures stable and durable switching operations. Its cross-spring mechanism provides precise contact and long service life, making it ideal for frequent use in communication devices. The switch features a simple yet robust structure, ensuring consistent signal transmission and low contact resistance. Suitable for PCB mounting, it offers easy integration into telephone circuits. Conall’s Cross Spring Switch delivers dependable functionality, meeting the demands of modern telecommunication systems.
Product Series: kw-5 series
Product Application: Landline Phone, Microwave Oven, Measuring Instruments.
The hook switch KW-5A-5DBL is a compact 6-pin switch designed for reliable performance in telephone applications. With a rated load of 0.2A at DC 48V, it ensures stable and durable switching operations. Its cross-spring mechanism provides precise contact and long service life, making it ideal for frequent use in communication devices. The switch features a simple yet robust structure, ensuring consistent signal transmission and low contact resistance. Suitable for PCB mounting, it offers easy integration into telephone circuits. Conall’s Cross Spring Switch delivers dependable functionality, meeting the demands of modern telecommunication systems.
Product Series: kw-5 series
Product Application: Landline Phone, Microwave Oven, Measuring Instruments.
The hook switch KW-5A-5DBL is a compact 6-pin switch designed for reliable performance in telephone applications. With a rated load of 0.2A at DC 48V, it ensures stable and durable switching operations. Its cross-spring mechanism provides precise contact and long service life, making it ideal for frequent use in communication devices. The switch features a simple yet robust structure, ensuring consistent signal transmission and low contact resistance. Suitable for PCB mounting, it offers easy integration into telephone circuits. Conall’s Cross Spring Switch delivers dependable functionality, meeting the demands of modern telecommunication systems.
Product Series: kw-5 series
Product Application: Landline Phone, Microwave Oven, Measuring Instruments.
The hook switch KW-5A-5DBL is a compact 6-pin switch designed for reliable performance in telephone applications. With a rated load of 0.2A at DC 48V, it ensures stable and durable switching operations. Its cross-spring mechanism provides precise contact and long service life, making it ideal for frequent use in communication devices. The switch features a simple yet robust structure, ensuring consistent signal transmission and low contact resistance. Suitable for PCB mounting, it offers easy integration into telephone circuits. Conall’s Cross Spring Switch delivers dependable functionality, meeting the demands of modern telecommunication systems.
Product Series: kw-5 series
Product Application: Landline Phone, Microwave Oven, Measuring Instruments.

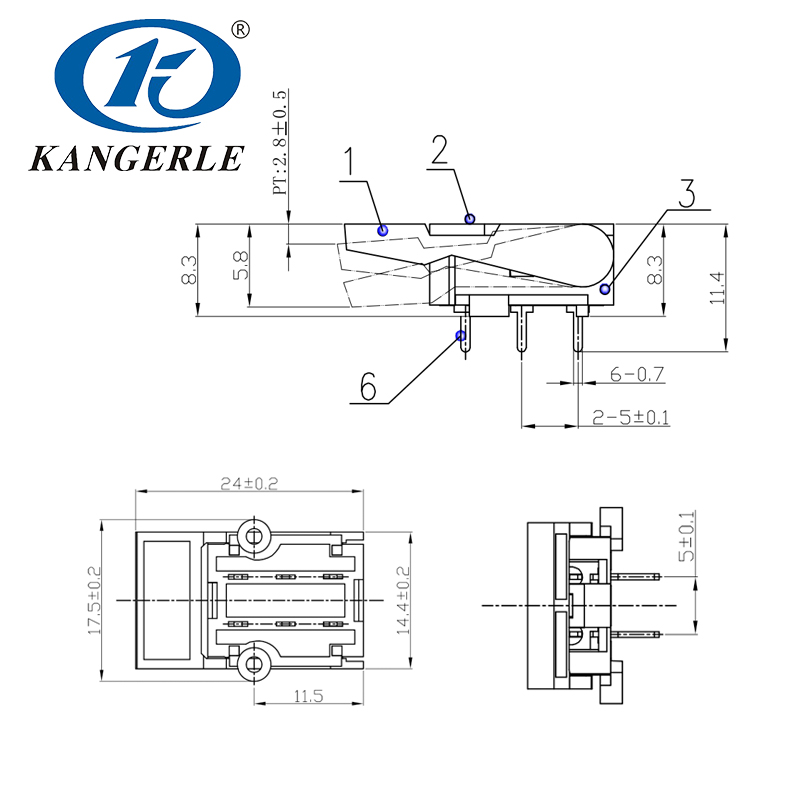

| Rated Load | 0.2A DC48V |
| Operating Temperature | -16~60℃ |
| Operating Force | 45±10gf |
| Circuit | SPDT |
| Contact resistance | ≤50mΩ |
| Insulation resistance | ≥100MΩ |
| Mechanical Life | ≥300,000Cycles |
| Electrical Life | ≥500,000Cycles |
