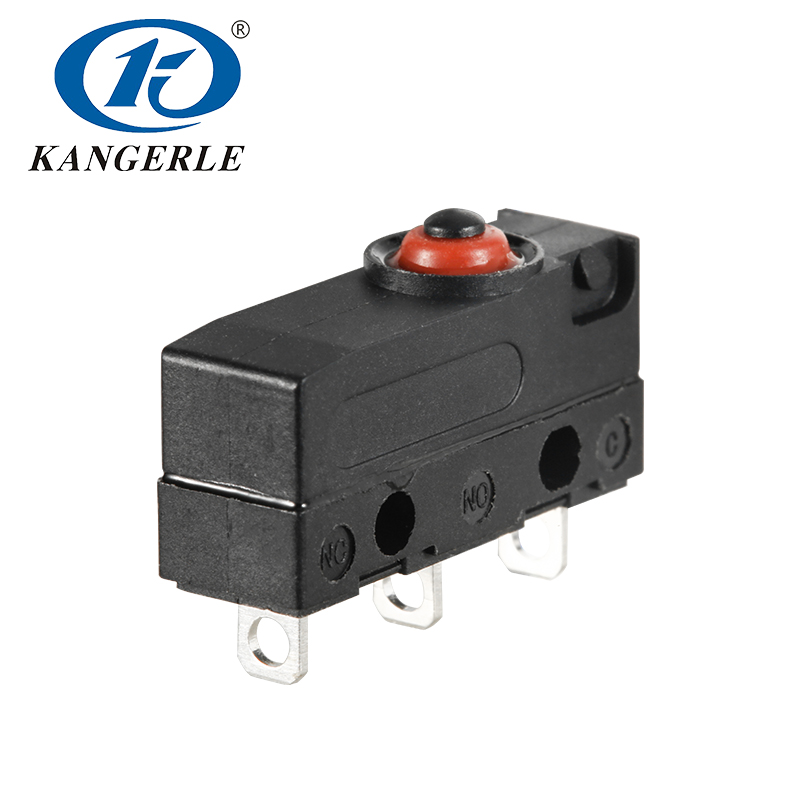

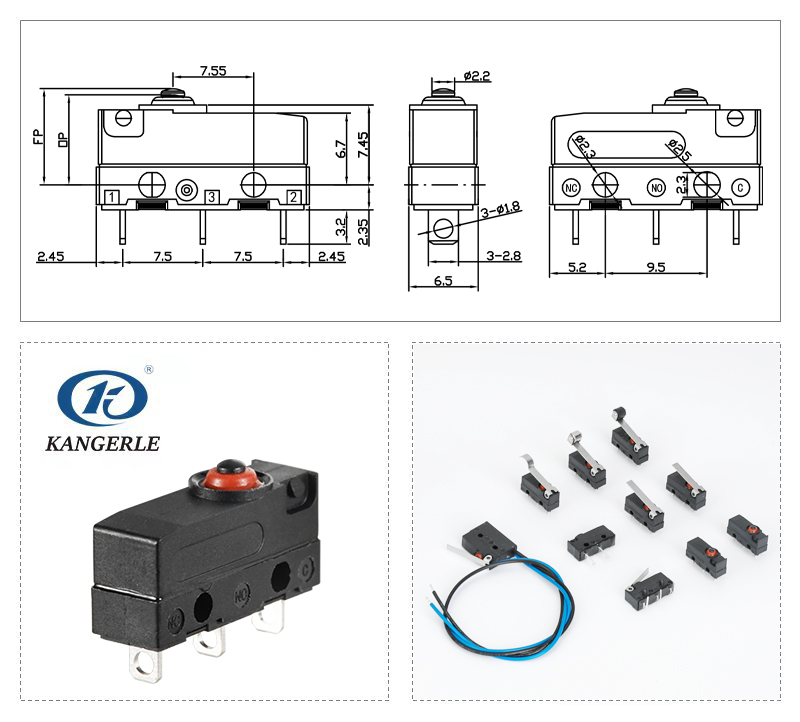

Kangerle WS1-10A-B is a 3 pin push button micro switch offering hermetically sealed design with solder terminal for easy and fast installation. Its compact, high sensitivity, and waterproof features make it suitable for various industrial applications. This WS1 series also features with different types of terminals and levers.
Product Series: WS1 Waterproof Micro Switch
Application: charging gun, car door lock, car seat belt lock, power tools, electric tailgate lock, shared bike bluetooth lock, E-scooter brake lock, high pressure car wash gun, lawn mower, automatic car washer,etc.
Kangerle WS1-10A-B is a 3 pin push button micro switch offering hermetically sealed design with solder terminal for easy and fast installation. Its compact, high sensitivity, and waterproof features make it suitable for various industrial applications. This WS1 series also features with different types of terminals and levers.
Product Series: WS1 Waterproof Micro Switch
Application: charging gun, car door lock, car seat belt lock, power tools, electric tailgate lock, shared bike bluetooth lock, E-scooter brake lock, high pressure car wash gun, lawn mower, automatic car washer,etc.
Kangerle WS1-10A-B is a 3 pin push button micro switch offering hermetically sealed design with solder terminal for easy and fast installation. Its compact, high sensitivity, and waterproof features make it suitable for various industrial applications. This WS1 series also features with different types of terminals and levers.
Product Series: WS1 Waterproof Micro Switch
Application: charging gun, car door lock, car seat belt lock, power tools, electric tailgate lock, shared bike bluetooth lock, E-scooter brake lock, high pressure car wash gun, lawn mower, automatic car washer,etc.
Kangerle WS1-10A-B is a 3 pin push button micro switch offering hermetically sealed design with solder terminal for easy and fast installation. Its compact, high sensitivity, and waterproof features make it suitable for various industrial applications. This WS1 series also features with different types of terminals and levers.
Product Series: WS1 Waterproof Micro Switch
Application: charging gun, car door lock, car seat belt lock, power tools, electric tailgate lock, shared bike bluetooth lock, E-scooter brake lock, high pressure car wash gun, lawn mower, automatic car washer,etc.
| Rated Load | 5/10A 125/250V AC |
| Temperature | 25T125 |
| Operating Force | ≤350gf(regular) |
| Circuit | SPDT/SPST NO/SPST NC |
| Contact Resistance | ≤500mΩ |
| Insulation Resistance | ≥100MΩ（DC500V） |
| Withstand Voltage | ≥100VAC |
| Protection Level | IP67(wiring) |
| Electrical Life | ≥10,000/50,000 cycles |
| Mechanical Life | ≥1,000,000cycles |
| Certification | CQC/CB |
