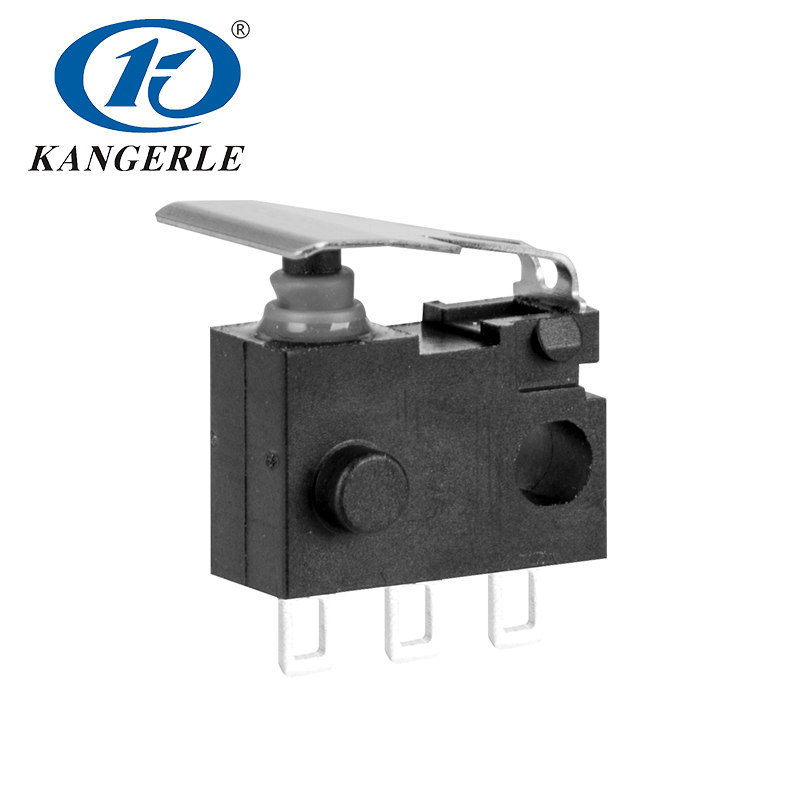

The KW6-1A-10A is an IP67-rated waterproof micro switch featuring SPDT/SPST NC/SPST NO configurations. Operating in -10°C to 60°C environments, it delivers reliable performance with ≤500mΩ contact resistance and ≥100MΩ insulation resistance. Rated for AC 100V/min, this durable switch excels in automotive, industrial, and outdoor applications where moisture and dust resistance are critical. Its robust design ensures stable circuit switching in harsh conditions.
Product Series: KW6 Series.
Applications: Shifter,Car door lock,Headlight controller,etc.
The KW6-1A-10A is an IP67-rated waterproof micro switch featuring SPDT/SPST NC/SPST NO configurations. Operating in -10°C to 60°C environments, it delivers reliable performance with ≤500mΩ contact resistance and ≥100MΩ insulation resistance. Rated for AC 100V/min, this durable switch excels in automotive, industrial, and outdoor applications where moisture and dust resistance are critical. Its robust design ensures stable circuit switching in harsh conditions.
Product Series: KW6 Series.
Applications: Shifter,Car door lock,Headlight controller,etc.
The KW6-1A-10A is an IP67-rated waterproof micro switch featuring SPDT/SPST NC/SPST NO configurations. Operating in -10°C to 60°C environments, it delivers reliable performance with ≤500mΩ contact resistance and ≥100MΩ insulation resistance. Rated for AC 100V/min, this durable switch excels in automotive, industrial, and outdoor applications where moisture and dust resistance are critical. Its robust design ensures stable circuit switching in harsh conditions.
Product Series: KW6 Series.
Applications: Shifter,Car door lock,Headlight controller,etc.
The KW6-1A-10A is an IP67-rated waterproof micro switch featuring SPDT/SPST NC/SPST NO configurations. Operating in -10°C to 60°C environments, it delivers reliable performance with ≤500mΩ contact resistance and ≥100MΩ insulation resistance. Rated for AC 100V/min, this durable switch excels in automotive, industrial, and outdoor applications where moisture and dust resistance are critical. Its robust design ensures stable circuit switching in harsh conditions.
Product Series: KW6 Series.
Applications: Shifter,Car door lock,Headlight controller,etc.
| Rated Load | 0.1A 12VDC |
| Temperature | -10-60℃ |
| Operating Force | ≤ 150gf |
| Circuit | SPDT/SPST NC/SPST NO |
| Contact Resistance | ≤ 500MΩ |
| Withstand Voltage | AC 100V/min |
| Protection Degree | IP67 |
| Insulation Resistance | ≥ 100MΩ |
| Mechanical Life | ≥ 300000 times |
| Electrical Life | ≥ 100000 times |
| KW6 Certification | RoHS |
