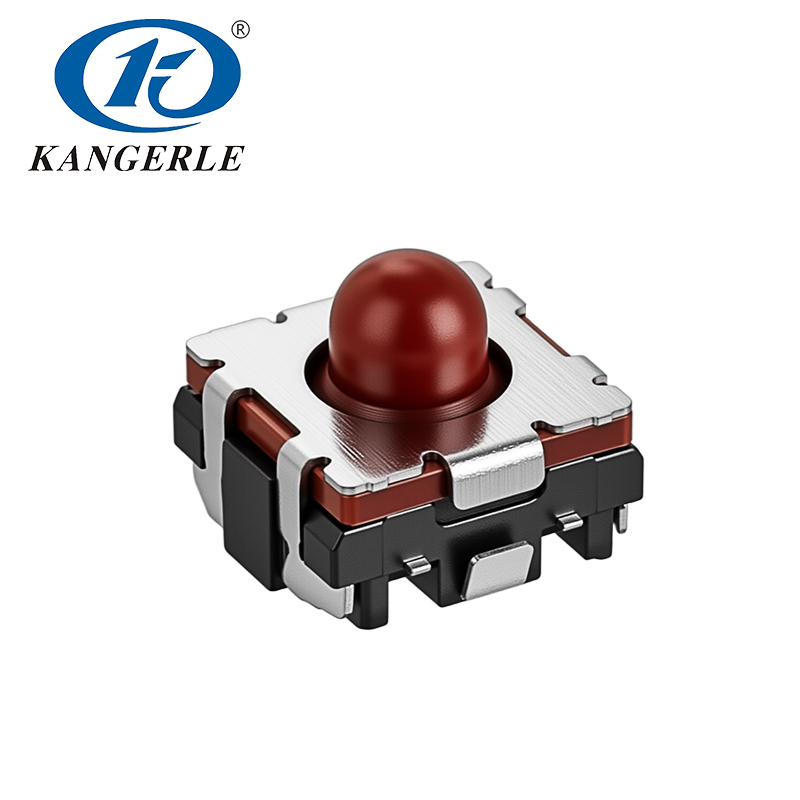

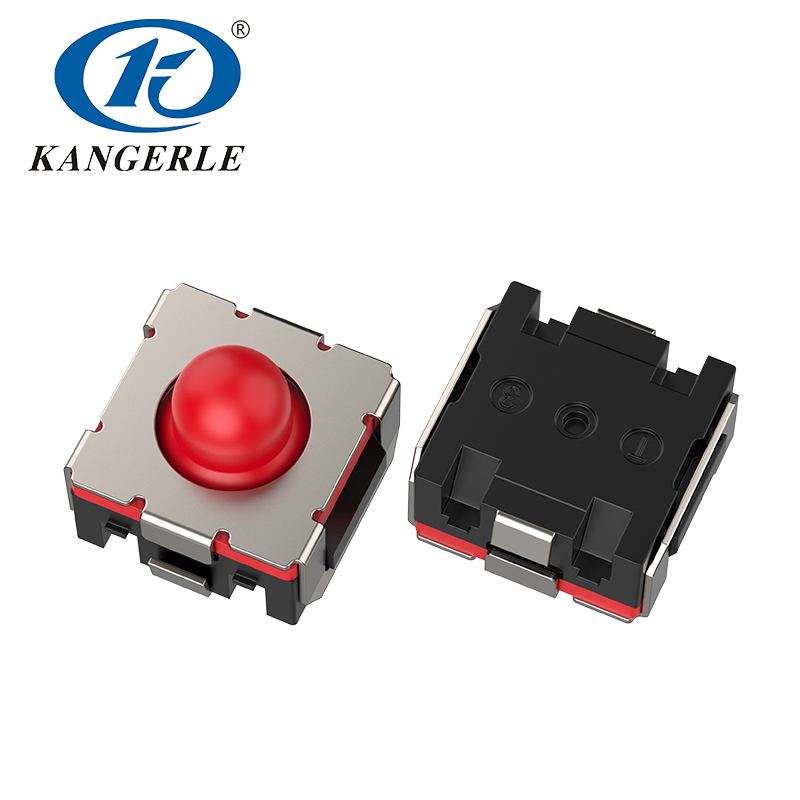

The KEL-E043 IP67-rated tact switch offers 350±50gf operating force and 0.9±0.3mm travel. Rated 50mA/12VDC with ≤100mΩ contact resistance, ≥100MΩ insulation resistance, and 300K mechanical cycles. Withstands 250V/50Hz(1min). Sealed construction for dust/water resistance, ideal for outdoor equipment, industrial controls, and medical devices in harsh conditions.
Product Series: KEL-E Series.
Applications: Car centre console, Steering wheel, Power windows, Tailgate, etc.
The KEL-E043 IP67-rated tact switch offers 350±50gf operating force and 0.9±0.3mm travel. Rated 50mA/12VDC with ≤100mΩ contact resistance, ≥100MΩ insulation resistance, and 300K mechanical cycles. Withstands 250V/50Hz(1min). Sealed construction for dust/water resistance, ideal for outdoor equipment, industrial controls, and medical devices in harsh conditions.
Product Series: KEL-E Series.
Applications: Car centre console, Steering wheel, Power windows, Tailgate, etc.
The KEL-E043 IP67-rated tact switch offers 350±50gf operating force and 0.9±0.3mm travel. Rated 50mA/12VDC with ≤100mΩ contact resistance, ≥100MΩ insulation resistance, and 300K mechanical cycles. Withstands 250V/50Hz(1min). Sealed construction for dust/water resistance, ideal for outdoor equipment, industrial controls, and medical devices in harsh conditions.
Product Series: KEL-E Series.
Applications: Car centre console, Steering wheel, Power windows, Tailgate, etc.
The KEL-E043 IP67-rated tact switch offers 350±50gf operating force and 0.9±0.3mm travel. Rated 50mA/12VDC with ≤100mΩ contact resistance, ≥100MΩ insulation resistance, and 300K mechanical cycles. Withstands 250V/50Hz(1min). Sealed construction for dust/water resistance, ideal for outdoor equipment, industrial controls, and medical devices in harsh conditions.
Product Series: KEL-E Series.
Applications: Car centre console, Steering wheel, Power windows, Tailgate, etc.

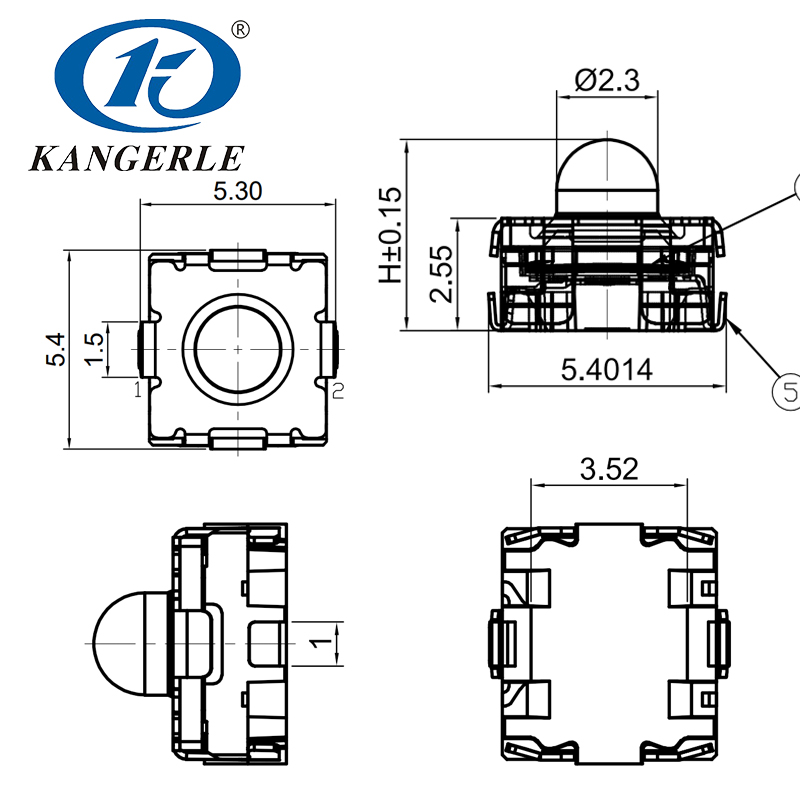

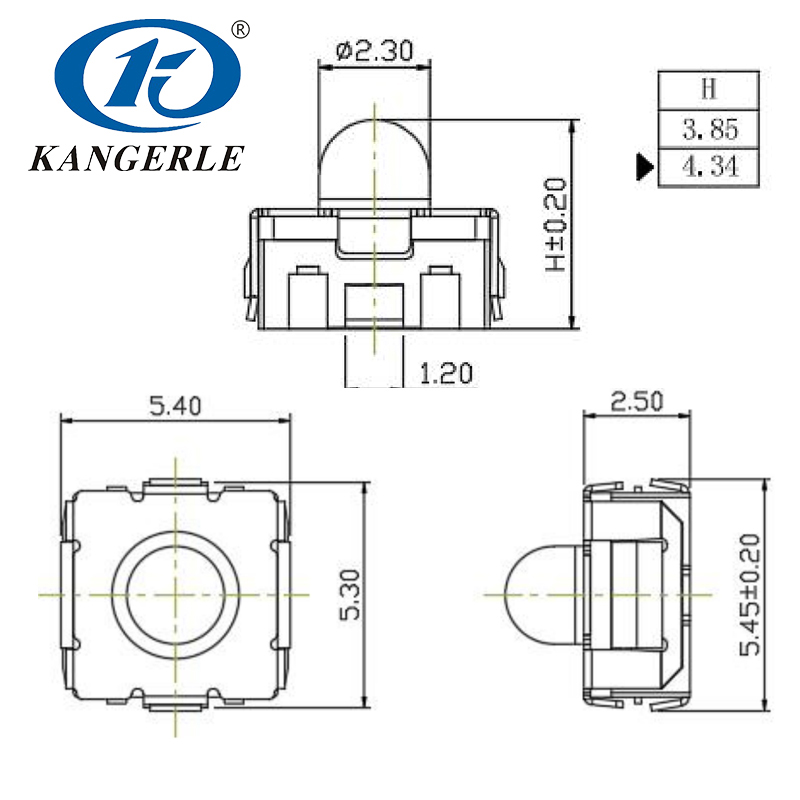

| Rated Load | 50mA DC12V |
| Travel Distance | 0.9±0.3mm |
| Operating Force | 350±50gf |
| Contact Resistance | ≤ 100mΩ |
| Insulation Resistance | ≥ 100MΩ |
| Mechanical Life | 300,000 Cycles |
| Withstand Voltage | 250V 50HZ 1min |
| Protection Grade | IP67 |
