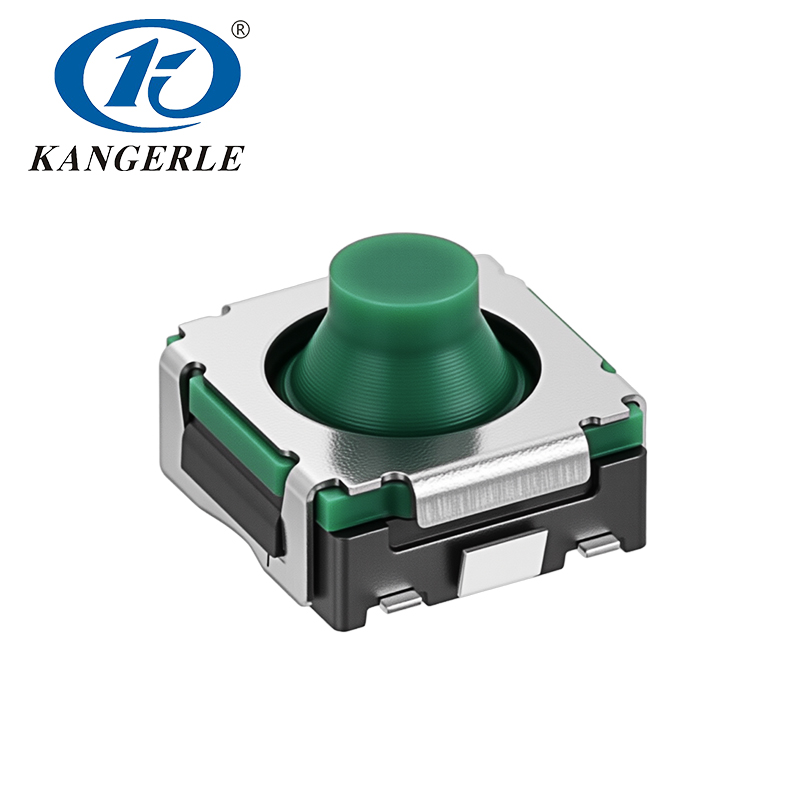

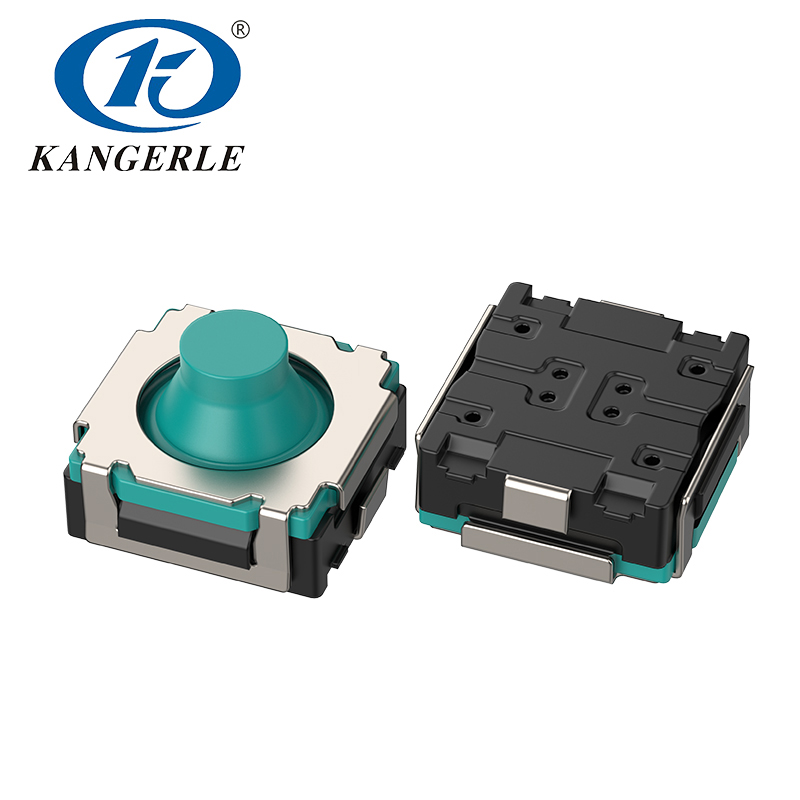

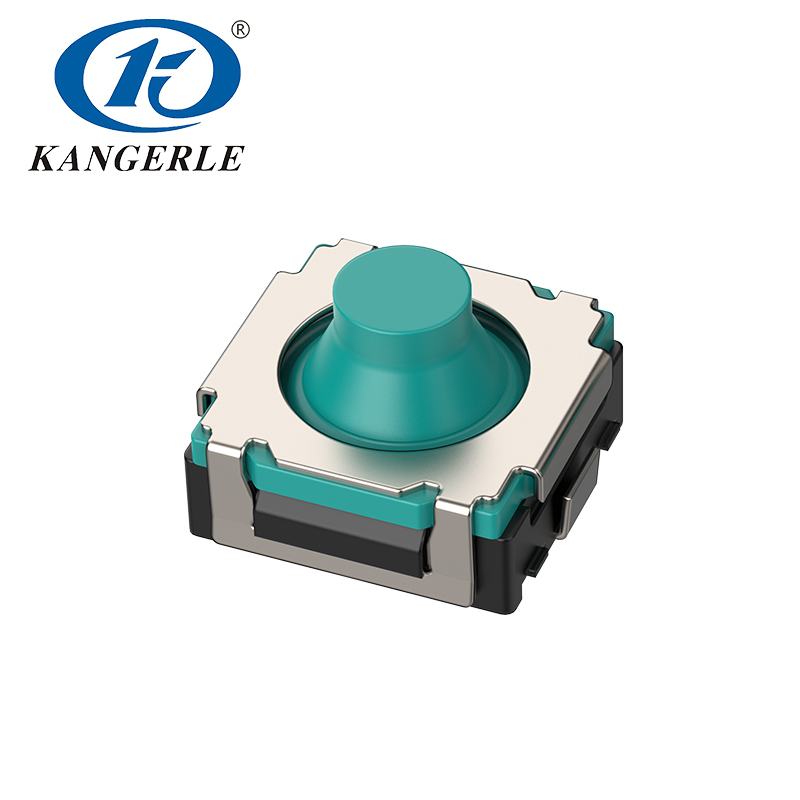

The KEL-E030 is a high-durability tact switch rated for 50mA/12VDC, with 380±50gf operating force and crisp tactile feedback (50±10%). Features 0.75±0.1mm travel, ≤500mΩ contact resistance, ≥100MΩ insulation resistance, 200K mechanical cycles, and 250V/50Hz (1min) withstand voltage. IP67-rated for harsh environment.
Product Series: KEL-E Series.
Applications: Washing machines, Microwaves,etc.
The KEL-E030 is a high-durability tact switch rated for 50mA/12VDC, with 380±50gf operating force and crisp tactile feedback (50±10%). Features 0.75±0.1mm travel, ≤500mΩ contact resistance, ≥100MΩ insulation resistance, 200K mechanical cycles, and 250V/50Hz (1min) withstand voltage. IP67-rated for harsh environment.
Product Series: KEL-E Series.
Applications: Washing machines, Microwaves,etc.
The KEL-E030 is a high-durability tact switch rated for 50mA/12VDC, with 380±50gf operating force and crisp tactile feedback (50±10%). Features 0.75±0.1mm travel, ≤500mΩ contact resistance, ≥100MΩ insulation resistance, 200K mechanical cycles, and 250V/50Hz (1min) withstand voltage. IP67-rated for harsh environment.
Product Series: KEL-E Series.
Applications: Washing machines, Microwaves,etc.
The KEL-E030 is a high-durability tact switch rated for 50mA/12VDC, with 380±50gf operating force and crisp tactile feedback (50±10%). Features 0.75±0.1mm travel, ≤500mΩ contact resistance, ≥100MΩ insulation resistance, 200K mechanical cycles, and 250V/50Hz (1min) withstand voltage. IP67-rated for harsh environment.
Product Series: KEL-E Series.
Applications: Washing machines, Microwaves,etc.
| Rated Load | 50mA DC12V |
| Travel Distance | 0.75±0.1mm |
| Operating Force | 380±50gf |
| Tactile Feel | 50±10% |
| Contact Resistance | ≤ 500mΩ |
| Insulation Resistance | ≥ 100MΩ |
| Mechanical Life | 200,000 Cycles |
| Withstand Voltage | 250V 50HZ 1min |
| Protection Grade | IP67 |
