One Stop Micro Switch Solution

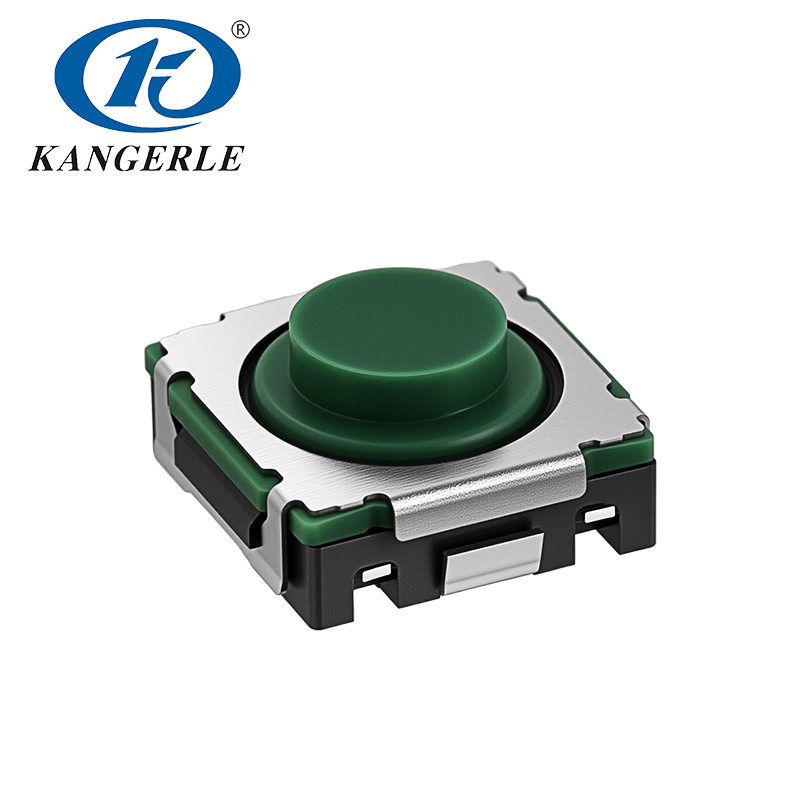

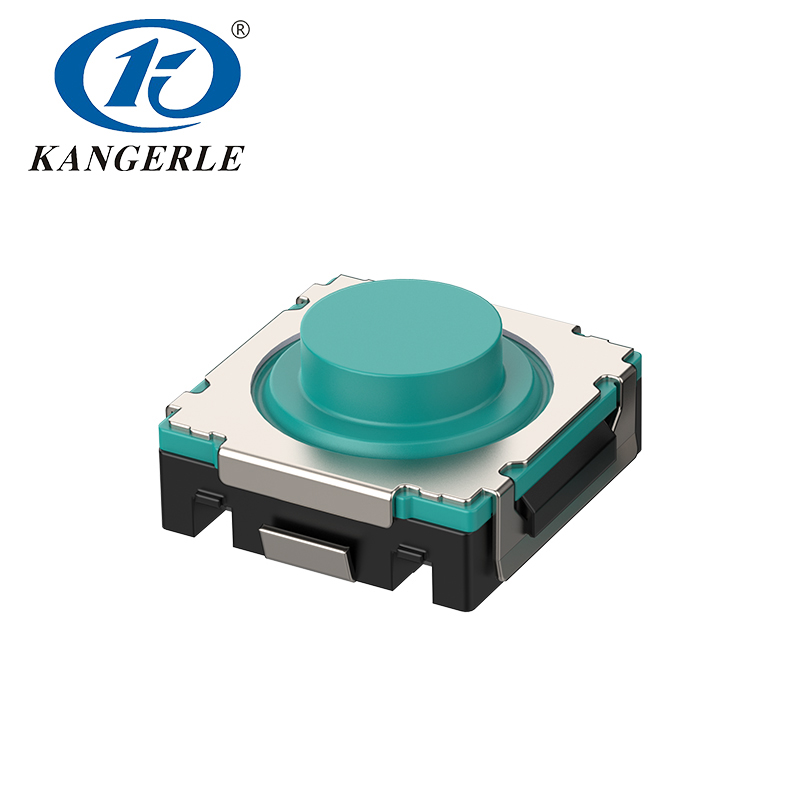

The KEL-E041 tact switch features 400/700/1000±50gf operating force, 0.75/0.9±0.2mm travel, and 100k-500k cycles lifespan. Rated 50mA/12VDC with ≤50mΩ contact resistance, ≥100MΩ insulation resistance, withstands 250V/50Hz(1min). Built for harsh industrial applications.
Product Series: KEL-E Series.
Applications: Car centre console, Steering wheel, Power windows, Tailgate, etc.
The KEL-E041 tact switch features 400/700/1000±50gf operating force, 0.75/0.9±0.2mm travel, and 100k-500k cycles lifespan. Rated 50mA/12VDC with ≤50mΩ contact resistance, ≥100MΩ insulation resistance, withstands 250V/50Hz(1min). Built for harsh industrial applications.
Product Series: KEL-E Series.
Applications: Car centre console, Steering wheel, Power windows, Tailgate, etc.
The KEL-E041 tact switch features 400/700/1000±50gf operating force, 0.75/0.9±0.2mm travel, and 100k-500k cycles lifespan. Rated 50mA/12VDC with ≤50mΩ contact resistance, ≥100MΩ insulation resistance, withstands 250V/50Hz(1min). Built for harsh industrial applications.
Product Series: KEL-E Series.
Applications: Car centre console, Steering wheel, Power windows, Tailgate, etc.
The KEL-E041 tact switch features 400/700/1000±50gf operating force, 0.75/0.9±0.2mm travel, and 100k-500k cycles lifespan. Rated 50mA/12VDC with ≤50mΩ contact resistance, ≥100MΩ insulation resistance, withstands 250V/50Hz(1min). Built for harsh industrial applications.
Product Series: KEL-E Series.
Applications: Car centre console, Steering wheel, Power windows, Tailgate, etc.
| Rated Load | 50mA DC12V |
| Travel Distance | 0.75/0.9±0.2mm |
| Operating Force | 400/700/1000±50gf |
| Contact Resistance | ≤ 50mΩ |
| Insulation Resistance | ≥ 100MΩ |
| Mechanical Life | 100,000-500,000 Cycles |
| Withstand Voltage | 250V 50HZ 1min |
