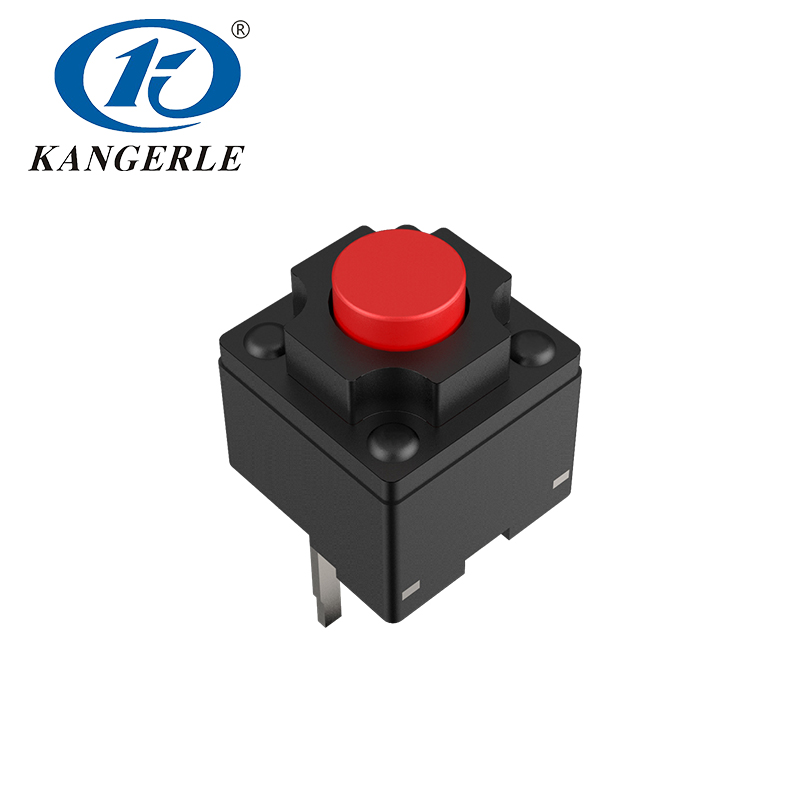

The KEL-E009 is a highly reliable signal switch with a rated load of 50mA/12VDC, ideal for low-current control. Featuring a light actuation force (70±20gf) and NO contact, it offers low initial contact resistance (≤50mΩ) and high insulation resistance (≥100MΩ) for stable performance. Withstand voltage 250V, mechanical life over 5 million cycles, and an operating temperature range of -20~70°C, it suits appliances, electronics, and industrial controls.
Product Series:KEL-E Series.
Applications:Mouse, keyboard, etc.
The KEL-E009 is a highly reliable signal switch with a rated load of 50mA/12VDC, ideal for low-current control. Featuring a light actuation force (70±20gf) and NO contact, it offers low initial contact resistance (≤50mΩ) and high insulation resistance (≥100MΩ) for stable performance. Withstand voltage 250V, mechanical life over 5 million cycles, and an operating temperature range of -20~70°C, it suits appliances, electronics, and industrial controls.
Product Series:KEL-E Series.
Applications:Mouse, keyboard, etc.
The KEL-E009 is a highly reliable signal switch with a rated load of 50mA/12VDC, ideal for low-current control. Featuring a light actuation force (70±20gf) and NO contact, it offers low initial contact resistance (≤50mΩ) and high insulation resistance (≥100MΩ) for stable performance. Withstand voltage 250V, mechanical life over 5 million cycles, and an operating temperature range of -20~70°C, it suits appliances, electronics, and industrial controls.
Product Series:KEL-E Series.
Applications:Mouse, keyboard, etc.
The KEL-E009 is a highly reliable signal switch with a rated load of 50mA/12VDC, ideal for low-current control. Featuring a light actuation force (70±20gf) and NO contact, it offers low initial contact resistance (≤50mΩ) and high insulation resistance (≥100MΩ) for stable performance. Withstand voltage 250V, mechanical life over 5 million cycles, and an operating temperature range of -20~70°C, it suits appliances, electronics, and industrial controls.
Product Series:KEL-E Series.
Applications:Mouse, keyboard, etc.
| Rated Load | 50mA 12VDC |
| Temperature | -20-70°C |
| Operating Force | 70±20gf |
| Circuit | SPST-NO |
| Contact Resistance | ≤ 50mΩ initial value |
| Insulation Resistance | ≥ 100MΩ |
| Mechanical Life | ≥ 5,000,000 cycles |
| Withstand Voltage | 250V 50HZ 1min |
