Miniature surface-mount micro swicth KW11

Micro switch KW11 is a surface-mount type switch, which features micro contact gap, snap action,  and tiny operation travel. This switch has long eletrical life and reliable quality. It is very suitable for frequently operated applications.

Product Series: KW11 Micro Switch
Application: mouse, game console, electronic  products

Miniature surface-mount micro swicth KW11

Micro switch KW11 is a surface-mount type switch, which features micro contact gap, snap action,  and tiny operation travel. This switch has long eletrical life and reliable quality. It is very suitable for frequently operated applications.

Product Series: KW11 Micro Switch
Application: mouse, game console, electronic  products

Miniature surface-mount micro swicth KW11

Micro switch KW11 is a surface-mount type switch, which features micro contact gap, snap action,  and tiny operation travel. This switch has long eletrical life and reliable quality. It is very suitable for frequently operated applications.

Product Series: KW11 Micro Switch
Application: mouse, game console, electronic  products

Miniature surface-mount micro swicth KW11

Micro switch KW11 is a surface-mount type switch, which features micro contact gap, snap action,  and tiny operation travel. This switch has long eletrical life and reliable quality. It is very suitable for frequently operated applications.

Product Series: KW11 Micro Switch
Application: mouse, game console, electronic  products

PRODUCT DETAIL

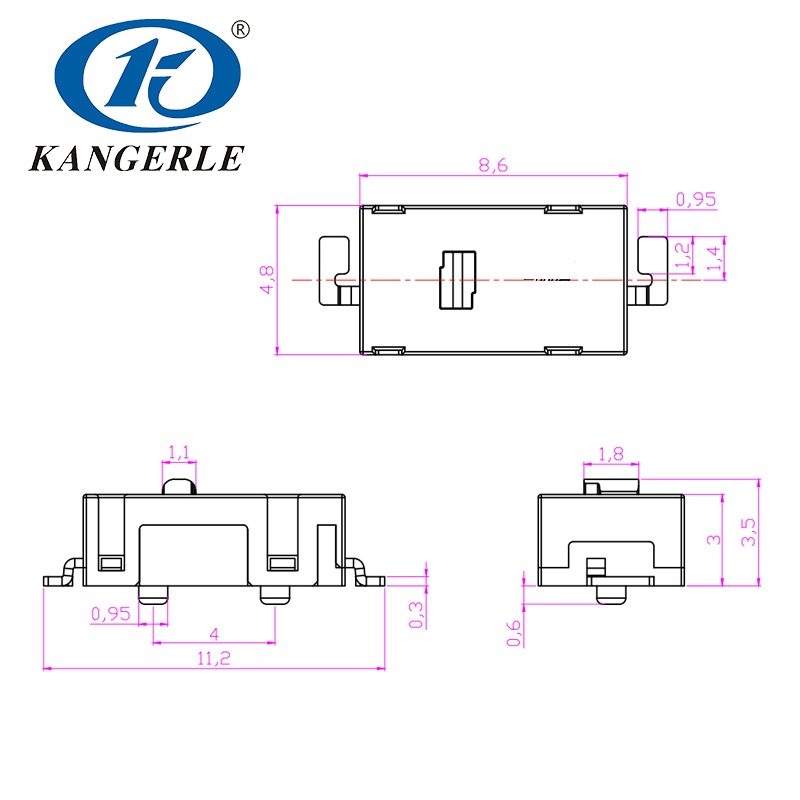

miniature surface-mount micro switches

Chinakel KW11 Micro Switch Feature

Rated Load DC12V 50mA
Circuit SPST
Operating Force 75±10gf
Contact Resistance ≤50mΩ
Insulation Resistance ≥100MΩ
Withstand Voltage  250V 50HZ 1Min.
Life ≥5,000,000 cycles
Certification RoHS
