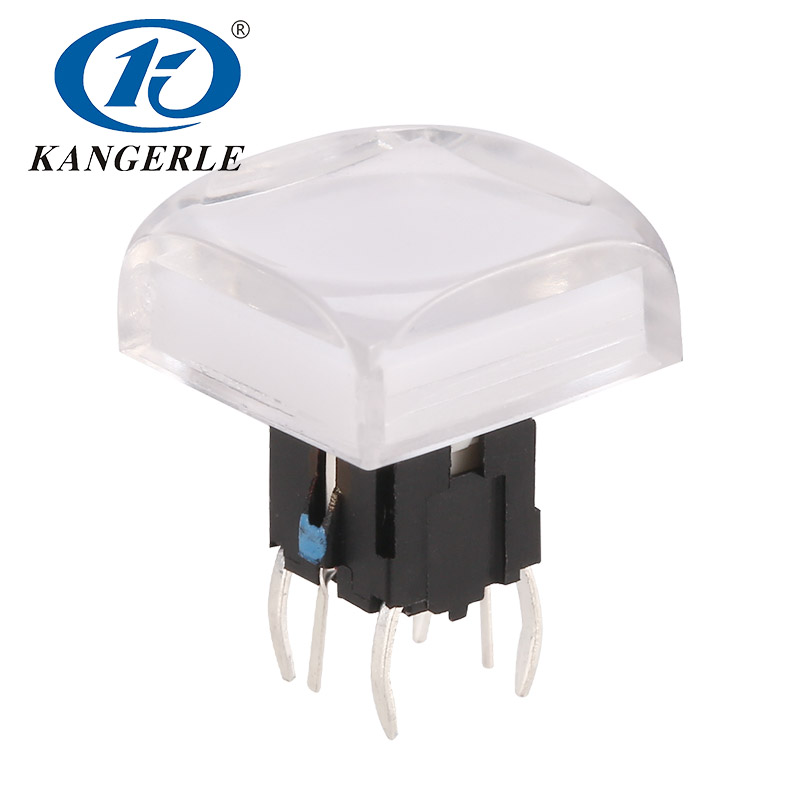

Momentary tact push button mini switch with LED factory

The LED tact switch combines functionality and illumination in a compact design. Ideal for various applications where reliable switching and visual feedback are essential.

illuminated tact switch, led tact switch, momentary tact switch,waterproof tact switch,6×6 tact switch,tact push button switch,tactile push button switch,SMD tact switch, DIP tact switch

Momentary tact push button mini switch with LED factory

The LED tact switch combines functionality and illumination in a compact design. Ideal for various applications where reliable switching and visual feedback are essential.

illuminated tact switch, led tact switch, momentary tact switch,waterproof tact switch,6×6 tact switch,tact push button switch,tactile push button switch,SMD tact switch, DIP tact switch

Momentary tact push button mini switch with LED factory

The LED tact switch combines functionality and illumination in a compact design. Ideal for various applications where reliable switching and visual feedback are essential.

illuminated tact switch, led tact switch, momentary tact switch,waterproof tact switch,6×6 tact switch,tact push button switch,tactile push button switch,SMD tact switch, DIP tact switch

Momentary tact push button mini switch with LED factory

The LED tact switch combines functionality and illumination in a compact design. Ideal for various applications where reliable switching and visual feedback are essential.

illuminated tact switch, led tact switch, momentary tact switch,waterproof tact switch,6×6 tact switch,tact push button switch,tactile push button switch,SMD tact switch, DIP tact switch

PRODUCT DETAIL

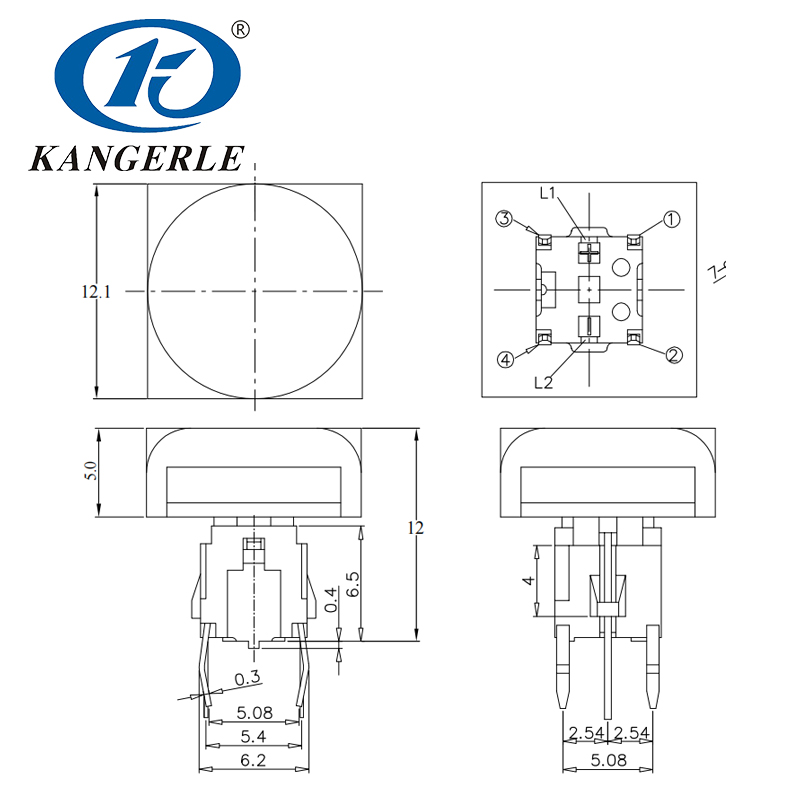

插图

Chinakel LED Tact Switch Feature

Rated Load 50mA DC12VMAX ; 0.1m A 5V D C MIN



Temperature -20~70℃
Operating Force 160±50gf/250±100gf



Circuit NO
Contact Resistance ≤100mΩ
Insulation Resistance ≥100MΩ(DC 500V)
LED Color R/G/B/Y/W/P/RY/RG/RB/YG/RGB…
LED Current ≤20mA
Electrical Life ≥100,000 cycles
Certification RoHS
