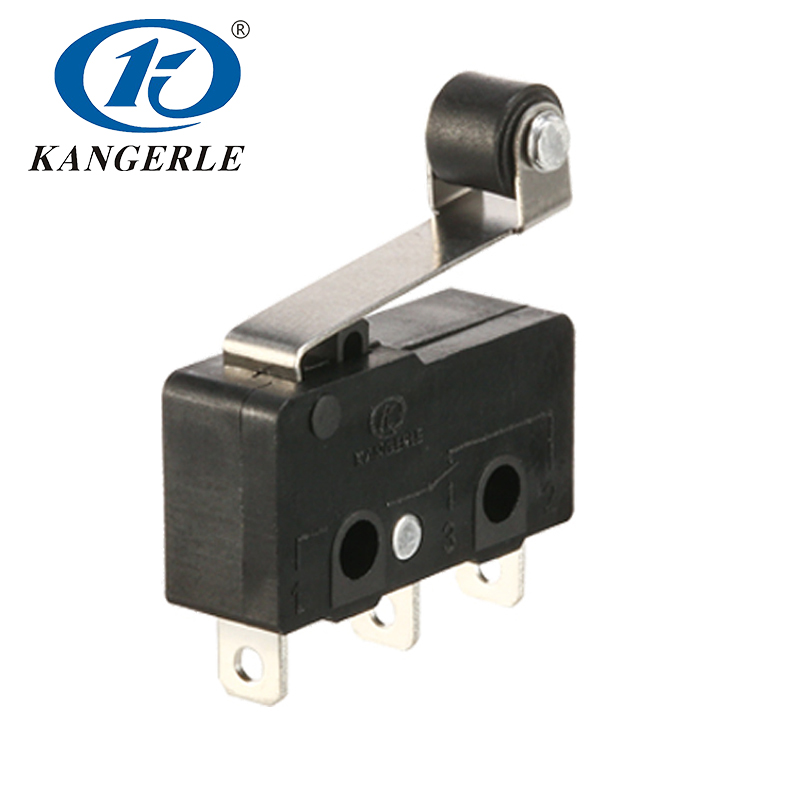

Subminiature Micro switch 3Pins with Plastic Roller Lever

Equipped with a plastic roller lever, micro switch KW12-3A-6A features high sensitivity and snap action. Compact and versatile design, this switch also offers light and heavy operating forces and different terminal types like solder terminal, PCB terminal. Global safety certifications for reliable quality is available.



Product Series: KW12 Micro Switch
Application: disinfection cabinet, meat grinder, gas stove, electric drying rack, water heater, tire inflator, ice machine, juice extractor, electric kettle, etc.

Subminiature Micro switch 3Pins with Plastic Roller Lever

Equipped with a plastic roller lever, micro switch KW12-3A-6A features high sensitivity and snap action. Compact and versatile design, this switch also offers light and heavy operating forces and different terminal types like solder terminal, PCB terminal. Global safety certifications for reliable quality is available.



Product Series: KW12 Micro Switch
Application: disinfection cabinet, meat grinder, gas stove, electric drying rack, water heater, tire inflator, ice machine, juice extractor, electric kettle, etc.

Subminiature Micro switch 3Pins with Plastic Roller Lever

Equipped with a plastic roller lever, micro switch KW12-3A-6A features high sensitivity and snap action. Compact and versatile design, this switch also offers light and heavy operating forces and different terminal types like solder terminal, PCB terminal. Global safety certifications for reliable quality is available.



Product Series: KW12 Micro Switch
Application: disinfection cabinet, meat grinder, gas stove, electric drying rack, water heater, tire inflator, ice machine, juice extractor, electric kettle, etc.

Subminiature Micro switch 3Pins with Plastic Roller Lever

Equipped with a plastic roller lever, micro switch KW12-3A-6A features high sensitivity and snap action. Compact and versatile design, this switch also offers light and heavy operating forces and different terminal types like solder terminal, PCB terminal. Global safety certifications for reliable quality is available.



Product Series: KW12 Micro Switch
Application: disinfection cabinet, meat grinder, gas stove, electric drying rack, water heater, tire inflator, ice machine, juice extractor, electric kettle, etc.

PRODUCT DETAIL

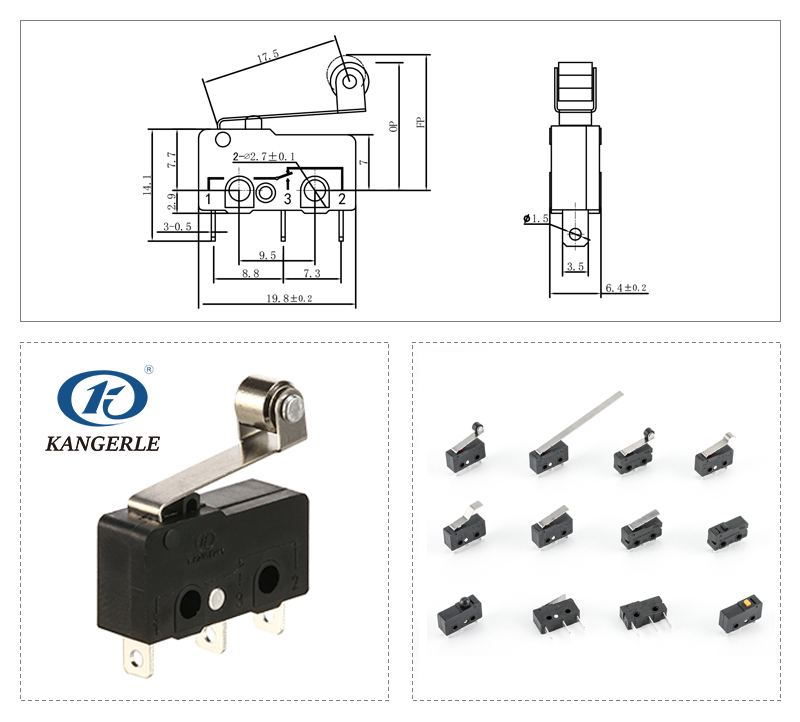

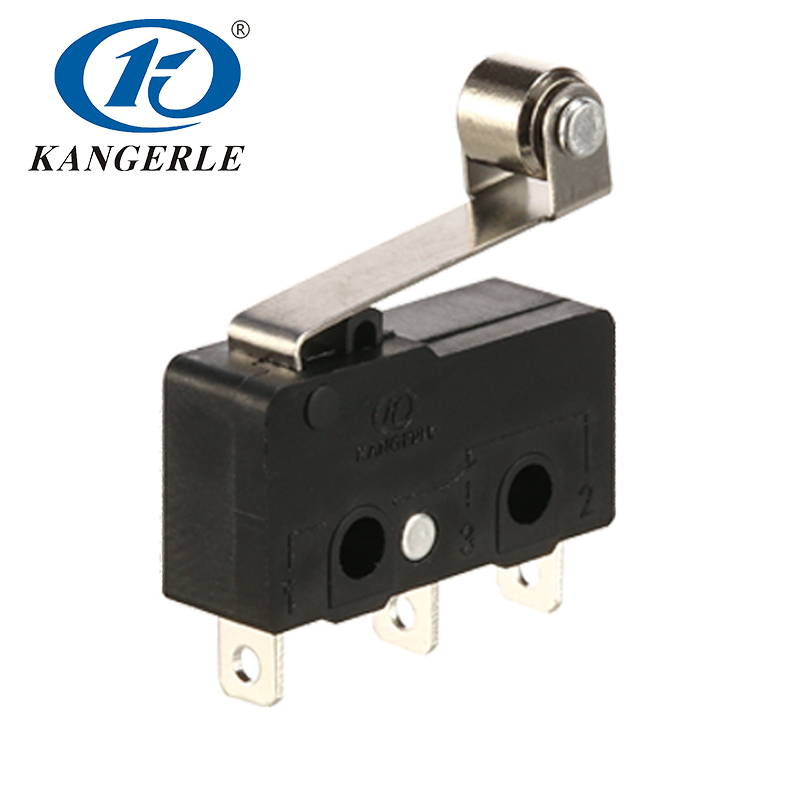

KW12 micro switch with plastic roller

Chinakel KW12 Micro Switch Feature

Rated Load 0.1-10A 125/250VAC;0.1-5A 36VDC
Temperature 25T125
Operating Force 170±30gf
Terminal Type solder terminal/110# quick-connect terminal/PCB terminal …

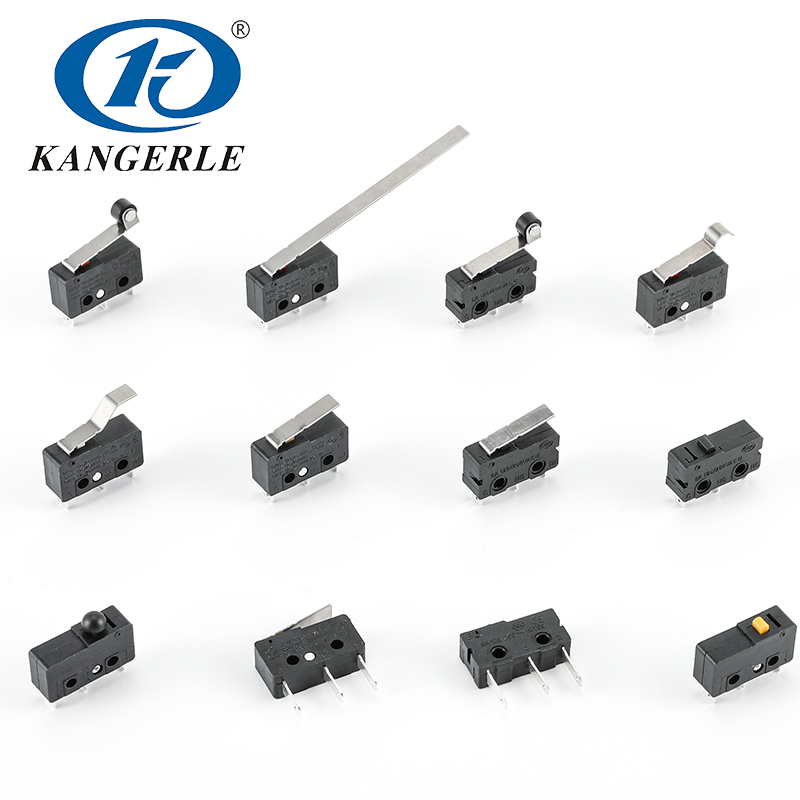

Lever Type no lever/short lever/middle lever/long lever/arc lever/roller lever…
Circuit SPDT/SPST NO/SPST NC
Operating Speed 0.1mm-1m/s
Operating Frequency mechanical 60 cycles/min;electrical 15 cycles/min
Contact Resistance ≤50mΩ (initial value)
Insulation Resistance ≥100MΩ(500VDC,1min)
Withstand Voltage ≥1500VAC,50/60HZ,1min
Electrical Life ≥10,000/50,000 times
Mechanical Life ≥1,000,000 times
Certification UL/TUV/CQC/CE
