The micro switch is a snap action switch that has a micro contact gap. It has the characteristics of small compact size, high sensitivity, and tiny operation travel. There are three types of KW3 micro switch series: SPST-NO, SPST-NC and SPDT, with a wide range of operation forces and equipped with various types of wiring terminals and levers. This switch has a strong current load capacity and long electrical life, which makes it the most commonly used component in power tools and electrical equipment.
Product Series: KW3 Micro Switch
Application: homeappliances, power tools, electronic equipment, automation equipment, communication equipment, automotive electronics, instruments, etc.
Payment Terms: L/C,D/A,D/P,T/T
The micro switch is a snap action switch that has a micro contact gap. It has the characteristics of small compact size, high sensitivity, and tiny operation travel. There are three types of KW3 micro switch series: SPST-NO, SPST-NC and SPDT, with a wide range of operation forces and equipped with various types of wiring terminals and levers. This switch has a strong current load capacity and long electrical life, which makes it the most commonly used component in power tools and electrical equipment.
Product Series: KW3 Micro Switch
Application: homeappliances, power tools, electronic equipment, automation equipment, communication equipment, automotive electronics, instruments, etc.
Payment Terms: L/C,D/A,D/P,T/T
The micro switch is a snap action switch that has a micro contact gap. It has the characteristics of small compact size, high sensitivity, and tiny operation travel. There are three types of KW3 micro switch series: SPST-NO, SPST-NC and SPDT, with a wide range of operation forces and equipped with various types of wiring terminals and levers. This switch has a strong current load capacity and long electrical life, which makes it the most commonly used component in power tools and electrical equipment.
Product Series: KW3 Micro Switch
Application: homeappliances, power tools, electronic equipment, automation equipment, communication equipment, automotive electronics, instruments, etc.
Payment Terms: L/C,D/A,D/P,T/T
The micro switch is a snap action switch that has a micro contact gap. It has the characteristics of small compact size, high sensitivity, and tiny operation travel. There are three types of KW3 micro switch series: SPST-NO, SPST-NC and SPDT, with a wide range of operation forces and equipped with various types of wiring terminals and levers. This switch has a strong current load capacity and long electrical life, which makes it the most commonly used component in power tools and electrical equipment.
Product Series: KW3 Micro Switch
Application: homeappliances, power tools, electronic equipment, automation equipment, communication equipment, automotive electronics, instruments, etc.
Payment Terms: L/C,D/A,D/P,T/T

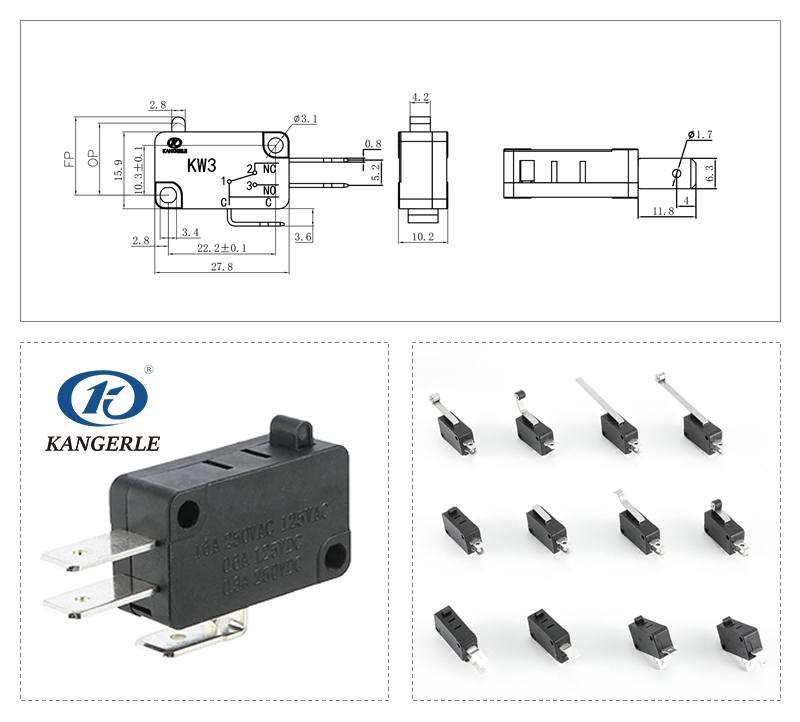

Chinakel KW3 Micro Switch Feature
| Rated Load | 0.1-16A 125/250VAC；0.1-10A 36VDC |
| Temperature | T105/25T125 |
| Operating Force | 200±30/100±20/30±10gf… |
| Terminal Type | 187#0.8/187#0.5/250/solder… |

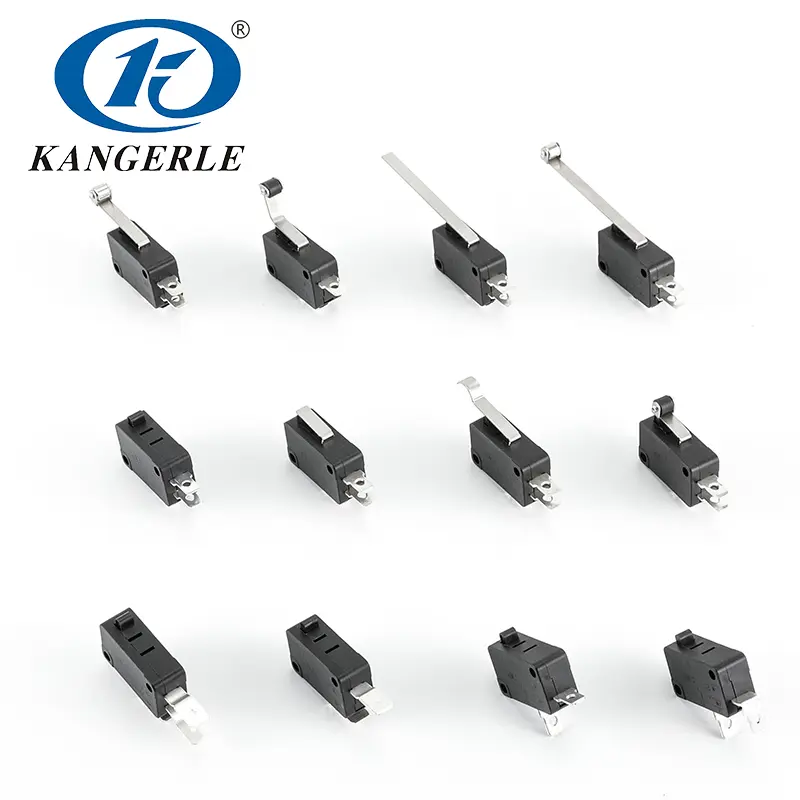

| Lever Type | no lever/short lever/middle lever/long lever/arc lever/roller lever… |
| Circuit | SPDT/SPST NO/SPST NC |
| Operating Speed | 0.1mm-1m/s |
| Operating Frequency | mechanical 60 cycles/min；electrical 15 cycles/min |
| Contact Resistance | ≤50mΩ (initial value) |
| Insulation Resistance | ≥100MΩ(500VDC,1min) |
| Withstand Voltage | ≥1500VAC,50/60HZ,1min |
| Electrical Life | ≥10,000/50,000 次 |
| Mechanical Life | ≥1,000,000 次 |
| Certification | UL/TUV/CQC/CE |
