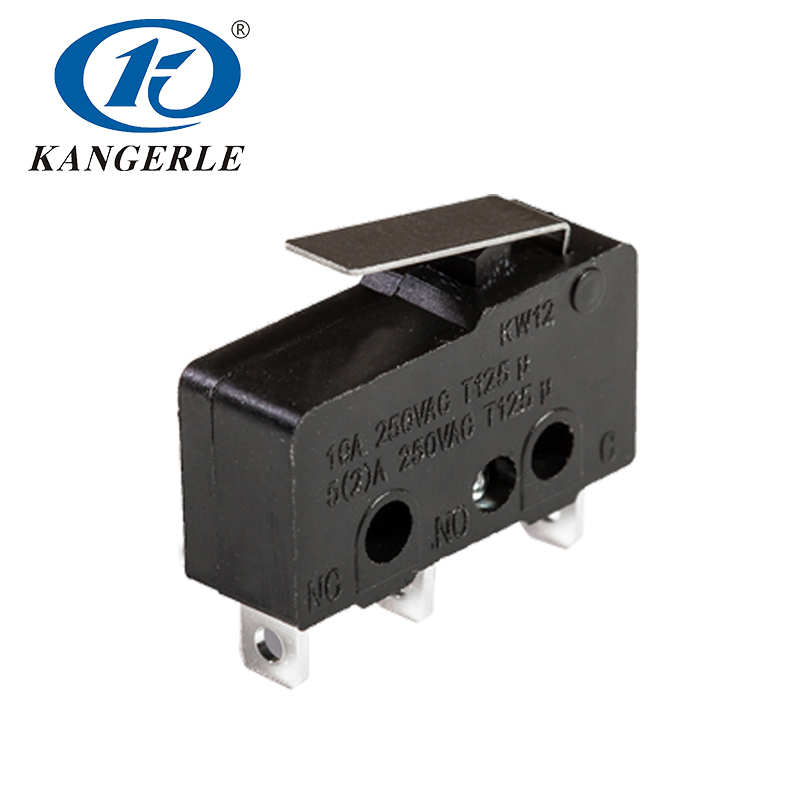

25T125 Micro Lever Switch with 3 Terminals

Compact and reliable, this switch features a micro contact gap, snap action, straight metal lever(12.3mm) and high sensitivity. With a variety of movable lever arms and terminals, it supports loads up to 10A at 250VAC, backed by global safety certifications.



Product Series: KW12 Micro Switch
Application: disinfection cabinet, meat grinder, gas stove, electric drying rack, water heater, tire inflator, ice machine, juice extractor, electric kettle, etc.

25T125 Micro Lever Switch with 3 Terminals

Compact and reliable, this switch features a micro contact gap, snap action, straight metal lever(12.3mm) and high sensitivity. With a variety of movable lever arms and terminals, it supports loads up to 10A at 250VAC, backed by global safety certifications.



Product Series: KW12 Micro Switch
Application: disinfection cabinet, meat grinder, gas stove, electric drying rack, water heater, tire inflator, ice machine, juice extractor, electric kettle, etc.

25T125 Micro Lever Switch with 3 Terminals

Compact and reliable, this switch features a micro contact gap, snap action, straight metal lever(12.3mm) and high sensitivity. With a variety of movable lever arms and terminals, it supports loads up to 10A at 250VAC, backed by global safety certifications.



Product Series: KW12 Micro Switch
Application: disinfection cabinet, meat grinder, gas stove, electric drying rack, water heater, tire inflator, ice machine, juice extractor, electric kettle, etc.

25T125 Micro Lever Switch with 3 Terminals

Compact and reliable, this switch features a micro contact gap, snap action, straight metal lever(12.3mm) and high sensitivity. With a variety of movable lever arms and terminals, it supports loads up to 10A at 250VAC, backed by global safety certifications.



Product Series: KW12 Micro Switch
Application: disinfection cabinet, meat grinder, gas stove, electric drying rack, water heater, tire inflator, ice machine, juice extractor, electric kettle, etc.

PRODUCT DETAIL

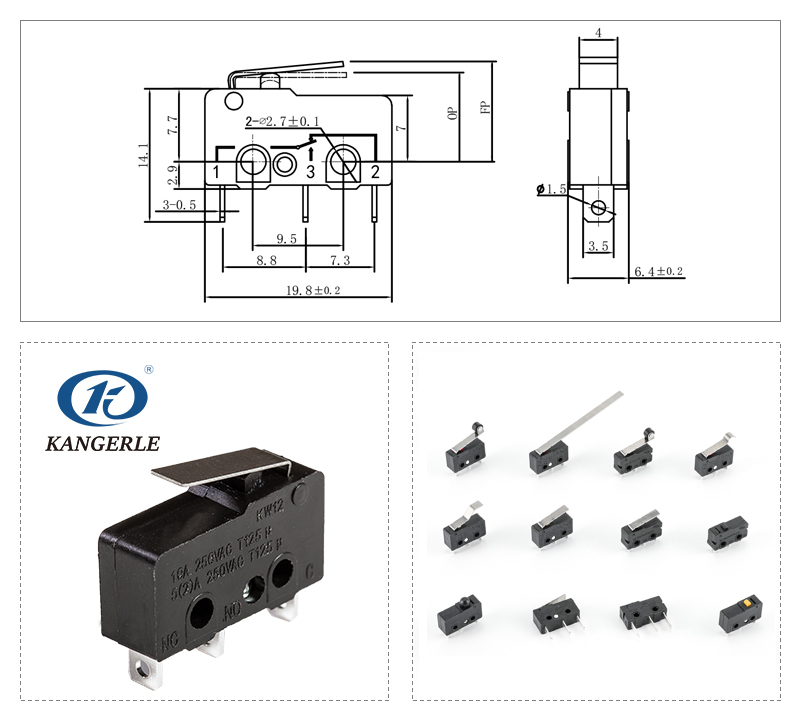

25T125 Micro Lever Switch with 3 Terminals插图

Chinakel KW12 Micro Switch Feature

Rated Load 0.1-10A 125/250VAC;0.1-5A 36VDC
Temperature 25T125
Operating Force 170±30gf
Terminal Type solder terminal/110# quick-connect terminal/PCB terminal …
Lever Type no lever/short lever/middle lever/long lever/arc lever/roller lever…
Circuit SPDT/SPST NO/SPST NC
Operating Speed 0.1mm-1m/s
Operating Frequency mechanical 60 cycles/min;electrical 15 cycles/min
Contact Resistance ≤50mΩ (initial value)
Insulation Resistance ≥100MΩ(500VDC,1min)
Withstand Voltage ≥1500VAC,50/60HZ,1min
Electrical Life ≥10,000/50,000 times
Mechanical Life ≥1,000,000 times
Certification UL/TUV/CQC/CE
